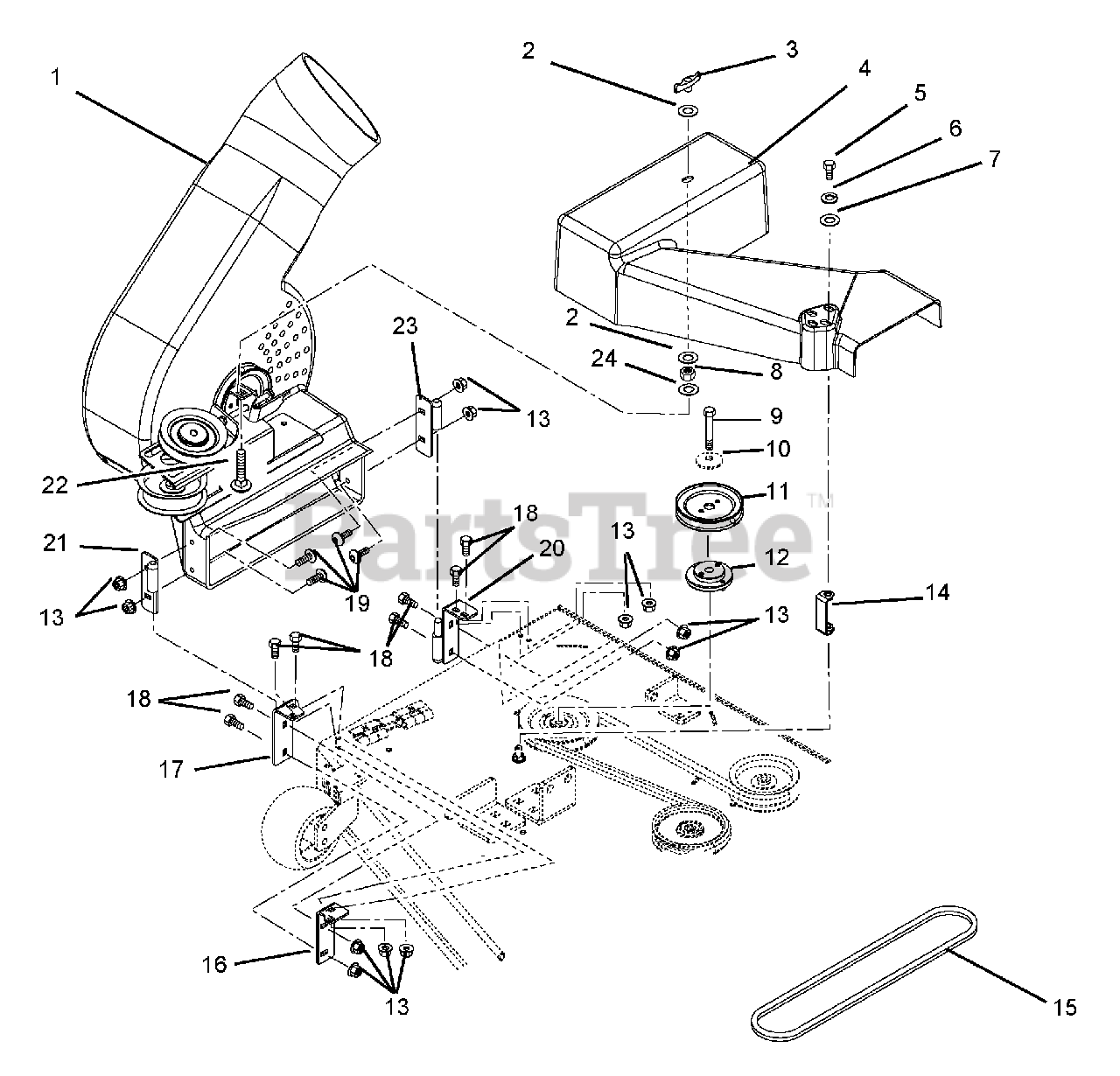

815014 - Ariens Mini-Zoom Bagger (SN: 000500 & Above) Blower Assembly To Mower Deck Parts Diagram

Mini-Zoom Bagger

Blower Assembly To Mower Deck Parts Diagram

  • Title
1

Ariens 51511700

BLOWER HSG W/DECAL
(Superseded to 51586600)

$234.72

$

Usually ships in 4-12 days

0

2

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.08

$

In Stock, Qty 12

0

3

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$9.89

$

In Stock, Qty 5

0

4

Ariens 51511600

BELT COVER W/DECAL

$143.16

$

Usually ships in 4-12 days

0

5

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$2.18

$

In Stock, only 3 left!

0

6

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$2.52

$

In Stock, Qty 20+

0

7

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$2.24

$

In Stock, Qty 20+

0

8

Ariens 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$2.24

$

In Stock, Qty 19

0

9

Ariens 05980600

BLT-HEX .38-16X1.75 GR8 M-EPYZ

$3.58

$

Usually ships in 4-12 days

0

10

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

Note: (comes with mower deck)

$3.63

$

In Stock, Qty 10

0

11

Ariens 00169500

SHEAVE, 3.00 DIA.

Note: (40-Inch Mower Deck)

$20.07

$

Usually ships in 4-12 days

0

11

Ariens 00169600

SHEAVE, 4.00 DIA.

Note: (34-Inch Mower Deck)

$20.07

$

In Stock, only 2 left!

0

12

Ariens 00169800

ASSEMBLY, SHEAVE ADAPTER

$124.38

$

In Stock, only 2 left!

0

13

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.96

$

In Stock, Qty 20+

0

14

Ariens 00595800

SPACER, COVER

$36.89

$

Usually ships in 4-12 days

0

15

Ariens 07212800

V-BELT, HA-WRAPPED

Note: (035896 - Gravely Part Number)

$34.55

$

In Stock, only 1 left!

0

16

Ariens 00169151

BRACKET, FRONT

$29.68

$

Usually ships in 4-12 days

0

17

Ariens 00168800

WELDMENT, FRONT MOUNT BRACKET

$76.42

$

Usually ships in 4-12 days

0

18

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.79

$

In Stock, Qty 13

0

19

Ariens 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$2.24

$

In Stock, Qty 20+

0

20

Ariens 00168600

WELDMENT, REAR MOUNT BRACKET

$75.19

$

Usually ships in 4-12 days

0

21

Ariens 00168900

WELDMENT, HOUSING MOUNT RH

$70.77

$

Usually ships in 4-12 days

0

22

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$2.80

$

In Stock, only 4 left!

0

23

Ariens 00169000

WELDMENT, HOUSING MOUNT LH

$86.98

$

Usually ships in 4-12 days

0

24

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$2.52

$

In Stock, Qty 14

0
