815015 - Ariens Zoom 3-Bucket Grass Bagger (SN: 000101 & Above) Counterweight Assembly Parts Diagram

Zoom 3-Bucket Grass Bagger

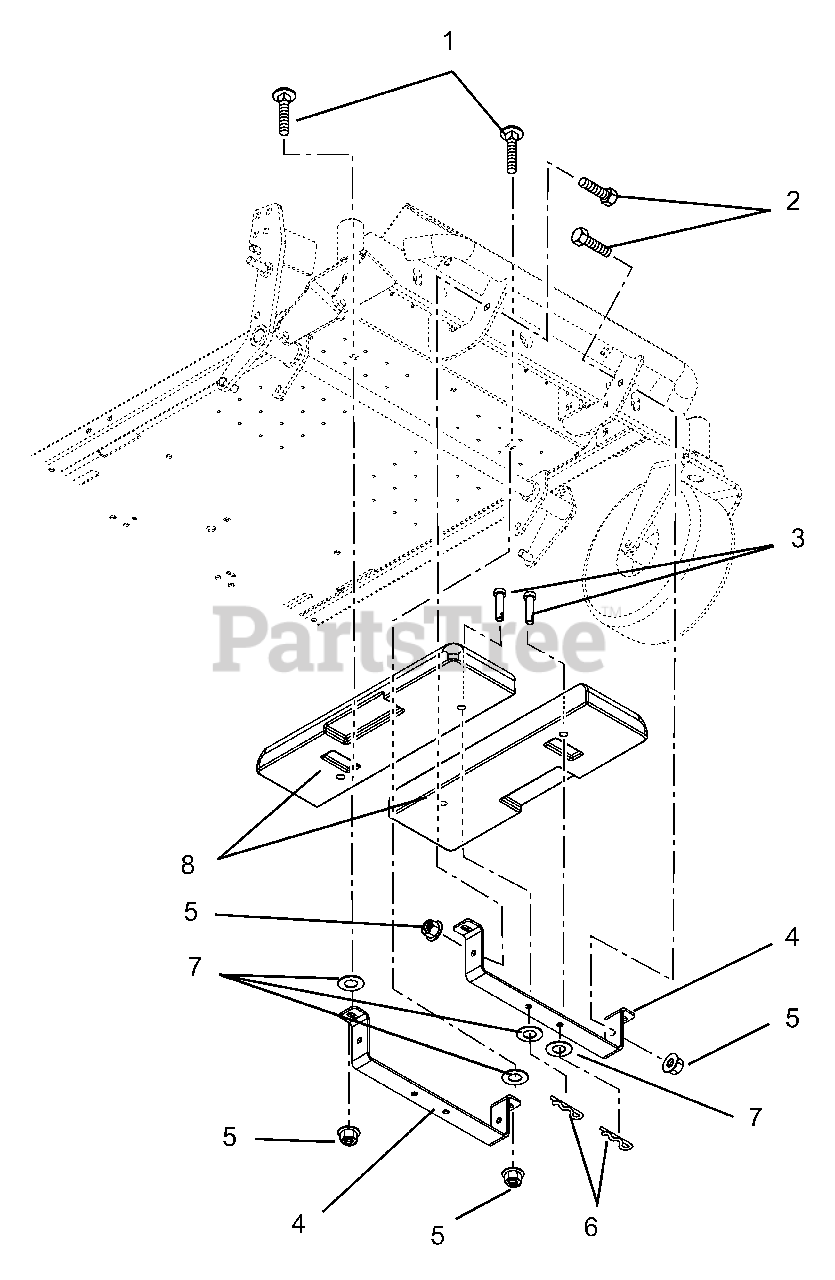

Counterweight Assembly Parts Diagram

  • Title

1

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

2

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06810700

PIN-CLEV .494X2.50 BRIGHT ZINC

$3.99

$

In Stock, only 4 left!

0

3

Ariens 041754

PIN-CLEV .494X2.50 BRIGHT ZINC
(Superseded to 06810700)

Note: (Gravely Part Number)

$3.99

$

In Stock, only 4 left!

0

4

Ariens 01601851

BRACKET,WEIGHT

$28.99

$

Usually ships in 4-12 days

0

5

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$2.99

$

In Stock, only 3 left!

0

7

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, Qty 20+

0

8

Ariens 00172000

WEIGHT, CAST IRON

$284.99

$

Usually ships in 4-12 days

0
