815016 - Gravely Mini ZT Non-Powered Bagger (SN: 000101 & Above) Bagger Cover Assembly Parts Diagram

Mini ZT Non-Powered Bagger

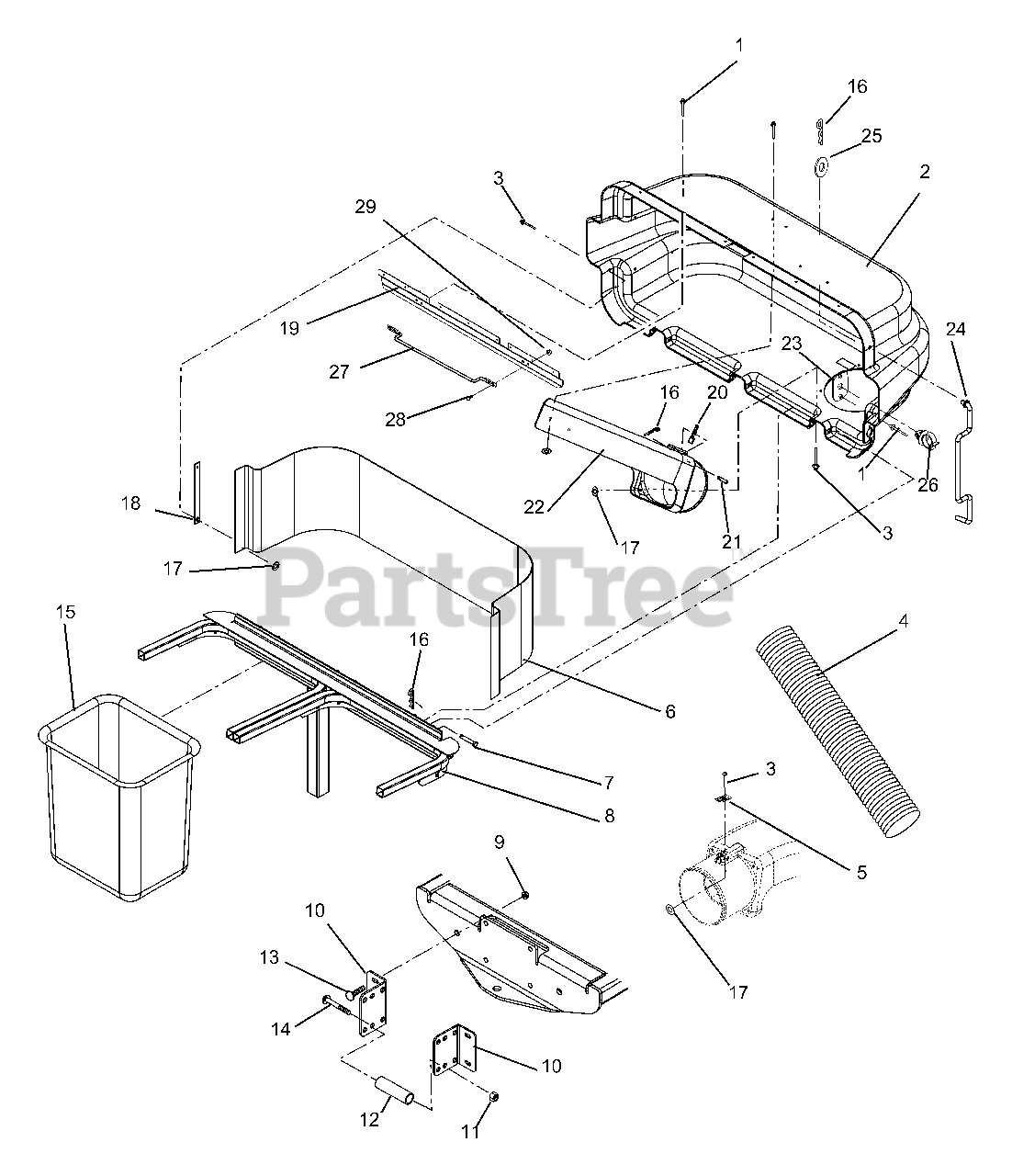

Bagger Cover Assembly Parts Diagram

  • Title

1

Gravely 06802500

Rivet-Pop .187 x .402

$1.49

$

In Stock, Qty 11

0

2

Gravely 51513500

Cover, Bagger with Decal

$475.99

$

Usually ships in 4-12 days

0

3

Gravely 06807600

Rivet-Pop .187 x .375

$

$

Not available

4

Gravely 00455400

Hose 7 x 45
(Superseded to 04222900)

$113.99

$

Usually ships in 4-12 days

0

5

Gravely 07000026

Thumb Latch

$9.49

$

In Stock, Qty 9

0

6

Gravely 00166900

Screen, Bagger

$39.99

$

Usually ships in 4-12 days

0

7

Gravely 02747500

Pin-Clevis .368/.373 x 3.25

$5.99

$

In Stock, only 2 left!

0

8

Gravely 00279451

Weldment, Bagger Frame

$

$

Not available

9

Gravely 06545500

Nut-Locking-Top-Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 00200051

Bracket, Bagger Mount

$46.99

$

Usually ships in 4-12 days

0

11

Gravely 06543600

Nut-Locking-Top-Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 03433800

Spacer, Pivot

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 06224100

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, Qty 19

0

14

Gravely 05959900

Bolt-Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$4.99

$

In Stock, Qty 8

0

15

Gravely 02724400

Grass Bagger Basket

$79.99

$

In Stock, only 2 left!

0

15

Gravely 038328

(Gravely Part Number)
(Superseded to 02724400)

Note: (Gravely Part Number)

$79.99

$

In Stock, only 2 left!

0

16

Gravely 06714800

Pin-Hair
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

17

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 00377051

Strap, Cover

$6.49

$

Usually ships in 4-12 days

0

19

Gravely 00453151

Latch, Cover

$51.99

$

Usually ships in 4-12 days

0

20

Gravely 00168300

Indicator, Flow

$24.99

$

In Stock, only 1 left!

0

21

Gravely 06815300

Pin-Clevis .31 x 2.62 Grade 5

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 00376800

Boot, Upper

$82.99

$

Usually ships in 4-12 days

0

23

Gravely 00294400

Plate, Rod Clip

$13.99

$

In Stock, only 1 left!

0

24

Gravely 00376900

Prop-Rod, Bagger

$47.99

$

Usually ships in 4-12 days

0

25

Gravely 06436200

Washer-Flat-Steel .046 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 07534100

Clip .38

$9.49

$

In Stock, only 1 left!

0

27

Gravely 00453000

Bagger Handle

$40.99

$

Usually ships in 4-12 days

0

28

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06535000

Nut, Locking Top Flange .25-20
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0
