815016 - Gravely Mini ZT Non-Powered Bagger (SN: 000101 & Above) Boot Assembly Parts Diagram

Mini ZT Non-Powered Bagger

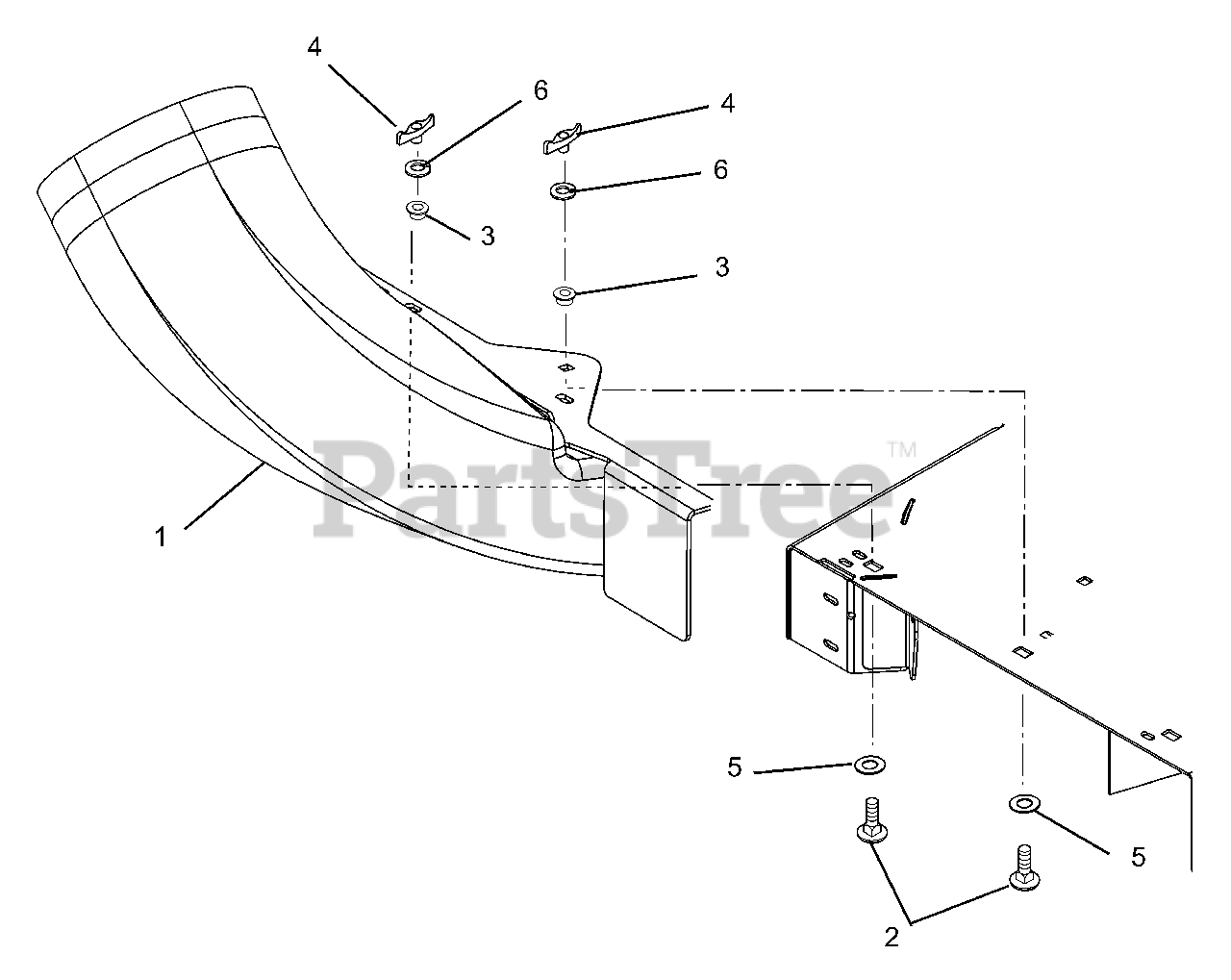

Boot Assembly Parts Diagram

  • Title

1

Gravely 51515400

Boot Assembly

$253.99

$

Usually ships in 4-12 days

0

2

Gravely 06212000

Bolt-Round Head Square Neck .375-16 x 1.0
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 00548400

Push Nut, .375

$1.49

$

In Stock, only 3 left!

0

4

Gravely 07019300

Nut, Wing .375-18
(Superseded to 07500109)

$4.99

$

In Stock, only 2 left!

0

5

Gravely 06441100

Washer, Flat Steel .52 x .827 x .062
(Superseded to 06401114)

$2.49

$

In Stock, Qty 16

0

6

Gravely 06306500

Washer-Locking .375 x .115 Heavy
(Superseded to 06300120)

$3.49

$

In Stock, Qty 10

0
