815018 - Gravely 50" HVZ Bagger (SN: 000101 & Above) Bagger Cover Assembly Parts Diagram

50" HVZ Bagger

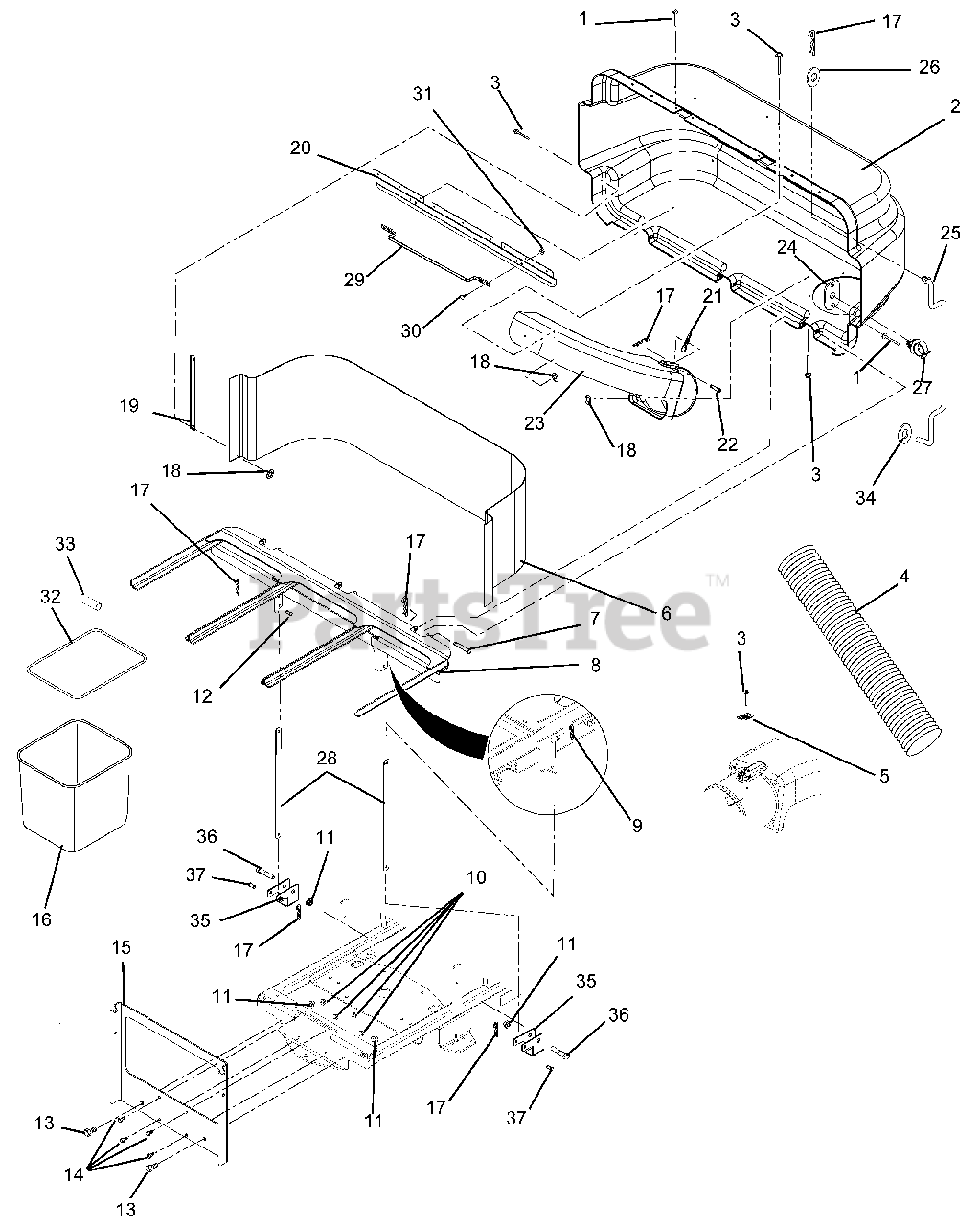

Bagger Cover Assembly Parts Diagram

  • Title

1

Gravely 06802500

Rivet-Pop .187 x .402

$1.49

$

In Stock, Qty 9

0

2

Gravely 51511800

Cover, Bagger with Decal

$346.99

$

Usually ships in 4-12 days

0

3

Gravely 06807600

Rivet-Pop .187 x .375

$

$

Not available

4

Gravely 00455300

Hose, 7 x 38 Kanaflex 165 Clear
(Superseded to 04222800)

$97.99

$

In Stock, only 1 left!

0

5

Gravely 07000026

Thumb Latch

$9.99

$

In Stock, only 2 left!

0

6

Gravely 00166900

Screen, Bagger

$41.99

$

Usually ships in 4-12 days

0

7

Gravely 02747500

Pin-Clevis .368/.373 x 3.25

$6.99

$

In Stock, Qty 8

0

8

Gravely 00596851

Weldment, Bagger Frame

$283.99

$

Usually ships in 4-12 days

0

9

Gravely 06714900

Pin, Hair, External- #16

$0.99

$

In Stock, Qty 10

0

10

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06814800

Pin, Clevis .38 x .75

$3.99

$

In Stock, only 4 left!

0

13

Gravely 05947100

Bolt, Hex .50-13 x 1.00 Grade 5
(Superseded to 05901715)

$2.99

$

In Stock, Qty 7

0

14

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 00596751

Mount, Rear Bagger

$130.99

$

Usually ships in 4-12 days

0

16

Gravely 00663300

Bag, HVZ Mesh

$46.99

$

Usually ships in 4-12 days

0

17

Gravely 06714800

Pin-Hair
(Superseded to 06700223)

$0.99

$

In Stock, Qty 5

0

18

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$1.49

$

Usually ships in 4-12 days

0

19

Gravely 00174851

Strap, Cover

$14.99

$

Usually ships in 4-12 days

0

20

Gravely 00450851

Latch, Cover

$52.99

$

Usually ships in 4-12 days

0

21

Gravely 00168300

Indicator, Flow

$25.99

$

Usually ships in 4-12 days

0

22

Gravely 06815300

Pin-Clevis .31 x 2.62 Grade 5

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 00165900

Boot, Upper

$124.99

$

Usually ships in 4-12 days

0

24

Gravely 00294400

Plate, Rod Clip

$14.99

$

Usually ships in 4-12 days

0

25

Gravely 00292600

Prop-Rod, Bagger

$59.99

$

Usually ships in 4-12 days

0

26

Gravely 06436200

Washer-Flat-Steel .046 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 07534100

Clip .38

$10.99

$

Usually ships in 4-12 days

0

28

Gravely 00596651

Strap, Reinforcing

$8.49

$

Usually ships in 4-12 days

0

29

Gravely 00453000

Bagger Handle

$42.99

$

Usually ships in 4-12 days

0

30

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$1.49

$

In Stock, Qty 7

0

31

Gravely 06543500

Nut, Locking-Top-Flange .25-20
(Superseded to 06500903)

$1.49

$

In Stock, Qty 11

0

32

Gravely 00663200

Frame, HVZ Bag

$42.99

$

In Stock, only 2 left!

0

33

Gravely 00677000

Hose, .38 x .50 x 3.00, Vinyl

$1.99

$

Usually ships in 4-12 days

0

34

Gravely 00548400

Retainer, .38 Push-On

$1.99

$

Usually ships in 4-12 days

0

35

Gravely 00596451

Clamp, HVZ Bagger Mount

$26.99

$

Usually ships in 4-12 days

0

36

Gravely 05965500

Bolt, Hex .50-13 x 2.75 Grade 5
(Superseded to 05901720)

$5.49

$

Usually ships in 4-12 days

0

37

Gravely 06800003

Pin, Clevis .373/.368 x 2.12

$3.99

$

In Stock, only 2 left!

0
