815020 - Ariens Zoom Non-Powered Bagger (SN: 000101 & Above)

Zoom Non-Powered Bagger

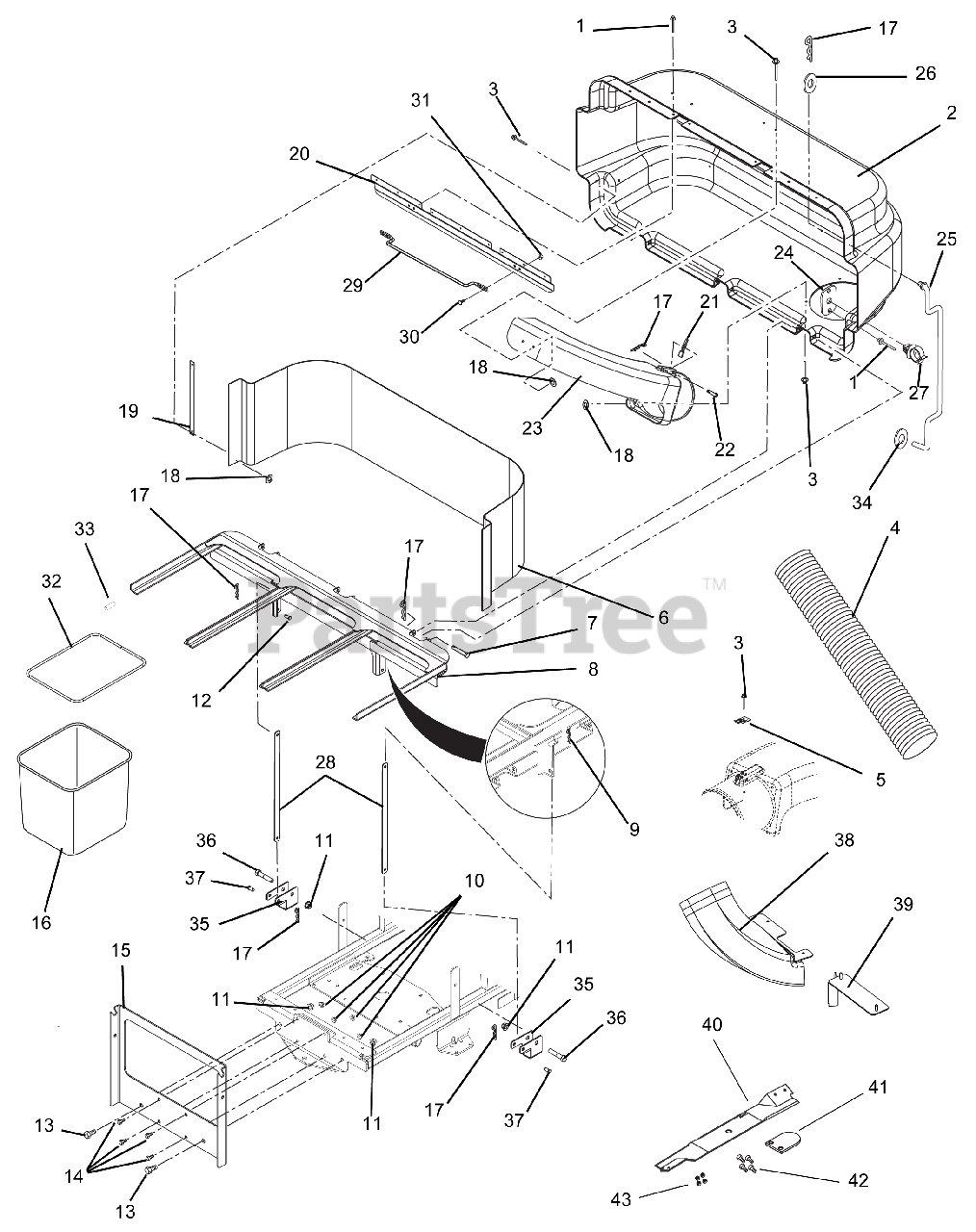

815020 - Ariens Zoom Non-Powered Bagger (SN: 000101 & Above) > Parts Diagrams (3) > Bagger Cover Assembly, Boot And Blade

  • Title
06802500

1

RVT-POP .187X.402 DOME ST

Part# 06802500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

51511800

2

BAGGER COVER W/DECAL

Part# 51511800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $302.35

06807600

3

RVT-POP .187X.375

Part# 06807600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

04222900

4

HOSE, FLEXIBLE-47"

Part# 04222900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $96.09

07000026

5

THUMB LATCH

Part# 07000026

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

00166900

6

SCREEN, BAGGER

Part# 00166900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

02747500

7

PIN-CLEV .371X3.25 YWZC

Part# 02747500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

00596851

8

WMT, BAGGER FRAME

Part# 00596851

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $145.28

06714900

9

PIN, HAIR, EXT - #16 YWZC

Part# 06714900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06545500

10

@NUT-LK-NYL-FLG .38-16 YWZC

Part# 06545500 (Superseded to 06500726)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06500010

11

@NUT-LK-NYL-FLG .50-13 YWZC

Part# 06500010

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06814800

12

PIN-CLEV .38X.75 YWZC

Part# 06814800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05947100

13

@BLT-HEX .50-13X1.00 GR5 YWZC

Part# 05947100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05948700

14

@BLT-HEX .38-16X1.00 GR5 YWZC

Part# 05948700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

00596751

15

MNT, REAR BAGGER

Part# 00596751

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $100.56

00663300

16

BAG, ZOOM MESH

Part# 00663300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $80.44

06714800

17

PIN-HAIR, ENDRIES #25 YWZC

Part# 06714800

OEM Warranty Repair Part for Ariens

Not available

06442700

18

@WSHR-FL-STL.219X.50X.049 YWZC

Part# 06442700

OEM Warranty Repair Part for Ariens

Not available

00174851

19

STRAP,COVER

Part# 00174851

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

00450851

20

LATCH, BAGGER (ZOOM)

Part# 00450851

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.53

00168300

21

INDICATOR, FLOW

Part# 00168300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

06815300

22

PIN-CLEV .309 X 1.625 YWZC

Part# 06815300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

00165900

23

BOOT,UPPER

Part# 00165900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $113.87

00294400

24

PLATE, ROD CLIP

Part# 00294400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

00292600

25

PROP-ROD, BAGGER

Part# 00292600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06436200

26

@WSHR-FL-STL.406X.812X.065 YWZ

Part# 06436200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07534100

27

CLIP-.38

Part# 07534100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

00596651

28

STRAP, REINF.

Part# 00596651

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.32

00453000

29

BAGGER HANDLE

Part# 00453000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06219900

30

@BLT-RDHDSQNK .25-20X.75 G5YZ

Part# 06219900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06543500

31

@NUT-LK-TOP-FLG .25-20 YWZC

Part# 06543500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00663200

32

FRAME, ZOOM BAG

Part# 00663200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

00677000

33

HOSE, .38 X.50 X 3.00 VINYL

Part# 00677000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

00548400

34

RETAINER, .38 PUSH-ON

Part# 00548400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

00596451

35

CLAMP, ZOOM BAGGER MNT

Part# 00596451

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

05965500

36

@BLT-HEX .50-13X2.75 GR5 YWZC

Part# 05965500

OEM Warranty Repair Part for Ariens

Not available

06800003

37

PIN, CLEV .371 X 2.12 YZ

Part# 06800003

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

61546500

38

ASSY, 34" BAGGER BOOT

Part# 61546500 (Superseded to 51517700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $156.46

00698851

39

WELDMENT, 34" BAGGER MOUNT

Part# 00698851 (Superseded to 01326951)

Note: (part of item 37)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $37.12

00698700

40

BLADE, 17.38X2.5X.204 W/HOLES

Part# 00698700

OEM Warranty Repair Part for Ariens

Not available

00438000

41

VANE, BLADE

Part# 00438000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.77

05970500

42

BLT-HEX .31-24X.75 GR8 YWZC

Part# 05970500

OEM Warranty Repair Part for Ariens

Not available

06537000

43

NUT-CTRLK .31-24 YWZC

Part# 06537000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18
