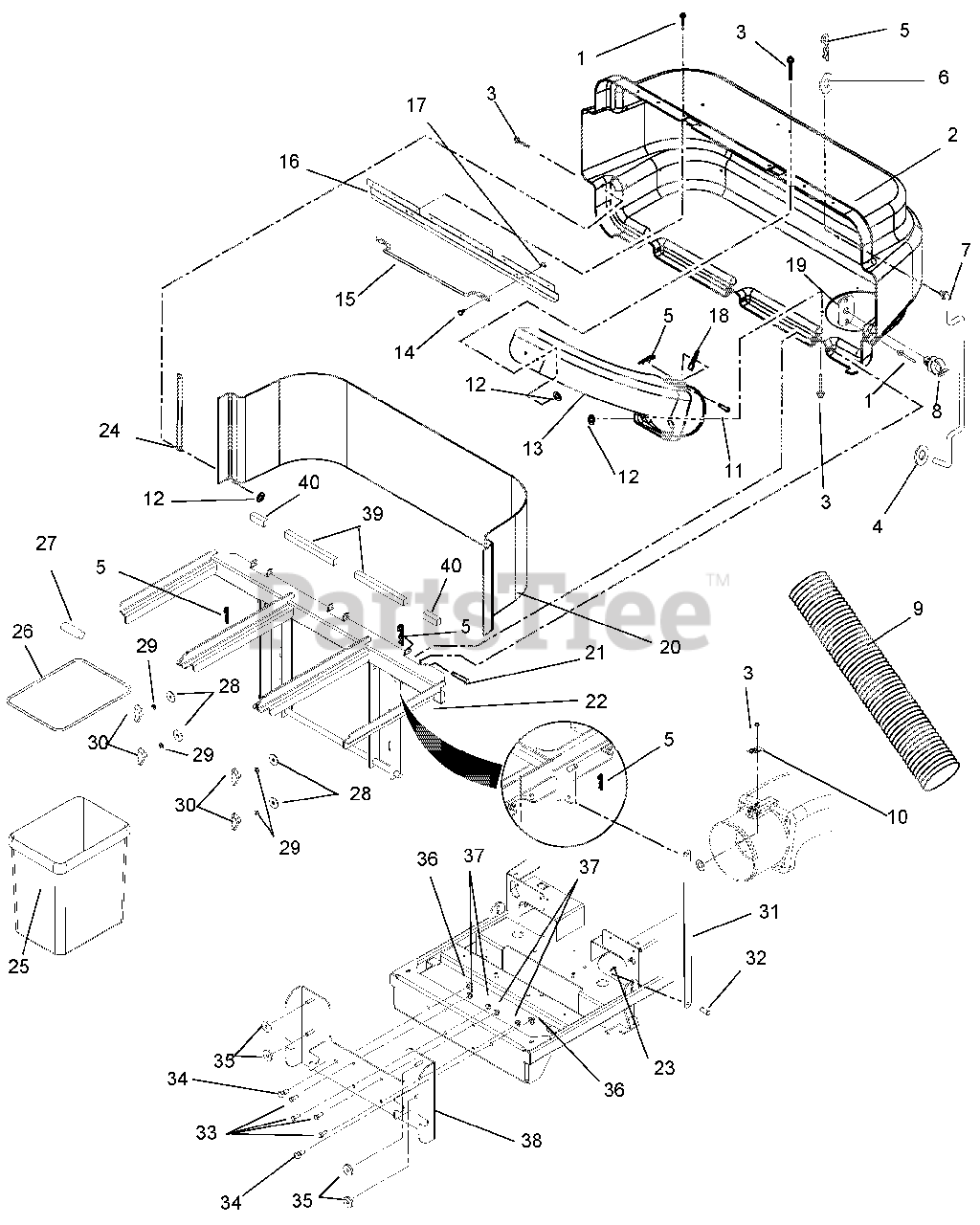

815022 - Ariens ZT XL And Zoom XL Bagger (SN: 000101 - 029999) Bag Cover Assembly Parts Diagram

ZT XL And Zoom XL Bagger

Bag Cover Assembly Parts Diagram

  • Title

1

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 11

0

2

Ariens 61556800

ASM, BAGGER COVER

$

$

Not available

3

Ariens 06807600

RVT-POP .187X.375

$

$

Not available

4

Ariens 00548400

RETAINER, .38 PUSH-ON

$1.49

$

In Stock, only 3 left!

0

5

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

6

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 00292600

PROP-ROD, BAGGER

$58.99

$

Usually ships in 4-12 days

0

8

Ariens 07534100

CLIP-.38

$9.49

$

In Stock, only 1 left!

0

9

Ariens 04222900

HOSE, FLEXIBLE-47"

$113.99

$

Usually ships in 4-12 days

0

10

Ariens 07000026

THUMB LATCH

$9.49

$

In Stock, Qty 9

0

11

Ariens 06815300

PIN-CLEV .309 X 1.625 YWZC

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

13

Ariens 00165900

BOOT,UPPER

$121.99

$

Usually ships in 4-12 days

0

14

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 00453000

BAGGER HANDLE

$40.99

$

Usually ships in 4-12 days

0

16

Ariens 00450851

LATCH, BAGGER (ZOOM)

$51.99

$

Usually ships in 4-12 days

0

17

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

18

Ariens 00168300

INDICATOR, FLOW

$24.99

$

In Stock, only 1 left!

0

19

Ariens 00294400

PLATE, ROD CLIP

$13.99

$

In Stock, only 1 left!

0

20

Ariens 00166900

SCREEN, BAGGER

$39.99

$

Usually ships in 4-12 days

0

21

Ariens 02747500

PIN-CLEV .371X3.25 YWZC

$5.99

$

In Stock, only 2 left!

0

22

Ariens 03372951

WMT, XL BAGGER FRAME

$563.99

$

Usually ships in 4-12 days

0

23

Ariens 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 18

0

24

Ariens 00174851

STRAP,COVER

$13.99

$

Usually ships in 4-12 days

0

25

Ariens 03370700

BAG, MESH XL BAGGER

$91.99

$

In Stock, only 3 left!

0

26

Ariens 00663200

FRAME, ZOOM BAG

$40.99

$

In Stock, only 2 left!

0

27

Ariens 00677000

HOSE, .38 X.50 X 3.00 VINYL

$1.49

$

In Stock, only 2 left!

0

28

Ariens 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, only 3 left!

0

29

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

30

Ariens 07019300

NUT-WING .38-16
(Superseded to 07500109)

$4.99

$

In Stock, only 2 left!

0

31

Ariens 03373151

STRAP, XL BAGGER

$12.99

$

Usually ships in 4-12 days

0

32

Ariens 06814800

PIN-CLEV .38X.75 YWZC

$3.99

$

In Stock, only 4 left!

0

33

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

35

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

36

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

37

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 03373051

WMT, MOUNTING PLATE

$153.99

$

Usually ships in 4-12 days

0

39

Ariens 03752800

BLOCK, 10.5 IN FOAM GRASS

$20.99

$

In Stock, only 2 left!

0

40

Ariens 03752900

BLOCK, 4 IN FOAM GRASS

$20.99

$

Usually ships in 4-12 days

0
