815023 - Ariens HVZ 50" Bagger (SN: 000101 & Above) Blower Assembly To Mower Deck (50-Inch Mower Decks) Parts Diagram

HVZ 50" Bagger

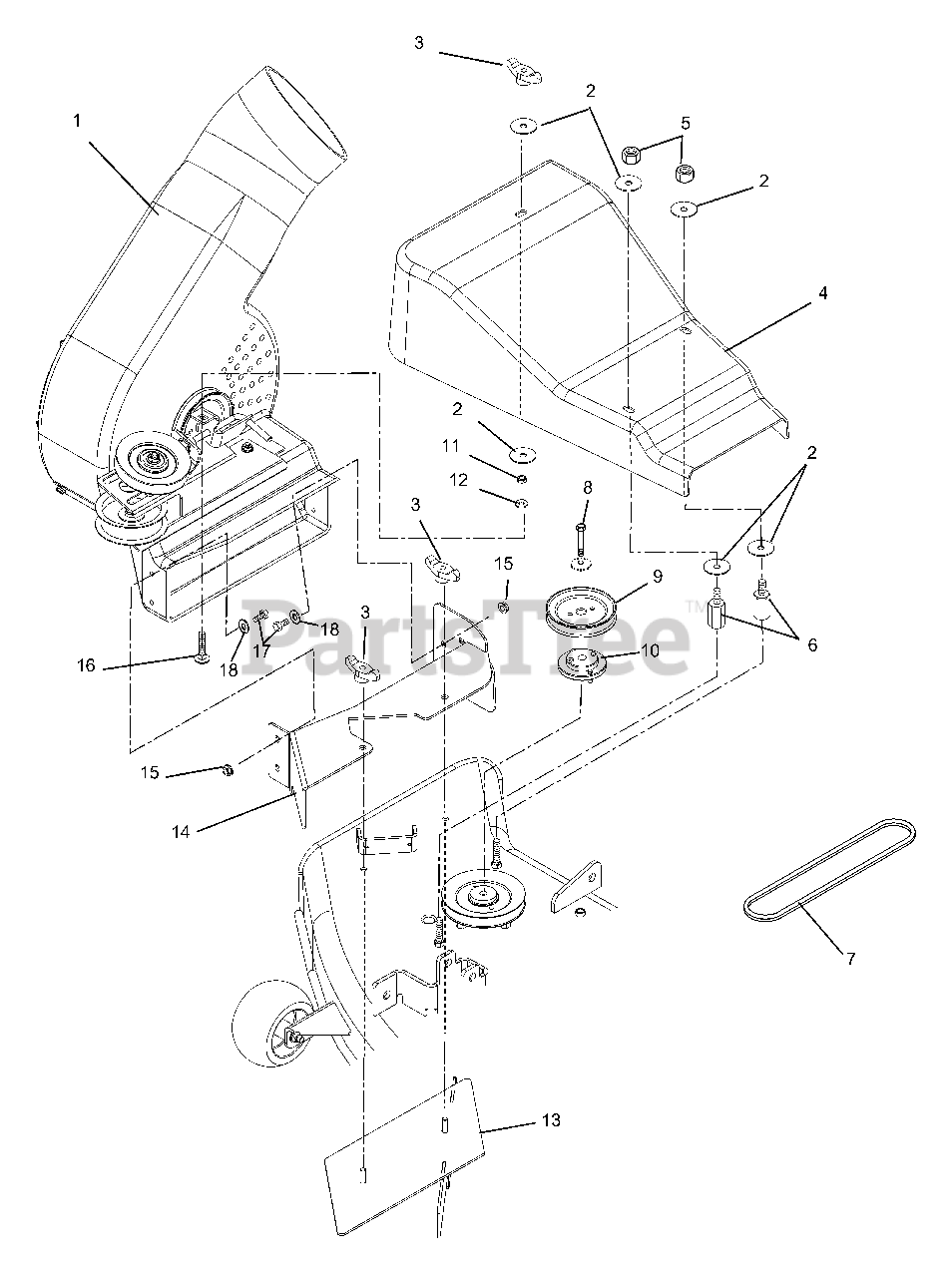

Blower Assembly To Mower Deck (50-Inch Mower Decks) Parts Diagram

  • Title

1

Ariens 51511700

BLOWER HSG W/DECAL
(Superseded to 51586600)

$325.99

$

In Stock, only 1 left!

0

2

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

3

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

4

Ariens 00619000

COVER, 50" ZOOM BAGGER BELT

$

$

Not available

5

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

6

Ariens 00271200

STANDOFF, 2.75 X 5/16-18

$35.99

$

In Stock, Qty 6

0

7

Ariens 07216300

V-BELT, 4L-RAW EDGE

$42.99

$

In Stock, only 4 left!

0

8

Ariens 05980600

BLT-HEX .38-16X1.75 GR8 M-EPYZ

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 00169600

SHEAVE, 4.00 DIA.

$21.99

$

In Stock, only 1 left!

0

10

Ariens 00169800

ASSEMBLY, SHEAVE ADAPTER

$146.99

$

In Stock, only 2 left!

0

10

Ariens 04148200

ASSEMBLY, SHEAVE ADAPTER

Note: (Not Shown)

$105.99

$

Usually ships in 4-12 days

0

11

Ariens 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 00655751

WMT, BAGGER DOUBLER PLATE

$65.99

$

Usually ships in 4-12 days

0

14

Ariens 00618951

WMT, 50" ZOOM BAGGER MTG BRKT

$97.99

$

Usually ships in 4-12 days

0

15

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 6

0

16

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

17

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, Qty 8

0

18

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0
