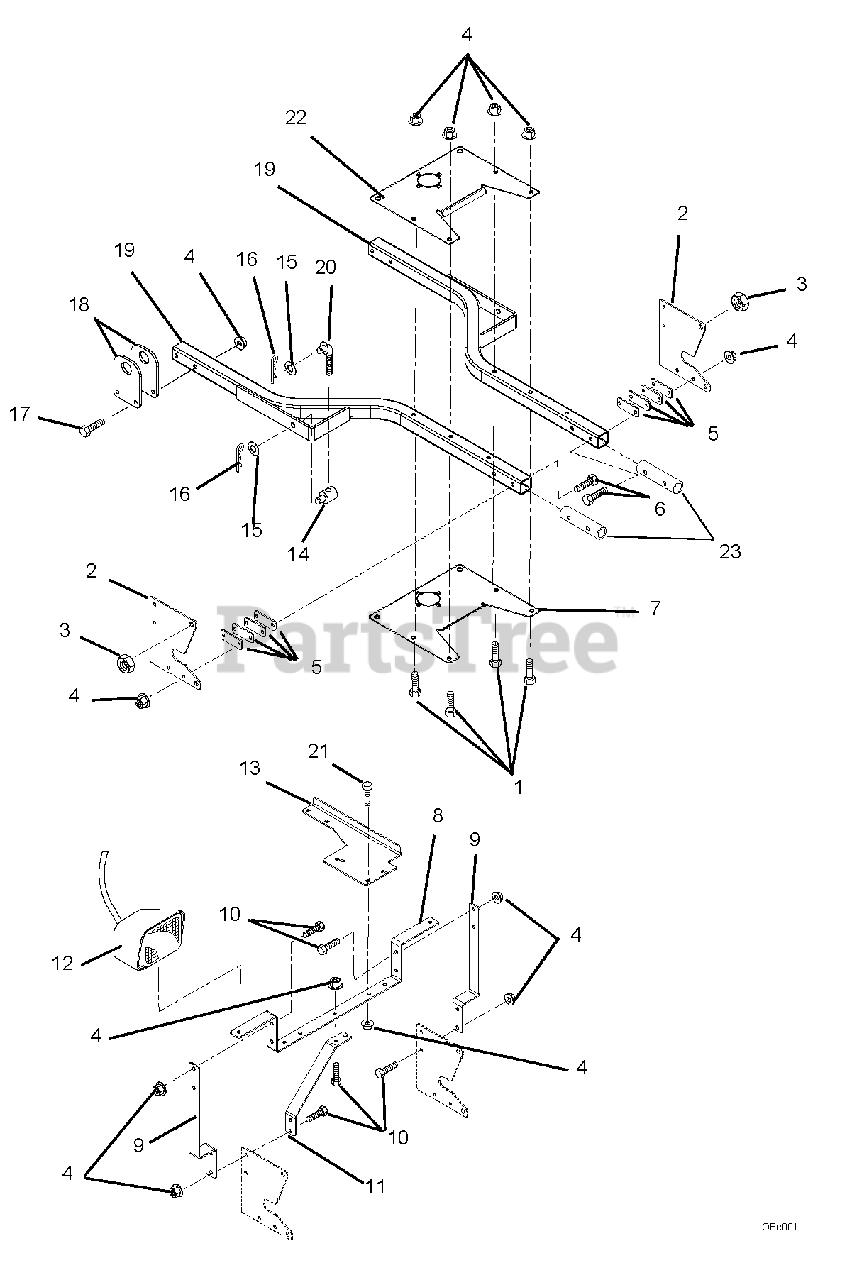

815030 - EverRide Snow Thrower (SN: 000101 & Above) Frame Assembly Parts Diagram

Snow Thrower

Frame Assembly Parts Diagram

  • Title
1

Gravely 05958400

Hex Bolt, .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$3.63

$

In Stock, Qty 13

0

2

Gravely 00263551

Plate, Sno-Thro Mount

$

$

Not available

3

Gravely 06536300

Nut, Locking, Center .50-13
(Superseded to 06500827)

$3.63

$

In Stock, Qty 20+

0

4

Gravely 06542000

Nut, Locking, Top, Flange .38-16
(Superseded to 06500822)

$2.24

$

In Stock, Qty 20+

0

5

Gravely 00264551

Plate, Shim

$

$

Not available

6

Gravely 05957800

Bolt, Hex .38-16 x 3.00 Grade 5
(Superseded to 05901814)

$3.08

$

In Stock, Qty 5

0

7

Gravely 00260351

Plate, Subframe

$39.13

$

Usually ships in 4-12 days

0

8

Gravely 00263751

Light-Bar, Snow Throw

$

$

Not available

9

Gravely 00263651

Support, Light-Bar, Snow Throw

$

$

Not available

10

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$2.80

$

Usually ships in 4-12 days

0

11

Gravely 00266151

Gusset, Light-Bar

$

$

Not available

12

Gravely 02463600

Headlight

$61.43

$

Usually ships in 4-12 days

0

13

Gravely 00264451

Bracket, Deflector Control

$

$

Not available

14

Gravely 01590400

Trunnion

$24.54

$

In Stock, only 2 left!

0

15

Gravely 06430200

Flat Steel Washer, .531 x 1.250 x .100
(Superseded to 06401128)

$2.52

$

In Stock, Qty 11

0

16

Gravely 06714900

External Hair Pin - #16 Black Zinc

$2.24

$

In Stock, Qty 20+

0

17

Gravely 05958400

Hex Bolt, .38-16 x 2.5 Grade 5
(Superseded to 05901812)

$3.63

$

In Stock, Qty 13

0

18

Gravely 00181851

Pivot Bracket

$

$

Not available

19

Gravely 00181751

Weldment, Sub-Frame Tube

$

$

Not available

20

Gravely 02778100

Lift Link

$40.19

$

Usually ships in 4-12 days

0

21

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.80

$

In Stock, only 3 left!

0

22

Gravely 03912251

Plate, Subframe Top

$

$

Not available

23

Gravely 03967500

Tube, Anti-Crush

$

$

Not available
