815030 - EverRide Snow Thrower (SN: 000101 & Above) Wheels, Counterweights and Cold Start Assembly Parts Diagram

Snow Thrower

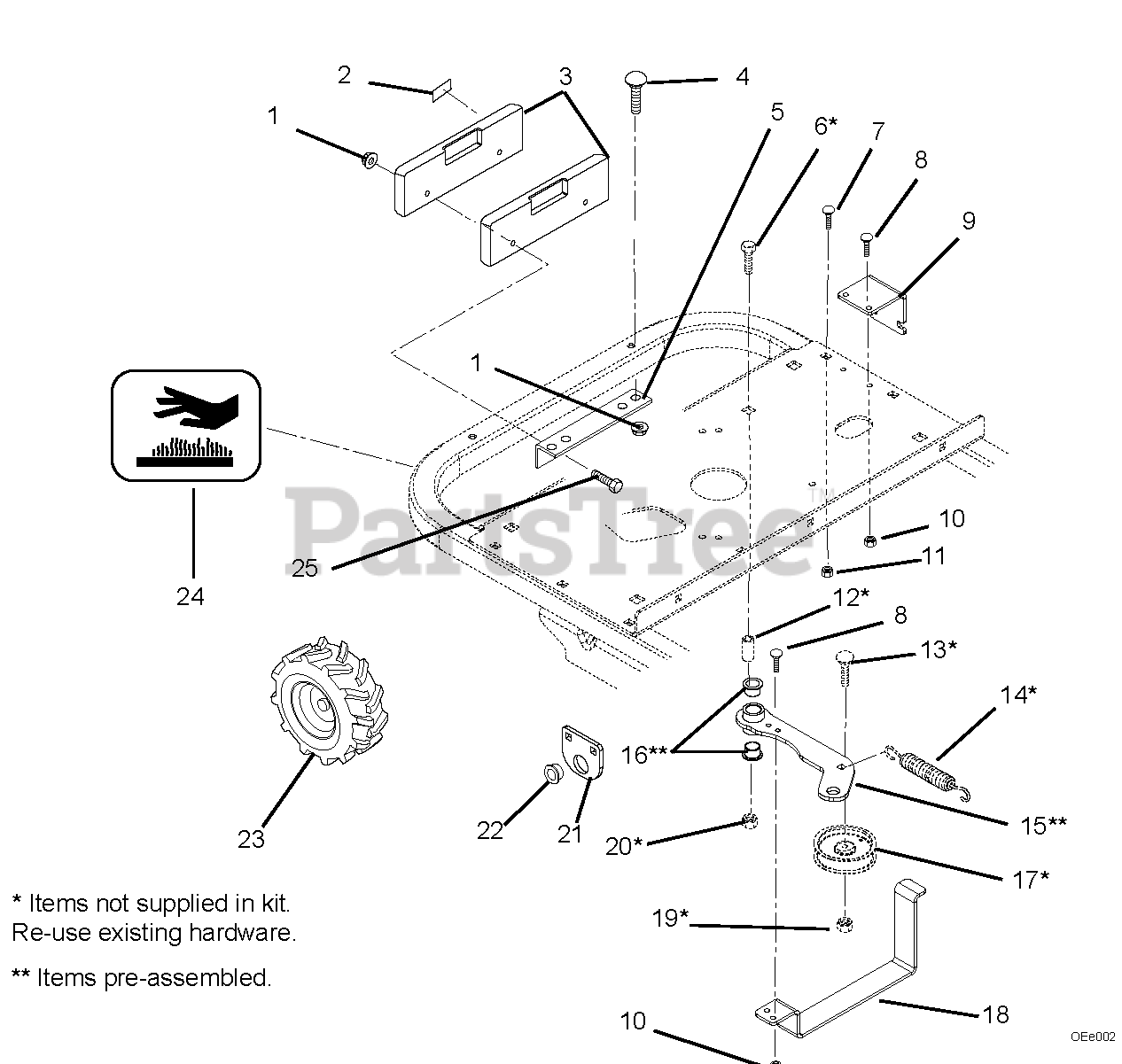

Wheels, Counterweights and Cold Start Assembly Parts Diagram

  • Title
1

Gravely 06542000

Top Locking Flange Nut, .38-16
(Superseded to 06500822)

$2.24

$

In Stock, Qty 20+

0

2

Gravely 00272000

Reflector

$

$

Not available

3

Gravely 00172000

Weight, Cast Iron

$181.39

$

Usually ships in 4-12 days

0

4

Gravely 06224400

Bolt, Round Head Square Neck, .38-16 x 2.50 Grade 5
(Superseded to 06200234)

$3.63

$

In Stock, Qty 20+

0

5

Gravely 01601651

Angle Bracket

$36.84

$

Usually ships in 4-12 days

0

6

05966600*

Bolt, Hex .50-13 x 2.50 Grade 5

$

$

Not available

7

Gravely 06224300

Bolt, Round Head Square Neck .38-16 x 2.00
(Superseded to 06200314)

$3.63

$

In Stock, only 4 left!

0

8

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.79

$

In Stock, Qty 13

0

9

Gravely 00265551

Latch, Cold Start

$

$

Not available

10

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$1.96

$

In Stock, Qty 20+

0

11

Gravely 06537200

Nut, Locking Jam Center .375-16
(Superseded to 06500914)

$1.96

$

In Stock, only 3 left!

0

12

05516400*

Bushing Sleeve .50 x .75 x 1.56

$

$

Not available

13

06224100*

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5

$

$

Not available

14

08336100*

Spring, Extension

$

$

Not available

15

Gravely 00473500

Weldment, Idler

$86.31

$

In Stock, only 1 left!

0

16

Gravely 05500039

Bushing, Flanged 0.75 x 0.875 x .625 x 1.125

$6.99

$

Usually ships in 4-12 days

0

17

07312500*

Pulley, Idler 4.00

$

$

Not available

18

Gravely 00265451

Handle, Cold Start

$

$

Not available

19

06537200*

Nut, Locking, Jam, Center .375-16

$

$

Not available

20

06543600*

Nut, Locking Top Flange .50-13

$

$

Not available

21

Gravely 00175851

Bracket, Rear Pivot

$18.39

$

Usually ships in 4-12 days

0

22

Gravely 05503500

Bushing, Flange 1 x 1.12 .62 1.50

$9.45

$

In Stock, Qty 20+

0

23

Gravely 00259000

Tire/Wheel Assembly, 18 x 6.5

$

$

Not available

24

Gravely 07754100

Decal, Hot Surface

$12.69

$

Usually ships in 4-12 days

0

25

Gravely 05970400

Bolt, Hex .38-16 x 4.50
(Superseded to 05901938)

$4.49

$

Usually ships in 4-12 days

0
