815033 - Ariens XL Series Snow Blade (SN: 000101 & Above) Frame Parts Diagram

XL Series Snow Blade

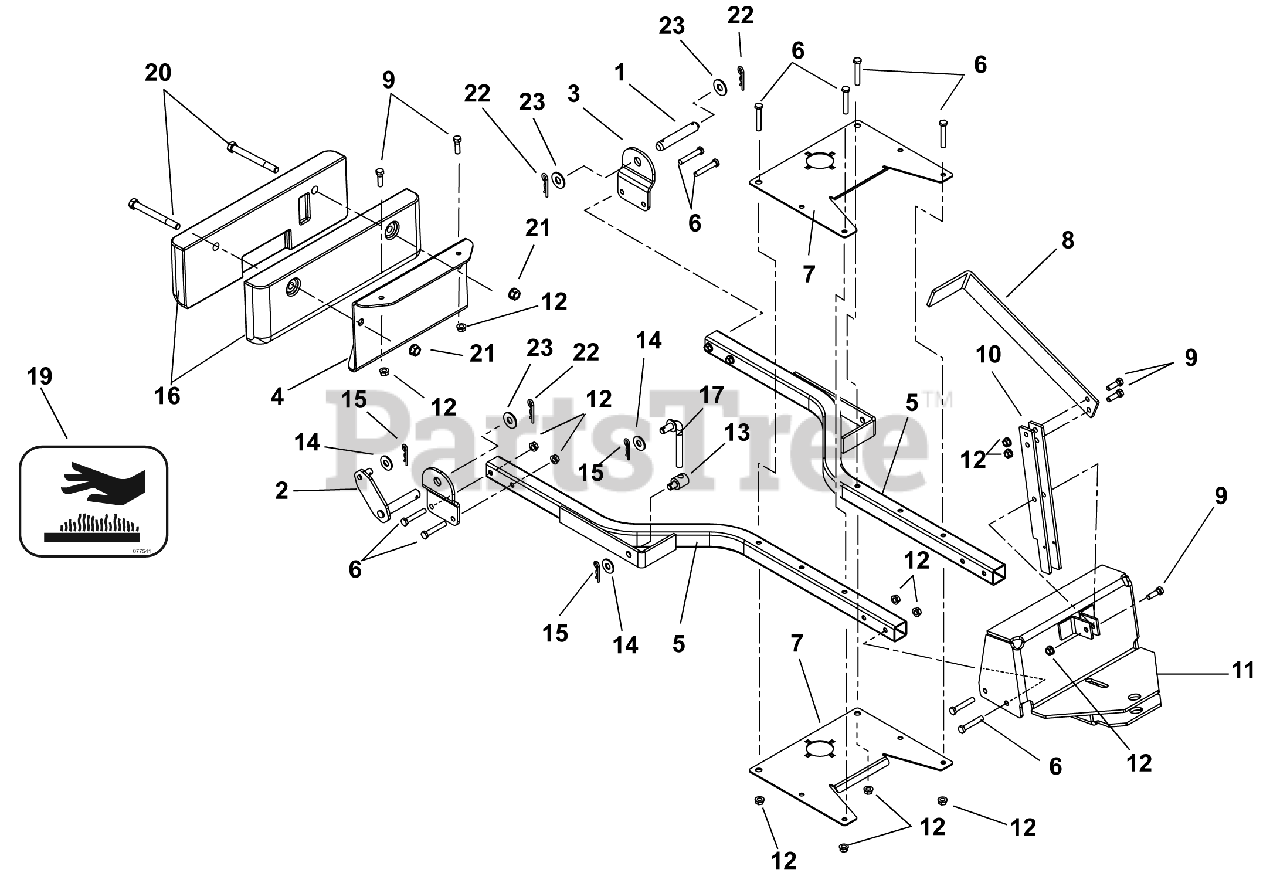

Frame Parts Diagram

  • Title

1

Ariens 03789100

PIN, REAR LIFT PIVOT (LEFT)

$55.99

$

Usually ships in 4-12 days

0

2

Ariens 03838600

WDMT, REAR LIFT PIVOT (RIGHT)

$103.99

$

Usually ships in 4-12 days

0

3

Ariens 03788851

BRKT, PIVOT

$25.99

$

Usually ships in 4-12 days

0

4

Ariens 03789051

BRKT, WEIGHT

$50.99

$

Usually ships in 4-12 days

0

5

Ariens 03788651

WMT, SUB-FRAME TUBE

$

$

Not available

6

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

7

Ariens 00260351

PLATE,SUB-FRAME

$39.99

$

Usually ships in 4-12 days

0

8

Ariens 00181651

PEDAL

$77.99

$

Usually ships in 4-12 days

0

9

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 6

0

10

Ariens 00181551

LATCH

$50.99

$

Usually ships in 4-12 days

0

11

Ariens 00181451

YOKE,BLADE MOUNT

$258.99

$

Usually ships in 4-12 days

0

12

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 01590400

TRUNNION-.50

$45.99

$

In Stock, Qty 8

0

14

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 18

0

16

Ariens 00172000

WEIGHT, CAST IRON

$284.99

$

Usually ships in 4-12 days

0

17

Ariens 03788900

LIFT LINK WELDMENT

$58.99

$

Usually ships in 4-12 days

0

18

Ariens 00259000

ASSY,WHEEL & TIRE 18X6.5 S-HOG

$

$

Not available

19

Ariens 07754100

DECAL, HOT SURFACE

$3.49

$

In Stock, only 3 left!

0

20

Ariens 05962200

@BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

21

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 03714000

BOLT, DIN933 M6X22 HEX

$

$

Not available

23

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 17

0
