815033 - Gravely XL Snow Blade (SN: 000101 & Above) Blade Parts Diagram

XL Snow Blade

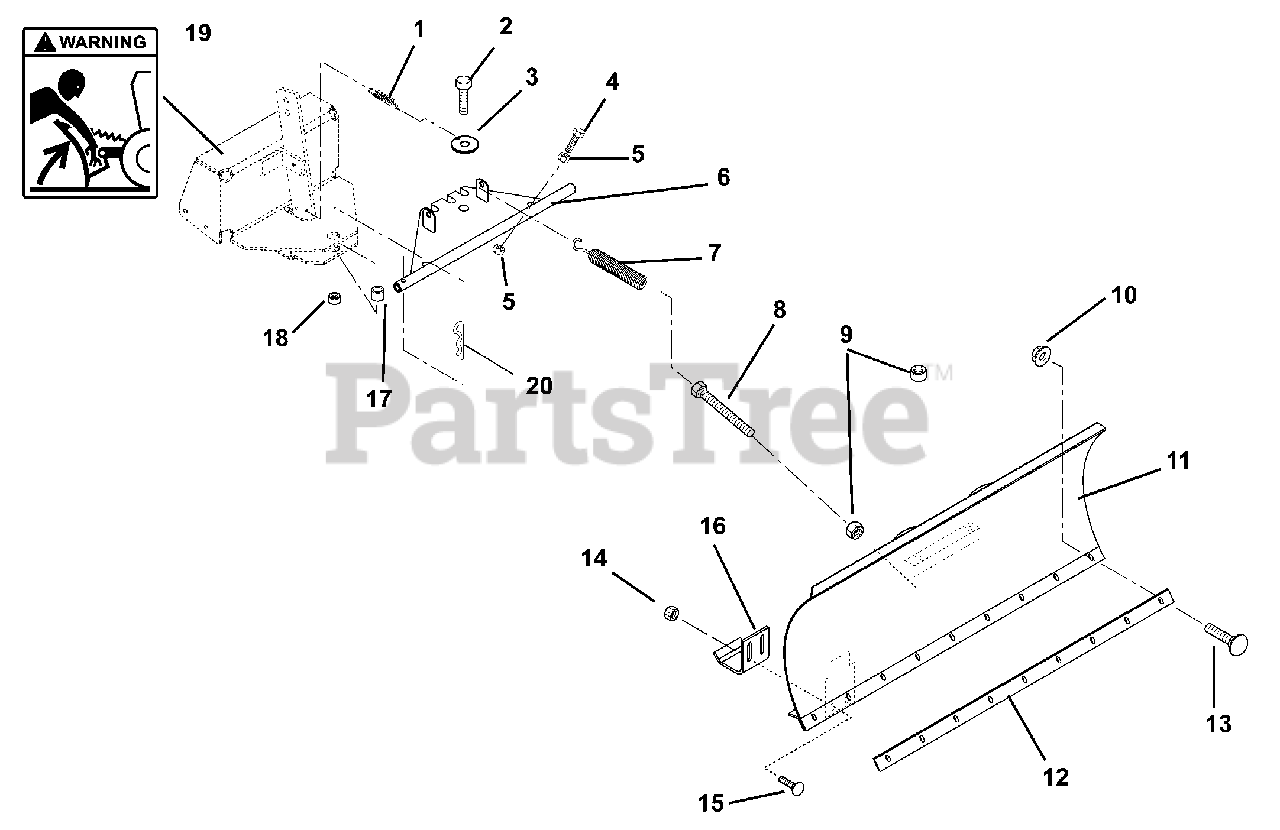

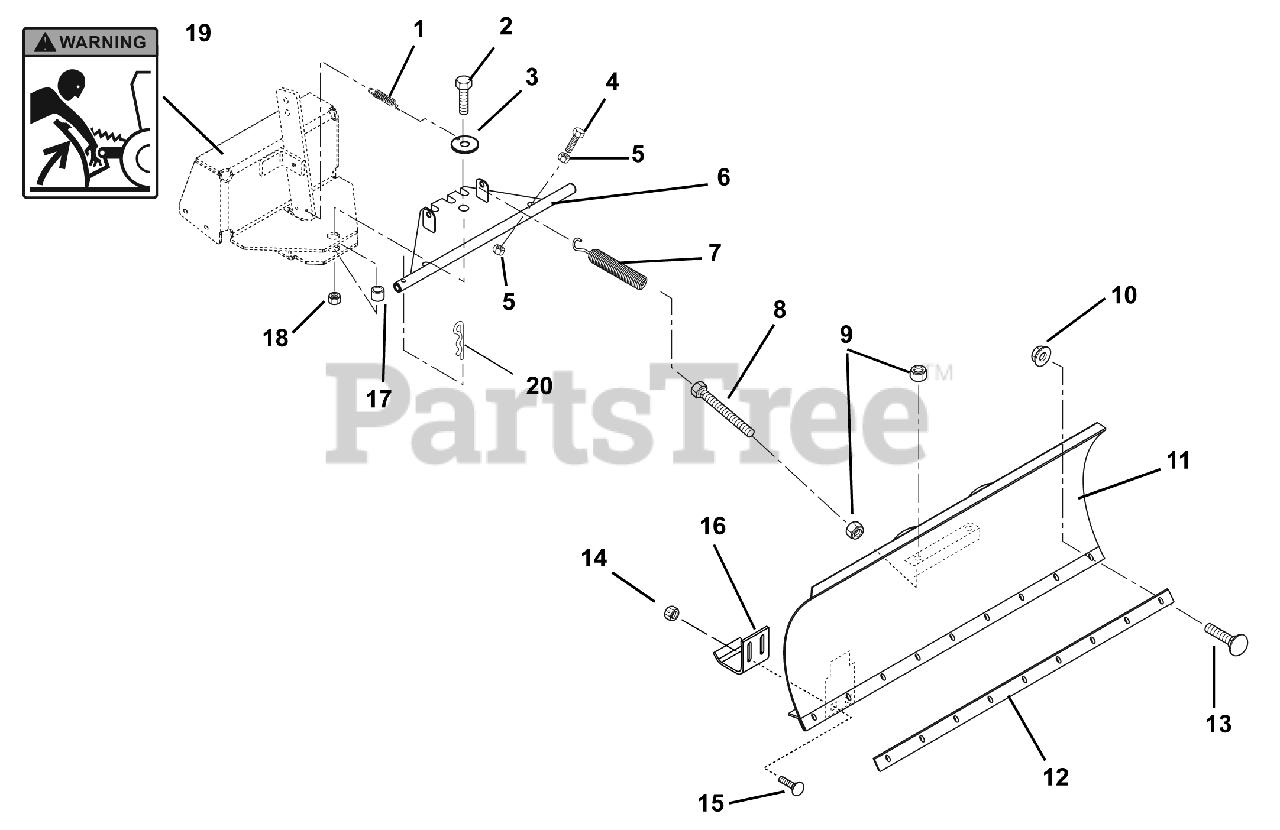

Blade Parts Diagram

  • Title

1

Gravely 00261100

Spring, Latch

$20.99

$

Usually ships in 4-12 days

0

2

Gravely 05961700

Bolt, Hex .75-10 x 3.00 Grade 5

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 00261000

Washer, .38 Special

$

$

Not available

4

Gravely 05959700

Bolt, Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 06537300

Nut, Hex .50-13
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 00260900

Weldment, Pivot Plate

$121.99

$

Usually ships in 4-12 days

0

7

Gravely 00260600

Spring, Blade Adjustment

$39.99

$

Usually ships in 4-12 days

0

8

Gravely 05981300

Bolt, Hex .38-16 x 4.00 Full Thread

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

10

Gravely 06543100

Nut, Locking-Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 03255851

Weldment, 54" Blade

$465.99

$

Usually ships in 4-12 days

0

12

Gravely 03255951

Plate, Wear

$66.99

$

Usually ships in 4-12 days

0

13

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 8

0

14

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

15

Gravely 06212000

Bolt, Round Head Square Neck, 3/8-16 x 1 Grade 5
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 03127151

Skid Shoes

$51.99

$

Usually ships in 4-12 days

0

17

Gravely 01582800

Spacer .753 x 1.00 x 1.60

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 06537900

Nut, Locking-Jam-Nylon .75-10

$15.99

$

Usually ships in 4-12 days

0

19

Gravely 07732500

Decal, Pinch Point

$

$

Not available

20

Gravely 06714000

Internal Hair Pin, .15 x 2.937

$2.99

$

In Stock, Qty 9

0
