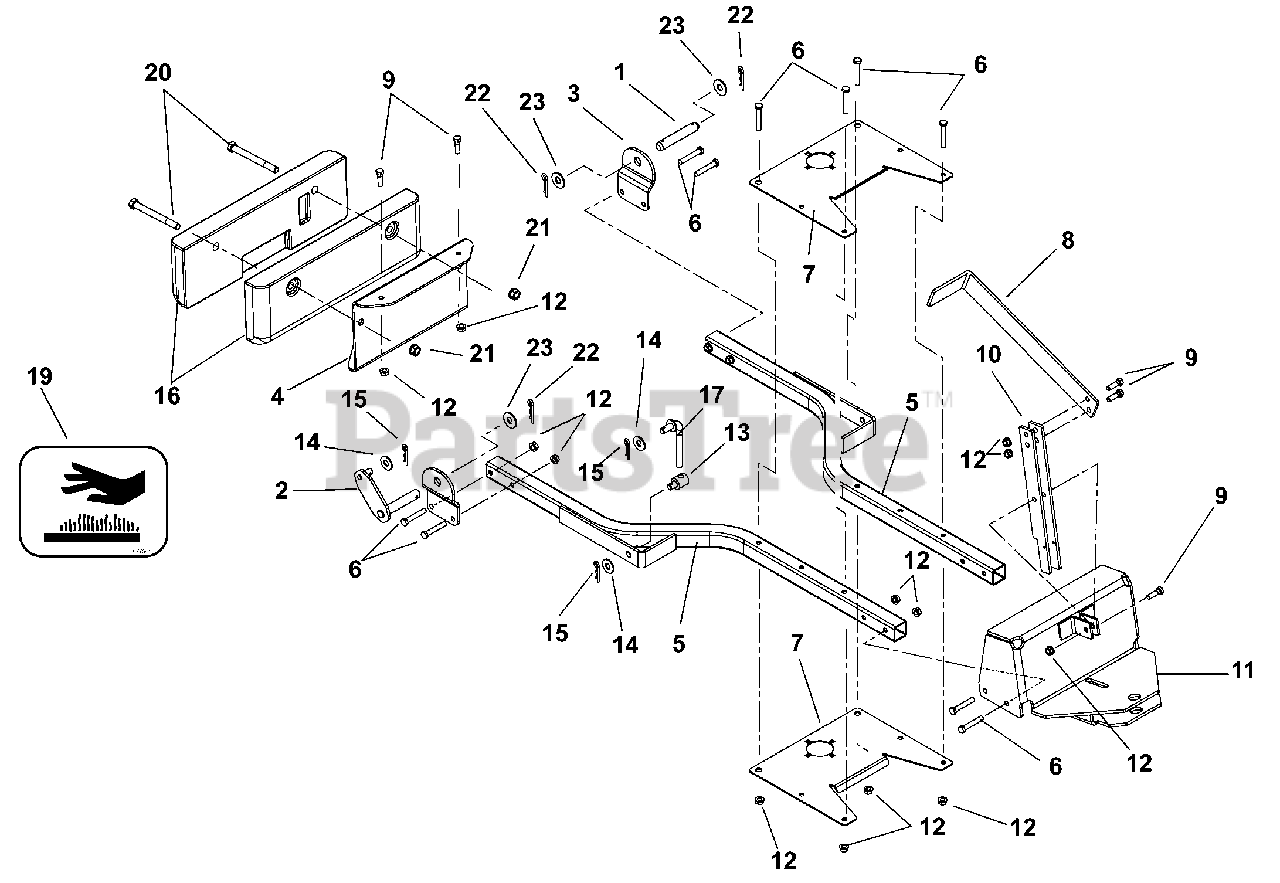

815033 - Gravely XL Snow Blade (SN: 000101 & Above) Frame Parts Diagram

XL Snow Blade

Frame Parts Diagram

  • Title

1

Gravely 03789100

Pin, Left Rear Lift Pivot

$55.99

$

Usually ships in 4-12 days

0

2

Gravely 03838600

Bracket, Right Rear Lift Pivot

$103.99

$

Usually ships in 4-12 days

0

3

Gravely 03788851

Bracket, Pivot

$25.99

$

Usually ships in 4-12 days

0

4

Gravely 03789051

Weight Bracket

$50.99

$

Usually ships in 4-12 days

0

5

Gravely 03788651

Sub-Frame Tube

$

$

Not available

6

Gravely 05962900

Hex Bolt, .38-16 x 2.25 Gr 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 04446351

Sub-Frame Plate

$25.99

$

Usually ships in 4-12 days

0

8

Gravely 00181651

Pedal

$77.99

$

Usually ships in 4-12 days

0

9

Gravely 05958000

Hex Bolt, .38-16 x 1.25 Gr 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 8

0

10

Gravely 00181551

Latch

$50.99

$

Usually ships in 4-12 days

0

11

Gravely 00181451

Blade Mount Yoke

$258.99

$

Usually ships in 4-12 days

0

12

Gravely 06542000

Top Locking Flange Nut, .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0

13

Gravely 01590400

Trunnion

$45.99

$

In Stock, Qty 8

0

14

Gravely 06430200

Flat Steel Washer, .531 x 1.250 x .100
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06714900

External Hair Pin, #16

$0.99

$

In Stock, Qty 18

0

16

Gravely 00172000

Weight, Cast Iron

$284.99

$

Usually ships in 4-12 days

0

17

Gravely 03788900

Lift Link

$58.99

$

Usually ships in 4-12 days

0

18

Gravely 00259000

Tire/Wheel Assembly, 18 x 16.5

$

$

Not available

19

Gravely 07754100

Decal, Hot Surface

$3.49

$

In Stock, only 3 left!

0

20

Gravely 05962200

Bolt, Hex .50-13 x 5.00 Gr 5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 19

0

21

Gravely 06543600

Nut, Top Locking Flange, .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 03714000

Pin, Hair .15 x 2.937

$

$

Not available

23

Gravely 06439000

Washer, Flat Steel .812 x 1.50 x .135
(Superseded to 06401140)

$1.49

$

In Stock, Qty 15

0
