815034 - Gravely XL Series Snow Thrower (SN: 000101 & Above) Frame Assembly Parts Diagram

XL Series Snow Thrower

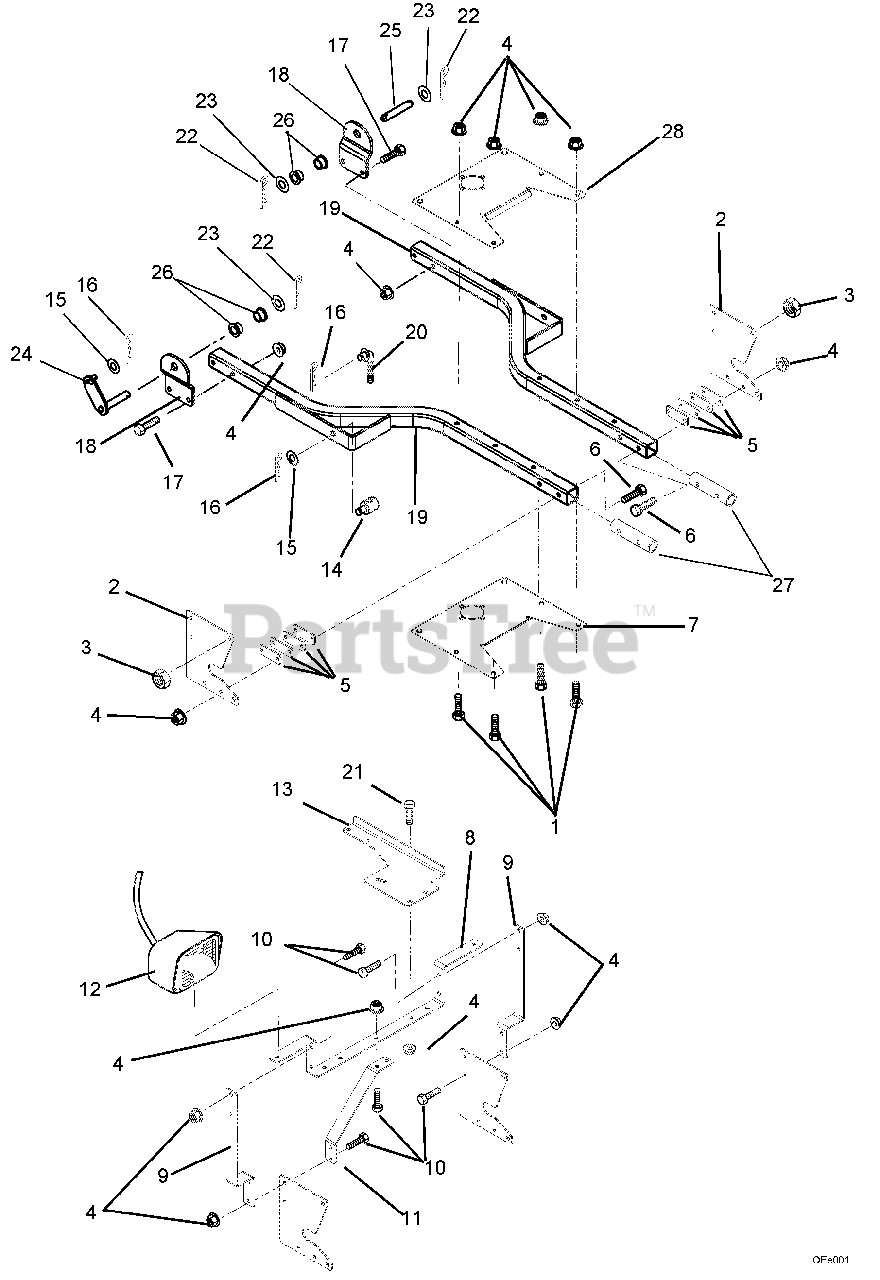

Frame Assembly Parts Diagram

  • Title

1

Gravely 05958400

Hex Bolt, .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

2

Gravely 03788751

Plate, Sno-Thro Mount

$

$

Not available

3

Gravely 06536300

Nut, Locking, Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

4

Gravely 06542000

Nut, Locking, Top, Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 00264551

Plate, Shim

$

$

Not available

6

Gravely 05957800

Bolt, Hex .38-16 x 3.00 Grade 5
(Superseded to 05901814)

$2.49

$

In Stock, only 1 left!

0

7

Gravely 00260351

Plate, Subframe

$39.99

$

Usually ships in 4-12 days

0

8

Gravely 00263751

Light-Bar, Snow Throw

$

$

Not available

9

Gravely 00263651

Support, Light-Bar, Snow Throw

$

$

Not available

10

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00266151

Gusset, Light-Bar

$

$

Not available

12

Gravely 02463600

Headlight

$83.99

$

Usually ships in 4-12 days

0

13

Gravely 00264451

Bracket, Deflector Control

$

$

Not available

14

Gravely 01590400

Trunnion

$45.99

$

In Stock, Qty 8

0

15

Gravely 06430200

Washer, Flat Steel .531 x 1.250 x .100
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06714900

External Hair Pin - #16 Black Zinc

$0.99

$

In Stock, Qty 18

0

17

Gravely 05958400

Hex Bolt, .38-16 x 2.5 Grade 5
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 03788851

Pivot Bracket

$25.99

$

Usually ships in 4-12 days

0

19

Gravely 03788651

Weldment, Sub-Frame Tube

$

$

Not available

20

Gravely 03788900

Lift Link

$58.99

$

Usually ships in 4-12 days

0

21

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

22

Gravely 06714000

Pin, Hair Int. .15 x 2.937

$2.99

$

In Stock, Qty 9

0

23

Gravely 06439000

Washer, Flat Steel .812 x 1.50 x .135
(Superseded to 06401140)

$1.49

$

In Stock, Qty 15

0

24

Gravely 03838600

Pin, Right Rear Lift Pivot

$103.99

$

Usually ships in 4-12 days

0

25

Gravely 03789100

Pin, Left Rear Lift Pivot

$55.99

$

Usually ships in 4-12 days

0

26

Gravely 05503900

Bushing, .75 x 1.00 x .625 x 1.25 Flange

$12.99

$

In Stock, Qty 9

0

27

Gravely 03967500

Tube, Anti-Crush

$

$

Not available

28

Gravely 04446351

Plate, Subframe Top

$25.99

$

Usually ships in 4-12 days

0
