815034 - Gravely XL Series Snow Thrower (SN: 000101 & Above) Snow Thrower and Auger Parts Diagram

XL Series Snow Thrower

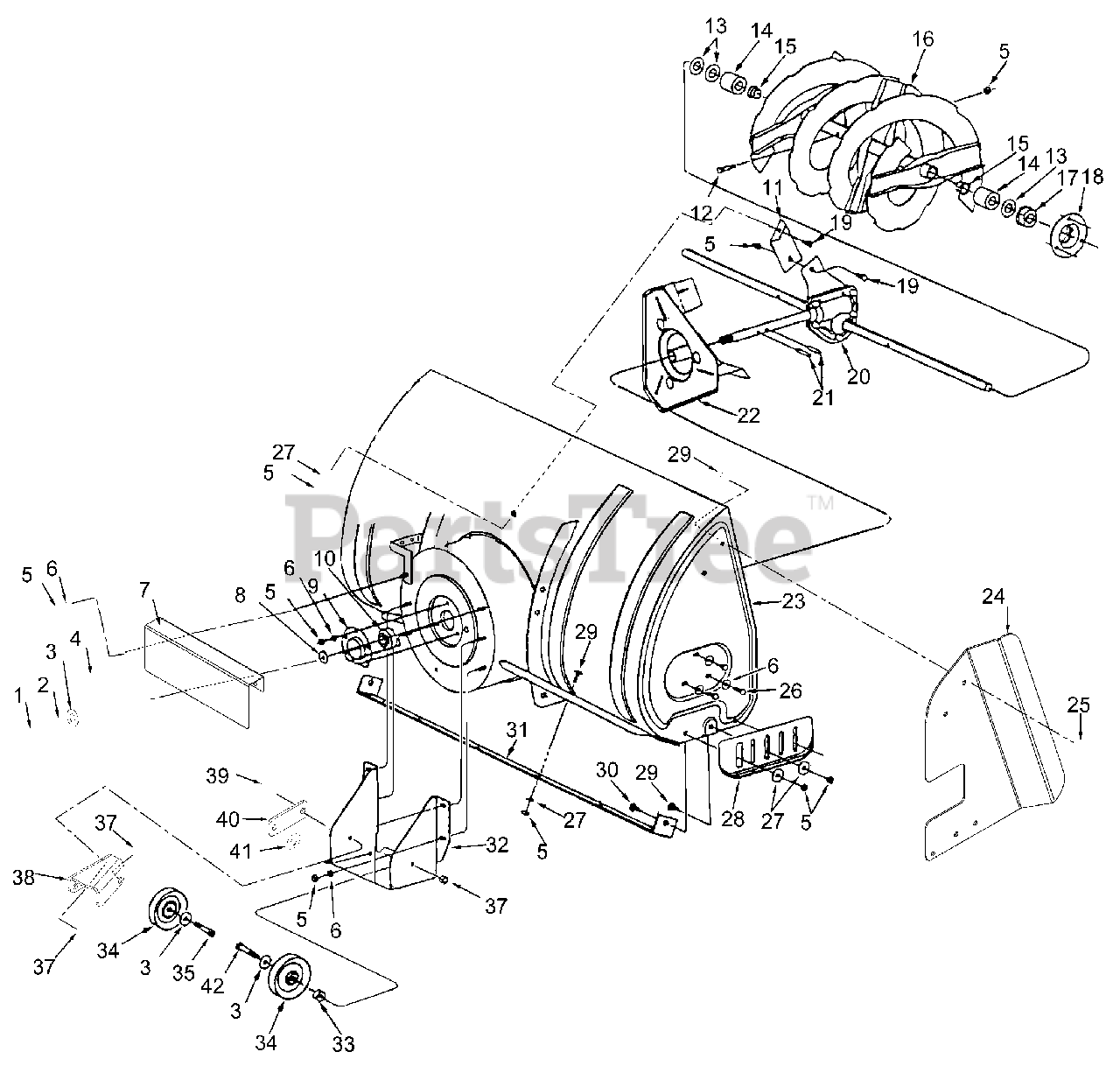

Snow Thrower and Auger Parts Diagram

  • Title

1

Gravely 44377

Hex Bolt, 3/8-24 X 1

$

$

Not available

2

43003

Lock Washer, 3/8

$

$

Not available

3

Gravely 736-0247

Washer

$

$

Not available

4

Gravely 47026

Pulley, V-Type

$

$

Not available

5

43064

Hex Lock Nut, 5/16-18

$

$

Not available

6

Gravely 43086

Lock Washer 5/16

$

$

Not available

7

NA

Finger Guard

$

$

Not available

8

Gravely 750-0437

Bushing

$

$

Not available

9

Gravely 5931

Housing, Bearing

$

$

Not available

10

Gravely 741-0309

Bearing, Ball

$

$

Not available

11

Gravely 703-2734

Bracket, Housing Brace

$

$

Not available

12

Gravely 710-0890A

Bolt, Shear 5/16-18 x 1-1/2

$

$

Not available

13

Gravely 736-0188

Washer, .76 x 1.49 x .06

$

$

Not available

14

Gravely 711-0469

Spacer, .75 ID x 1.25 OD x .51

$

$

Not available

15

Gravely 741-0493A

Bearing, Split, 3/4

$

$

Not available

16

Gravely 705-5270

Spiral Assembly, R.H.

$

$

Not available

Gravely 705-5269

Spiral Assembly, L. H.

$

$

Not available

17

47615

Bearing Flange

$

$

Not available

18

Gravely 784-5618

Housing, Bearing

$

$

Not available

19

43182

Hex Bolt, 5/16"-18 x 3/4"

$

$

Not available

20

Gravely 618-0616A

Gear Assembly

$

$

Not available

21

Gravely 715-0114

Spiral Pin, 1/4 x 1-1/2"

$

$

Not available

22

Gravely 63768

Impeller Assembly

$

$

Not available

23

Gravely 63562

Housing Assembly

$

$

Not available

24

NA

Drift Cutter, Right Hand

$

$

Not available

NA

Drift Cutter, Left Hand

$

$

Not available

25

NA

Nut-Locking-Top-Flange .31-18

$

$

Not available

26

46703

Bolt, Self-Tap 5/16 x 3/4"

$

$

Not available

27

Gravely 43081

Washer, 5/16

$

$

Not available

28

Gravely 24279

Skid Shoe

$

$

Not available

29

Gravely 43080

Carriage Bolt, 5/16-18 x 3/4

$

$

Not available

30

44326

Carriage Bolt, 5/16-18 x 1

$

$

Not available

31

Gravely 24773

Scraper Plate

$

$

Not available

32

Gravely 24281

Bracket, Idler

$

$

Not available

33

NA

Bushing

$

$

Not available

NA

(Gravely Part Number)

Note: (Gravely Part Number)

$

$

Not available

34

Gravely 47044

Pulley, V-Type

$

$

Not available

35

NA

Bolt-Hex .38-16 X 1.50 Grade 5

$

$

Not available

36

Gravely 711-0242

Spacer

$

$

Not available

37

NA

Nut-Locking-Top-Flange .38-16

$

$

Not available

38

NA

Bracket

$

$

Not available

39

NA

Bolt-Hex .38-16 X 1.00 Grade 5

$

$

Not available

40

NA

Plate, Shim

$

$

Not available

41

NA

Washer-Flat-Steel .406 x 1.00 x.188

$

$

Not available

42

NA

Bolt-Hex .38-16 X 2.00 Grade 5

$

$

Not available
