815036 - Gravely Zoom and ZT Bagger (SN: 000101 & Above)

Zoom and ZT Bagger

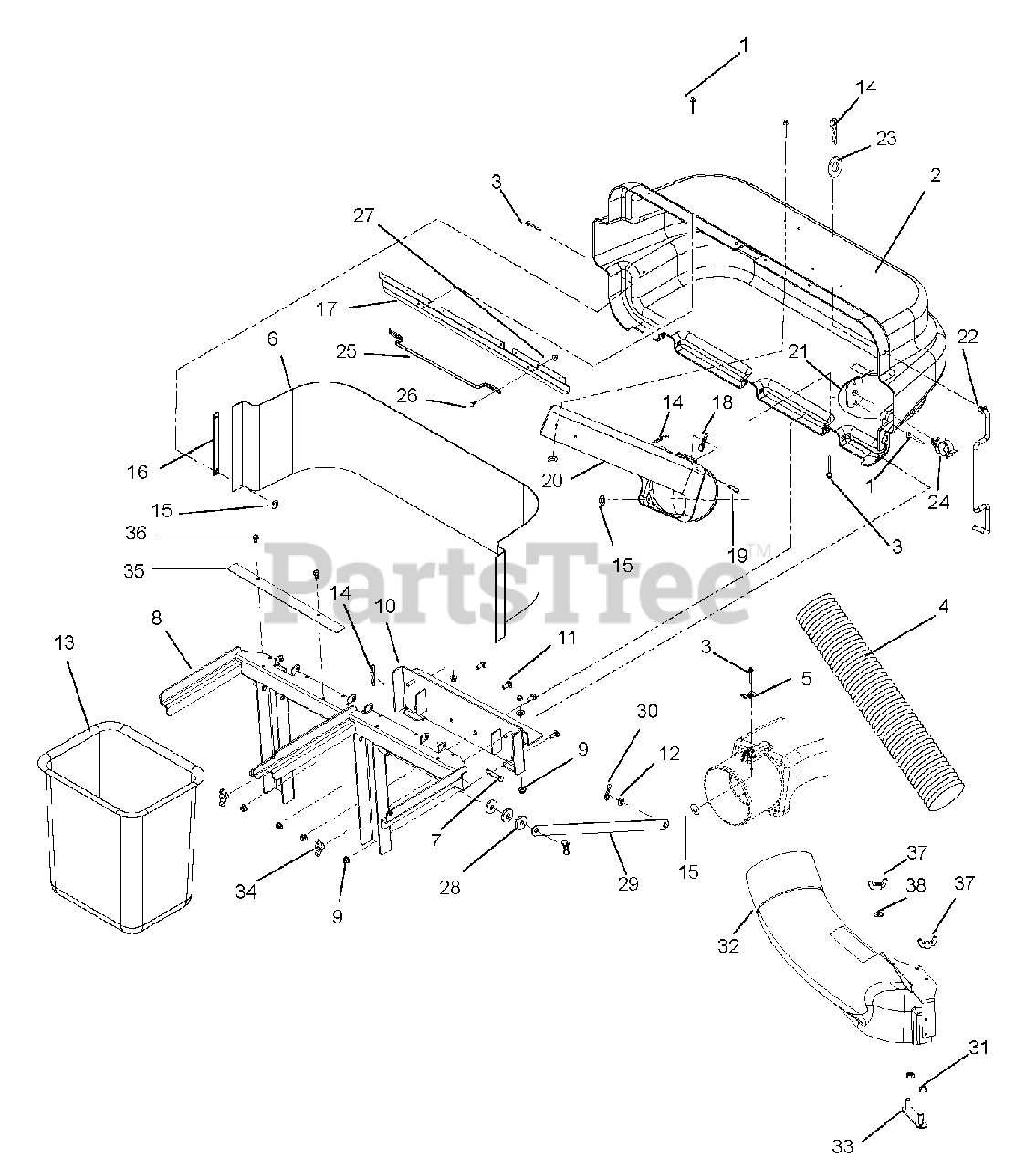

815036 - Gravely Zoom and ZT Bagger (SN: 000101 & Above) > Parts Diagrams (3) > Blower Housing Assembly

  • Title
06802500

1

Rivet, Pop .187 x .402

Part# 06802500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

51513500

2

Cover, Bagger with Decal

Part# 51513500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $423.32

06807600

3

Rivet, Pop .187 x .375

Part# 06807600

OEM Warranty Repair Part for Gravely

Not available

04222900

4

Hose 7 x 45

Part# 04222900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $109.90

07000026

5

Thumb Latch

Part# 07000026

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

00166900

6

Screen, Bagger

Part# 00166900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

02747500

7

Pin, Clevis .368/.373 x 3.25

Part# 02747500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

03788251

8

Weldment, Bagger Frame

Part# 03788251

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $145.28

06545500

9

Nut, Locking Nylon Flange

Part# 06545500 (Superseded to 06500726)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

03788351

10

Weldment, Mounting Plate

Part# 03788351

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $79.10

06223600

11

Bolt, Round Head Square Neck .38-16 x 1.00

Part# 06223600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06435900

12

Washer, Flat Steel .438 x 1.00 x .083

Part# 06435900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

03862900

13

Bag, Mesh

Part# 03862900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $77.42

06714800

14

Pin, Hair

Part# 06714800

OEM Warranty Repair Part for Gravely

Not available

06442700

15

Washer, Flat Steel .219 x .50 x .049

Part# 06442700

OEM Warranty Repair Part for Gravely

Not available

00377051

16

Strap, Cover

Part# 00377051

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.09

00453151

17

Latch, Cover

Part# 00453151

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

00168300

18

Indicator, Flow

Part# 00168300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $24.09

06815300

19

Pin, Clevis .31 x 2.62 Grade 5

Part# 06815300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

00376800

20

Boot, Upper

Part# 00376800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $80.44

00294400

21

Plate, Rod Clip

Part# 00294400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $13.47

00376900

22

Prop, Rod, Bagger

Part# 00376900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $46.90

06436200

23

Washer, Flat Steel .046 x .812 x .065

Part# 06436200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

07534100

24

Clip .38

Part# 07534100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

00453000

25

Handle, Bagger

Part# 00453000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.19

06219900

26

Bolt, Round Head Square Neck .25-20 x .75 Grade 5

Part# 06219900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06535000

27

Nut, Locking Top Flange .25-20

Part# 06535000 (Superseded to 06517600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06445000

28

Washer, Flat .515 x 1.62 x .250

Part# 06445000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

06700201

29

Pin, Bow Tie Locking Cotter .091 x 1.875

Part# 06700201

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

03827551

30

Weldment Strap, Bagger

Part# 03827551

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $32.42

06500011

31

Nut, Locking-Center-Jam .31-18

Part# 06500011

OEM Warranty Repair Part for Gravely

Not available

61568500

32

Bagger Boot Assembly

Part# 61568500

OEM Warranty Repair Part for Gravely

Not available

04088800

33

Weldment, Boot Mount Strap

Part# 04088800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.19

07019300

34

Nut, Wing .375-16

Part# 07019300 (Superseded to 07500109)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.47

03844100

35

Bracket, Bagger Overlap

Part# 03844100

OEM Warranty Repair Part for Gravely

Not available

07411500

36

Screw, Tapping .31-18 x .50 Hex Washer Head Thread Rolling

Part# 07411500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06537100

37

Nut, Nylock Wing .312-18

Part# 06537100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

06436200

38

Washer, Flat-Steel .406 x .812 x .065

Part# 06436200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85
