815037 - Gravely 34" Zoom and ZT Bagger (SN: 000101 & Above) Bagger Assembly Parts Diagram

34" Zoom and ZT Bagger

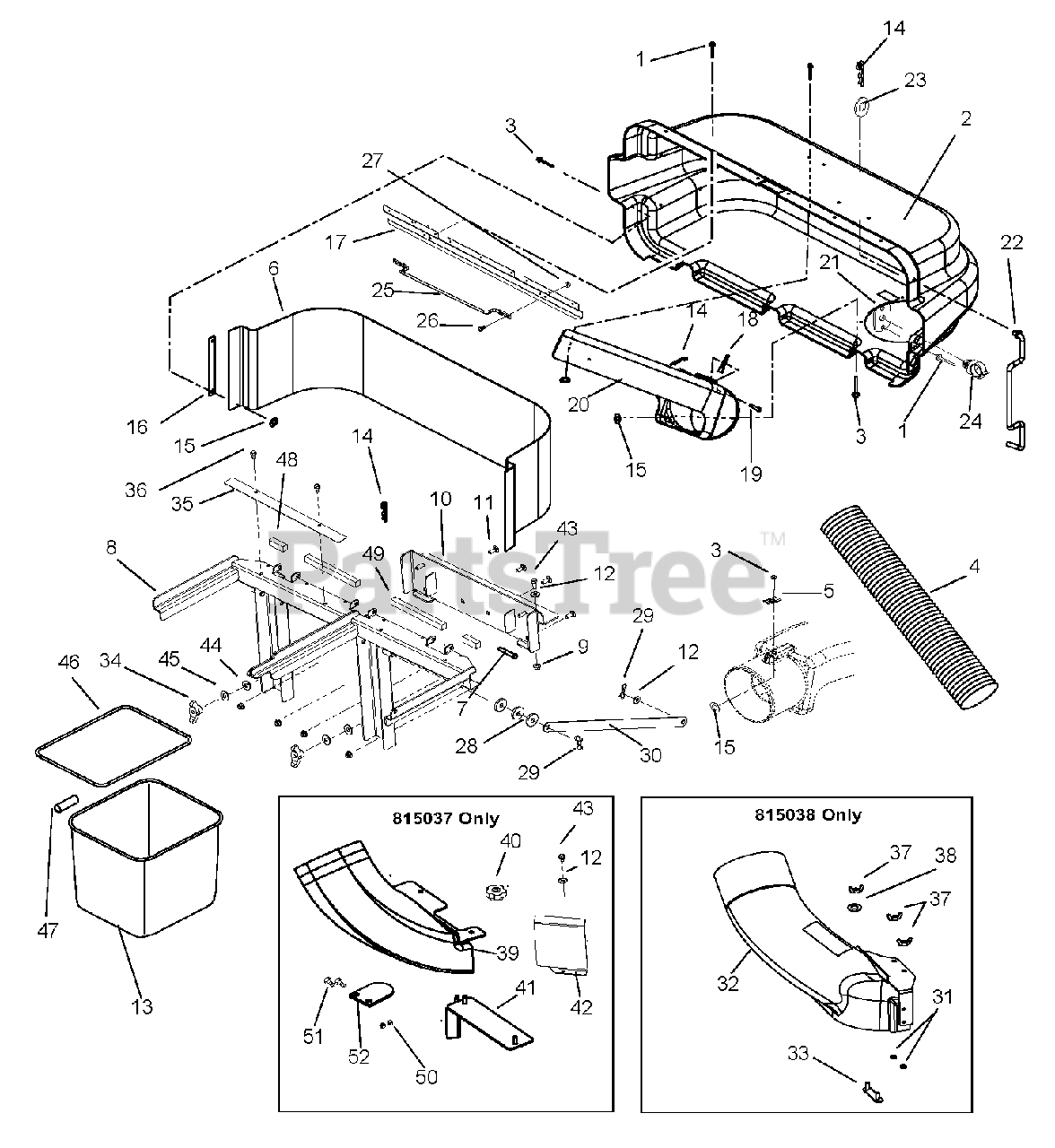

Bagger Assembly Parts Diagram

  • Title

1

Gravely 06802500

Rivet, Pop .187 x .402

$1.49

$

In Stock, Qty 11

0

2

Gravely 51513500

Cover, Bagger with Decal

$475.99

$

Usually ships in 4-12 days

0

3

Gravely 06807600

Rivet, Pop .187 x .375

$

$

Not available

4

Gravely 04222900

Hose 7 x 45

$113.99

$

In Stock, only 1 left!

0

5

Gravely 07000026

Thumb Latch

$9.49

$

In Stock, Qty 9

0

6

Gravely 00166900

Screen, Bagger

$39.99

$

Usually ships in 4-12 days

0

7

Gravely 02747500

Pin, Clevis .368/.373 x 3.25

$5.99

$

In Stock, only 2 left!

0

8

Gravely 03788251

Weldment, Bagger Frame

$426.99

$

Usually ships in 4-12 days

0

9

Gravely 06545500

Nut, Locking Nylon Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 03788351

Weldment, Mounting Plate

$100.99

$

Usually ships in 4-12 days

0

11

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200313)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083 (815037 only)
(Superseded to 06401008)

Note: (815037 only)

$1.49

$

In Stock, only 4 left!

0

13

Gravely 03862900

Bag, Mesh

$56.99

$

Usually ships in 4-12 days

0

14

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

15

Gravely 06442700

Washer, Flat Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

16

Gravely 00377051

Strap, Cover

$6.49

$

Usually ships in 4-12 days

0

17

Gravely 00453151

Latch, Cover

$51.99

$

Usually ships in 4-12 days

0

18

Gravely 00168300

Indicator, Flow

$24.99

$

In Stock, only 1 left!

0

19

Gravely 06815300

Pin, Clevis .31 x 2.62 Grade 5

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 00376800

Boot, Upper

$82.99

$

Usually ships in 4-12 days

0

21

Gravely 00294400

Plate, Rod Clip

$13.99

$

In Stock, only 1 left!

0

22

Gravely 00376900

Prop, Rod, Bagger

$47.99

$

Usually ships in 4-12 days

0

23

Gravely 06436200

Washer, Flat Steel .046 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 07534100

Clip .38

$9.49

$

In Stock, only 1 left!

0

25

Gravely 00453000

Handle, Bagger

$40.99

$

Usually ships in 4-12 days

0

26

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06535000

Nut, Locking Top Flange .25-20
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06445000

Washer, Flat .515 x 1.62 x .250

$5.99

$

In Stock, Qty 20+

0

29

Gravely 06700201

Pin, Bow Tie Locking Cotter .091 x 1.875
(Superseded to 06700220)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 03827551

Weldment Strap, Bagger

$37.99

$

Usually ships in 4-12 days

0

31

Gravely 06500011

Nut, Locking-Center-Jam .31-18
(Superseded to 06500913)

$0.99

$

In Stock, Qty 9

0

32

Gravely 61568500

Bagger Boot Assembly

$

$

Not available

33

Gravely 04088800

Weldment, Boot Mount Strap

$45.99

$

Usually ships in 4-12 days

0

34

Gravely 07019300

Nut, Wing .375-16
(Superseded to 07500109)

$4.99

$

In Stock, only 2 left!

0

35

Gravely 03844100

Bracket, Bagger Overlap

$

$

Not available

36

Gravely 07411500

Screw, Tapping .31-18 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 06537100

Nut, Nylock Wing .312-18

$5.99

$

In Stock, only 1 left!

0

38

Gravely 06436200

Washer, Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 61546500

Bagger Boot Assembly, 34 in. Deck
(Superseded to 51517700)

$

$

Not available

40

Gravely 07534800

Knob, Clamping Nyloc .312-18

$7.99

$

In Stock, Qty 13

0

41

Gravely 01326951

Mount, Bagger Boot 34 in. Deck

$56.99

$

Usually ships in 4-12 days

0

42

Gravely 03831751

Deflector, Muffler (815037 only)

Note: (815037 only)

$14.99

$

Usually ships in 4-12 days

0

43

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 06441700

Washer, Flat-Steel .390 x 1.5 x .125

$3.99

$

In Stock, only 4 left!

0

45

Gravely 06308800

Washer, Lock 3/8
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

46

Gravely 00663200

Bag Frame

$40.99

$

In Stock, only 2 left!

0

47

Gravely 00677000

Tube, Plastic 3/8 x 1/2 x 3"

$1.49

$

In Stock, only 2 left!

0

48

Gravely 03752900

Block Foam, 4"

$20.99

$

Usually ships in 4-12 days

0

49

Gravely 04346400

Foam, 9.00 x 1.00 x 1.25

$5.99

$

Usually ships in 4-12 days

0

50

Gravely 06533700

Nut, Center Locking .31-24
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

51

Gravely 05970500

Bolt, Hex .31-24 x .75 Grade 8
(Superseded to 05902019)

$2.49

$

Usually ships in 4-12 days

0

52

Gravely 00438000

Vane, Blade

$9.49

$

Usually ships in 4-12 days

0
