815043 - Gravely 42", 52", 60" Powered Bagger (SN: 000101 - 002999) Bagger Hood Assembly Parts Diagram

42", 52", 60" Powered Bagger

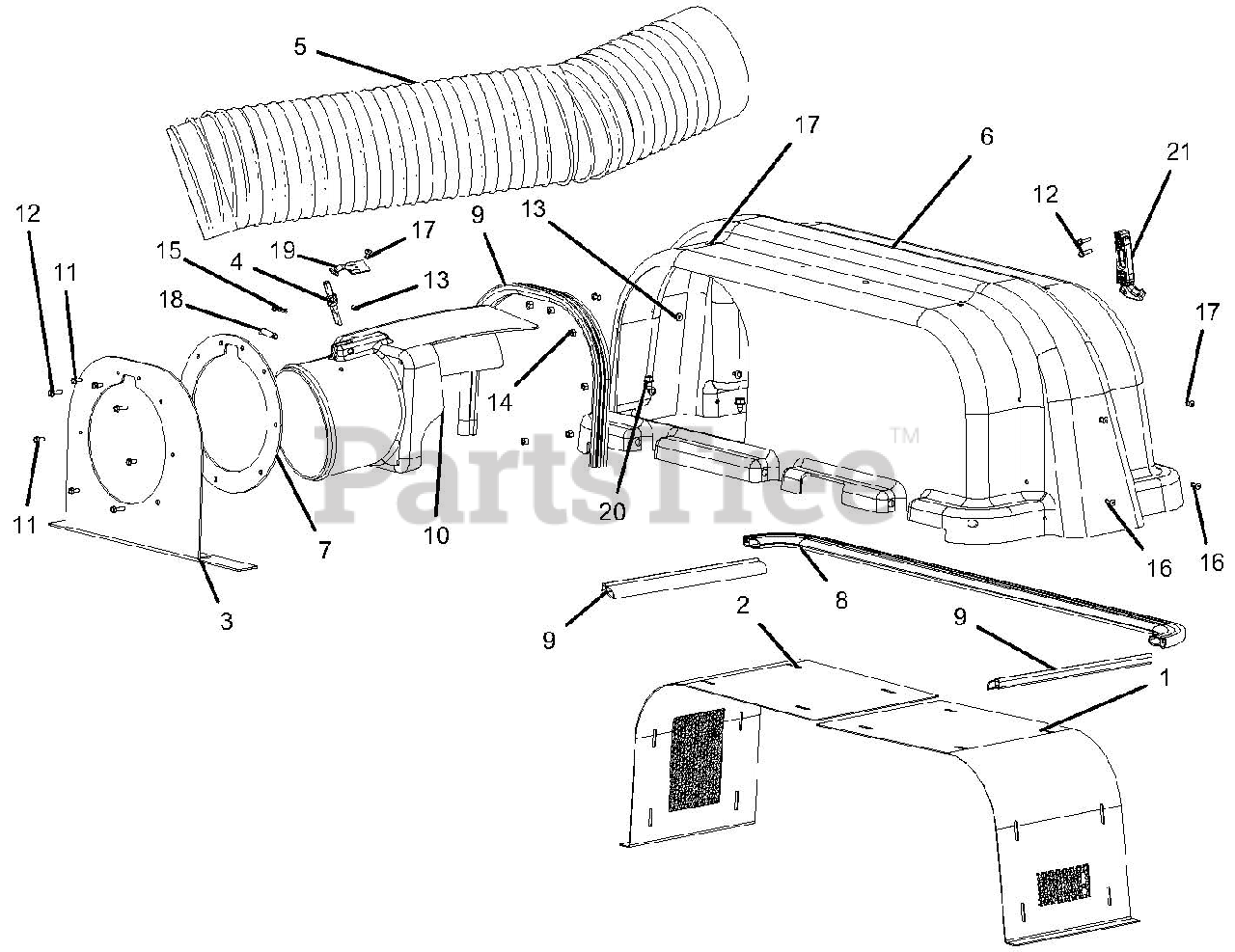

Bagger Hood Assembly Parts Diagram

  • Title

1

Gravely 04410051

WLDMT, BAGGER HOOD VENT, LH

Note: (BLACK)

$184.99

$

Usually ships in 4-12 days

0

2

Gravely 04431051

WLDMT, BAGGER HOOD VENT, RH

Note: (BLACK)

$62.99

$

Usually ships in 4-12 days

0

3

Gravely 04439700

WLDMT, TUBE SUPPORT

$

$

Not available

4

Gravely 00168300

INDICATOR, FLOW

$25.99

$

Usually ships in 4-12 days

0

5

Gravely 04222900

HOSE, FLEXIBLE-45"

$131.99

$

In Stock, Qty 5

0

6

Gravely 04409600

COVER, 2-BUCKET BAGGER

$232.99

$

Usually ships in 4-12 days

0

7

Gravely 04409900

SEAL, UPPER BOOT

$15.99

$

Usually ships in 4-12 days

0

8

Gravely 04410700

SEAL, BULB - BAGGER HOOD

$12.99

$

In Stock, only 2 left!

0

9

Gravely 04439500

SEAL, BULB

$13.99

$

In Stock, only 3 left!

0

10

Gravely 04446800

BOOT, UPPER

$118.99

$

Usually ships in 4-12 days

0

11

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 6

0

13

Gravely 06442700

WSHR-FL-STL.219X.500X.049YWZC
(Superseded to 06401123)

$1.49

$

Usually ships in 4-12 days

0

14

Gravely 06536000

NUT-LK-NYL #10-24 YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

16

Gravely 06800108

RVT-POP .187x.684 DOME

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 06803800

RVT-POP .187x.527 DOME

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06815300

PIN, CLEV .309X1.62 YWZC

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 07000026

LATCH, THUMB

$9.99

$

In Stock, only 2 left!

0

20

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 09079500

LATCH, RUBBER

$35.99

$

In Stock, Qty 13

0
