815043 - Gravely 42", 52", 60" Powered Bagger (SN: 000101 - 002999) Belt Drive Assembly Parts Diagram

42", 52", 60" Powered Bagger

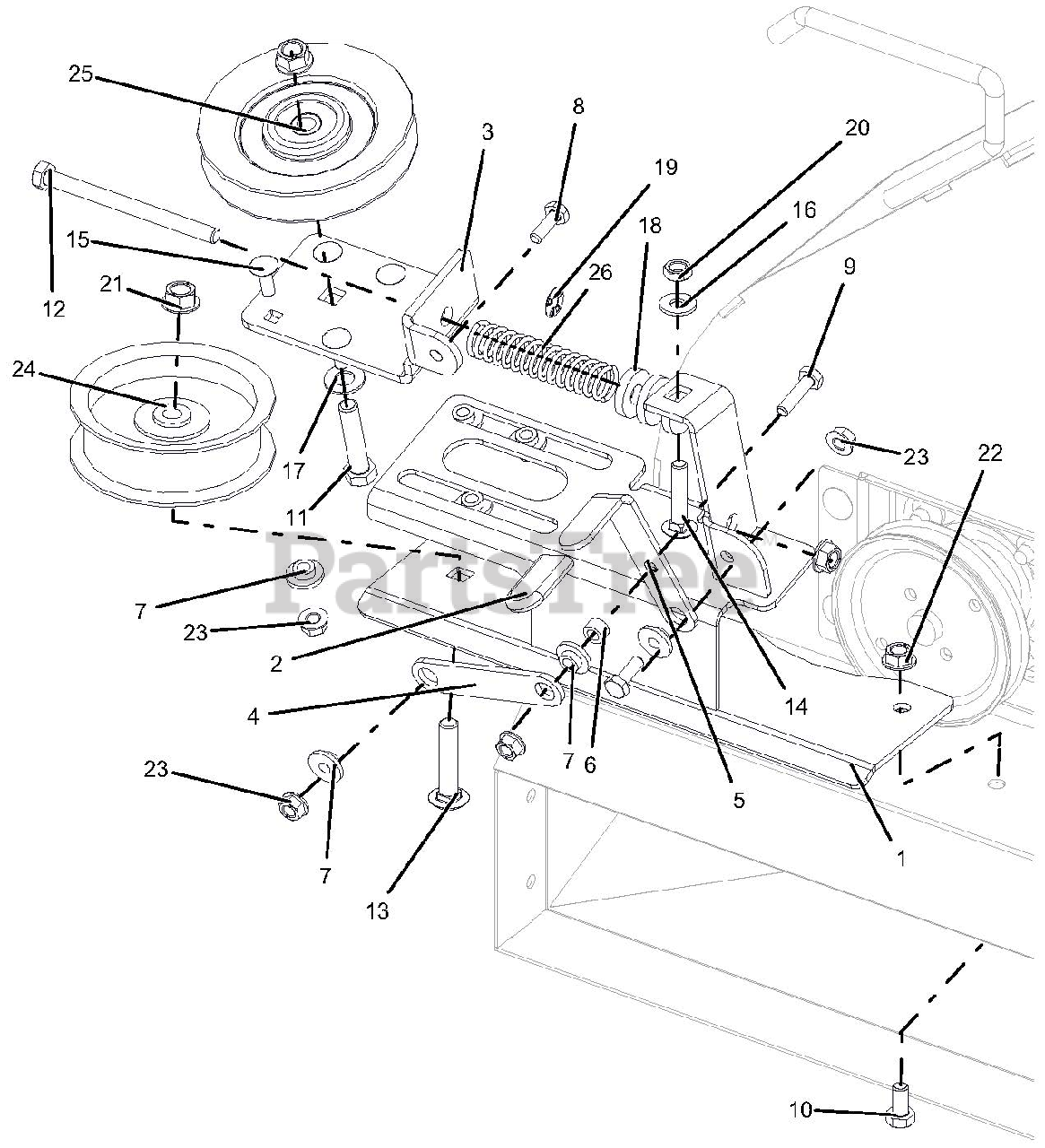

Belt Drive Assembly Parts Diagram

  • Title

1

Gravely 00853300

WLDMT, IDLER MOUNT

$77.99

$

Usually ships in 4-12 days

0

2

Gravely 04396600

GRIP, SEAT LEVER, GREY

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 04766200

BRKT, ADJ PULLEY IDLER

$34.99

$

Usually ships in 4-12 days

0

4

Gravely 04773951

LINK, TENSIONER

Note: (BLACK)

$7.99

$

Usually ships in 4-12 days

0

5

Gravely 04774051

HANDLE, TENSIONER

Note: (BLACK)

$13.99

$

Usually ships in 4-12 days

0

6

Gravely 05501121

BSHG-SLV .261X.44X.25

$3.99

$

In Stock, Qty 5

0

7

Gravely 05513400

BSHG, FLANGE .265X.437X.250X.750

$2.49

$

In Stock, only 1 left!

0

8

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

9

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

10

Gravely 05952200

BLT-HEX .31-18X.625 GR5 YWZC
(Superseded to 05901832)

$1.49

$

Usually ships in 4-12 days

0

11

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, only 4 left!

0

12

Gravely 05963200

BLT-HEX .31-18X4.00 GR5 YWZC
(Superseded to 05901834)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06200111

BLT-RHDSSQNK .38-16X1.75 G5YZ
(Superseded to 06200329)

$3.99

$

In Stock, only 1 left!

0

14

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5 YWZC
(Superseded to 06200233)

$1.49

$

In Stock, Qty 9

0

15

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5 YWZC
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

17

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZC
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 06514900

NUT, PUSH .312

$0.99

$

In Stock, Qty 13

0

20

Gravely 06536100

NUT, JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, only 1 left!

0

21

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0

22

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

24

Gravely 07300028

IDLER, FLANGE .38ID X 3.50

$39.99

$

In Stock, Qty 9

0

25

Gravely 07327600

IDLER, V, 4.00X.38

$37.99

$

In Stock, Qty 9

0

26

Gravely 08312100

SPRG, COMPRESSION

$11.99

$

In Stock, only 1 left!

0
