815043 - Gravely 42", 52", 60" Powered Bagger (SN: 003000 & Above) Belt Drive Assembly Parts Diagram

42", 52", 60" Powered Bagger

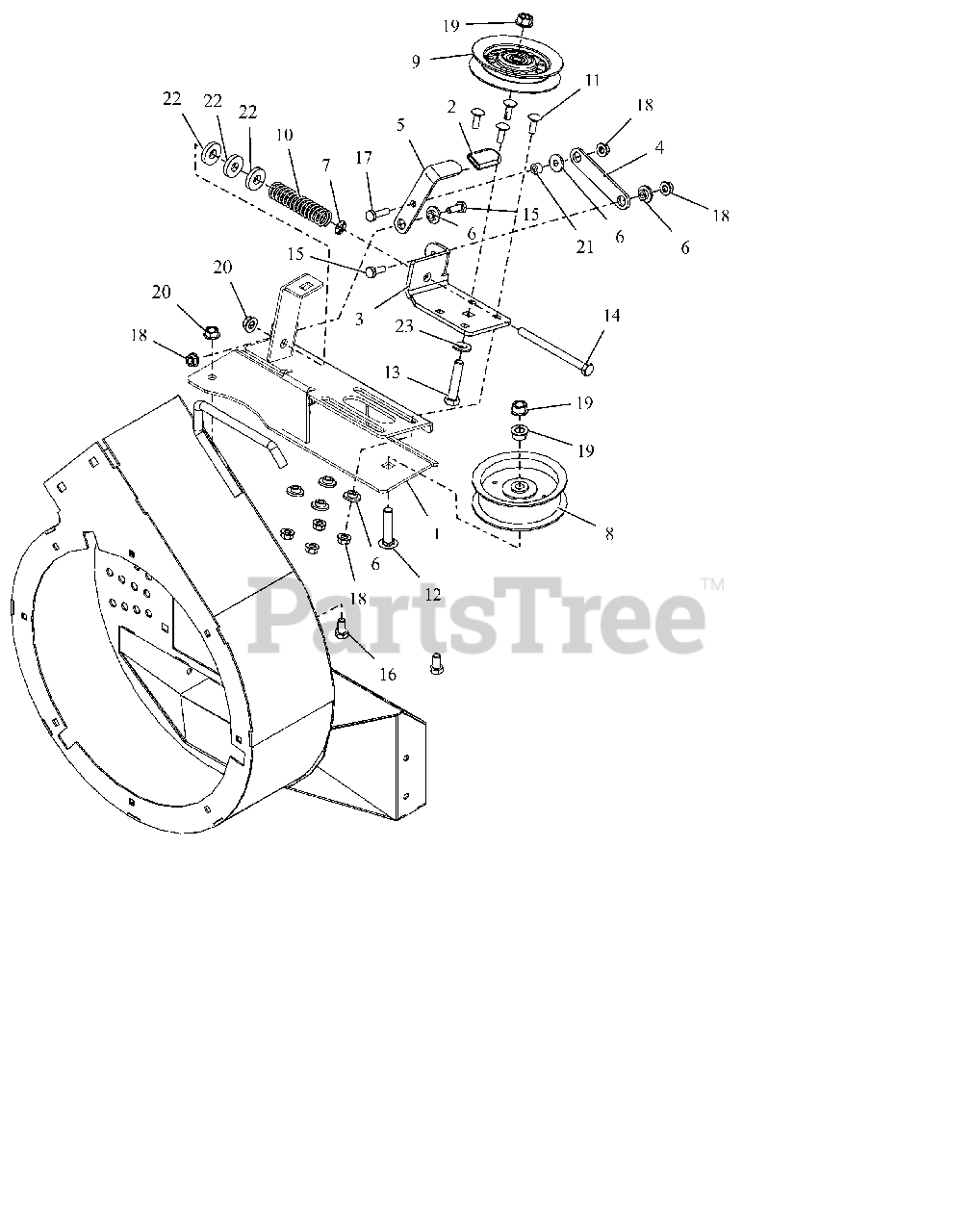

Belt Drive Assembly Parts Diagram

  • Title

1

Gravely 00853300

WELDMENT, IDLER MOUNT -2015

$79.99

$

Usually ships in 4-12 days

0

2

Gravely 04396600

GRIP, SEAT LEVER, GREY

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 04766200

BRACKET, ADJ. PULLEY IDLER

$35.99

$

Usually ships in 4-12 days

0

4

Gravely 04773951

LINK, TENSIONER

$8.49

$

Usually ships in 4-12 days

0

5

Gravely 04774051

HANDLE, TENSIONER

$13.99

$

Usually ships in 4-12 days

0

6

Gravely 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, only 4 left!

0

7

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

8

Gravely 07300028

IDLER, FLG .38ID X 3.50

$40.99

$

In Stock, Qty 20+

0

9

Gravely 07327600

V-IDLER, 4.00X.38

$39.99

$

In Stock, Qty 20+

0

10

Gravely 08312100

SG-COMP .092X.77X3.13 WLD 36

$11.99

$

In Stock, only 4 left!

0

11

Gravely 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 06200111

BLT-RHDSSQNK .38-16X1.75 G5YZ
(Superseded to 06200329)

$3.99

$

In Stock, Qty 8

0

13

Gravely 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

14

Gravely 05963200

@BLT-HEX .31-18X4.00 GR5 YWZC
(Superseded to 05901834)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

16

Gravely 05952200

BLT-HEX .31-18X.63 GR5 YWZC
(Superseded to 05901832)

$1.99

$

Usually ships in 4-12 days

0

17

Gravely 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, Qty 8

0

18

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

19

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05501121

BUSHING, .26 ID X .44 OD X .26

$3.99

$

In Stock, Qty 5

0

22

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

23

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0
