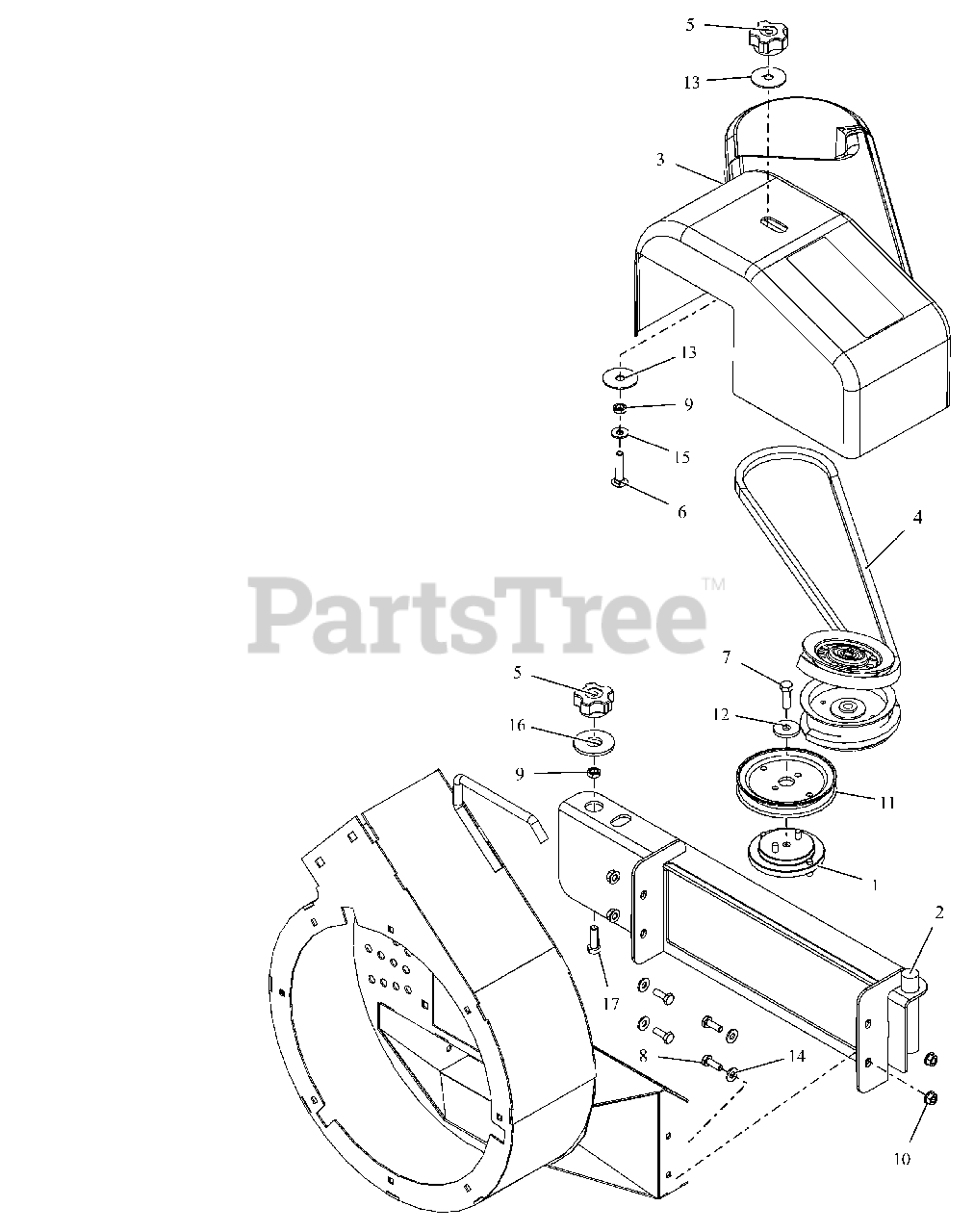

815043 - Gravely 42", 52", 60" Powered Bagger (SN: 003000 & Above) Belts And Covers Parts Diagram

42", 52", 60" Powered Bagger

Belts And Covers Parts Diagram

  • Title

1

Gravely 04774700

ASM, BAGGER SHEAVE ADAPTER
(Superseded to 51536600)

$92.99

$

Usually ships in 4-12 days

0

2

Gravely 04754851

WLDMT, GRASS PUMP MOUNT

$131.99

$

Usually ships in 4-12 days

0

3

Gravely 51586500

COVER, BAGGER BELT -W/DECAL

$187.99

$

Usually ships in 4-12 days

0

3

Gravely 04865451

WLDMT, BAGGER BELT COVER BRKT

Note: Part Not Shown

$25.99

$

In Stock, only 1 left!

0

3

Gravely 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

Note: Part Not Shown

$1.49

$

Usually ships in 4-12 days

0

3

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: Part Not Shown

$1.49

$

In Stock, Qty 20+

0

4

Gravely 07210200

V-BELT, HA-WRAPPED

$52.99

$

In Stock, only 2 left!

0

5

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

6

Gravely 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

7

Gravely 05901603

BLT-HEX .31-18X1.00 GR8 M-EPYZ
(Superseded to 05901833)

$3.99

$

In Stock, only 1 left!

0

8

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

9

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07344900

SHEAVE, SPINDLE (4.25 HA )

$18.99

$

Usually ships in 4-12 days

0

12

Gravely 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$4.99

$

In Stock, Qty 15

0

13

Gravely 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

14

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

15

Gravely 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06442900

@WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, only 4 left!

0

17

Gravely 05901311

BLT-HEX .31-18X1.00 GR8 YWZC
(Superseded to 05901802)

$1.99

$

In Stock, only 3 left!

0
