815047 - Ariens 52" Edge Bagger Kit (SN: 000101 & Above)

52" Edge Bagger Kit

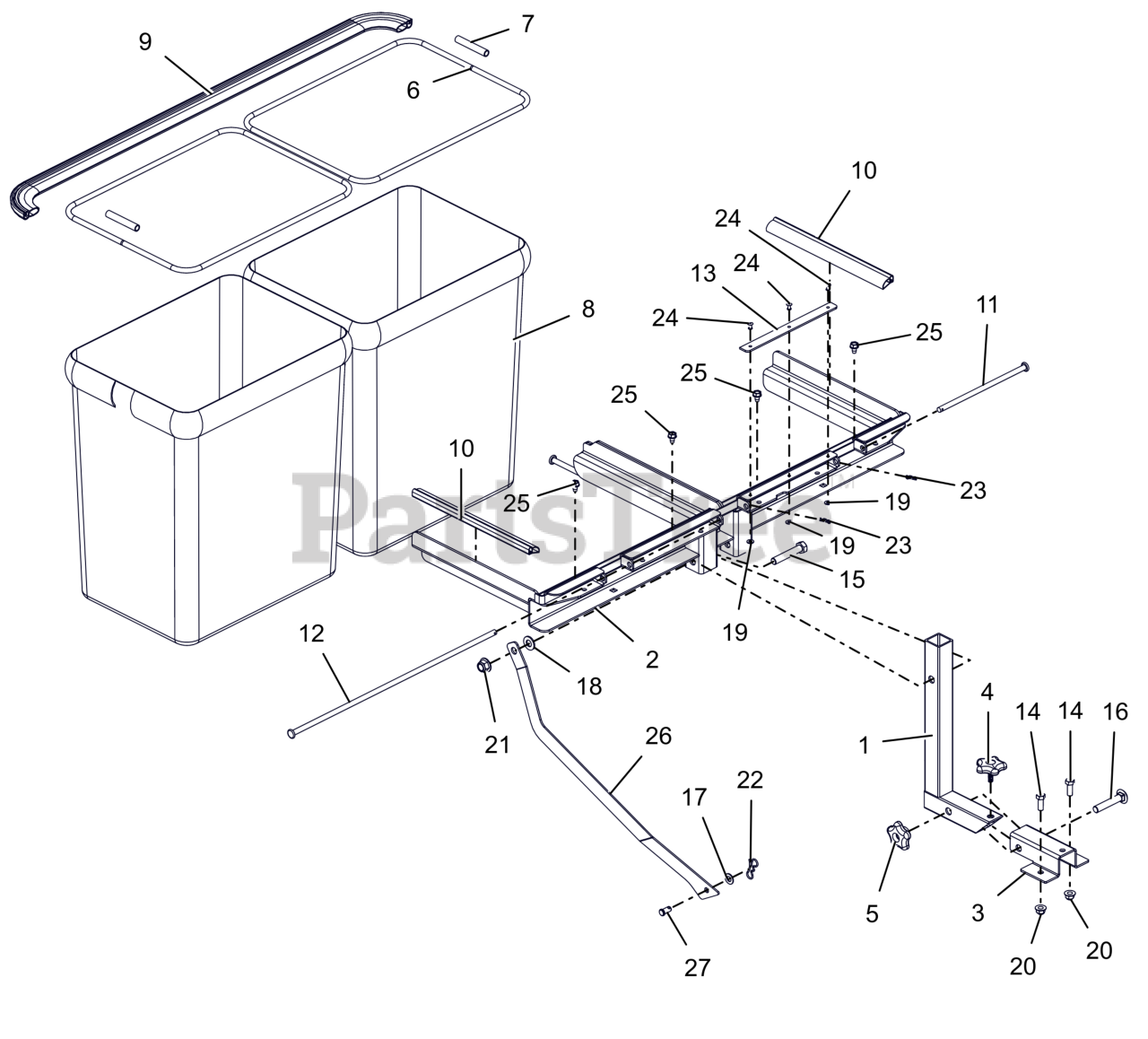

815047 - Ariens 52" Edge Bagger Kit (SN: 000101 & Above) > Parts Diagrams (5) > Bagger Frame Assembly

  • Title
04409751

1

BRKT, RECEIVER SLEEVE INSERT

Part# 04409751

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

04409551

2

ASS'Y, BAGGER FRAME UPPER

Part# 04409551

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $173.23

04409851

3

BRKT, RECEIVER LOWER

Part# 04409851

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

07500226

4

KNOB, WING STUDDED

Part# 07500226

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

07500225

5

KNOB, WING

Part# 07500225

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

00663200

6

FRAME, ZOOM BAG

Part# 00663200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

00677000

7

HOSE, .38 X.50 X 3.00 VINYL

Part# 00677000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03862900

8

BAG, MESH ZOOM

Part# 03862900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $73.73

04410700

9

SEAL, BULB - BAGGER HOOD

Part# 04410700

Note: sold per ft, order 4 ft

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

04439500

10

SEAL, BULK

Part# 04439500

Note: sold per ft, order 3 ft

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

04443400

11

PIN, BAGGER HINGE (L)

Part# 04443400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

04443500

12

PIN, BAGGER HINGE (R)

Part# 04443500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

04446700

13

SEAL, HINGE

Part# 04446700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05901711

14

BLT,HEX .38-16X1.00 G5 ZCC

Part# 05901711

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.03

05901836

15

BLT, HEX .50-13X2.75 G8 ZCC

Part# 05901836

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06200327

16

BLT, RHSN .50-13X2.75 G5 ZCC

Part# 06200327

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

06401013

17

WSHR,FLT .406X.812X.065 ZCC

Part# 06401013

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.88

06401015

18

WSHR,FLT .531X1.062X.095 ZCC

Part# 06401015

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.88

06401123

19

WSHR, FLT .219X.500X.049 ZCC

Part# 06401123

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

06500726

20

NUT,NYL-FLG .38-16 GF ZCC

Part# 06500726

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.72

06500810

21

NUT,NYL-FLG .50-13 GF ZCC

Part# 06500810

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

06700220

22

PIN, BOWTIE .091X1.875 ZCC

Part# 06700220

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06700223

23

PIN, HAIR #225 .072X1.09

Part# 06700223

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06803800

24

RVT-POP.187X.527 DOME ST

Part# 06803800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07400124

25

SCR,TAP .312-18X.50 HWH TR ZCC

Part# 07400124

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.88

09171251

26

BRKT, BAG FRAME SUPPORT BAR (BLACK)

Part# 09171251

OEM Warranty Repair Part for Ariens

Currently unavailable

06814800

27

PIN-CLEV .38X.75 YWZC

Part# 06814800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30
