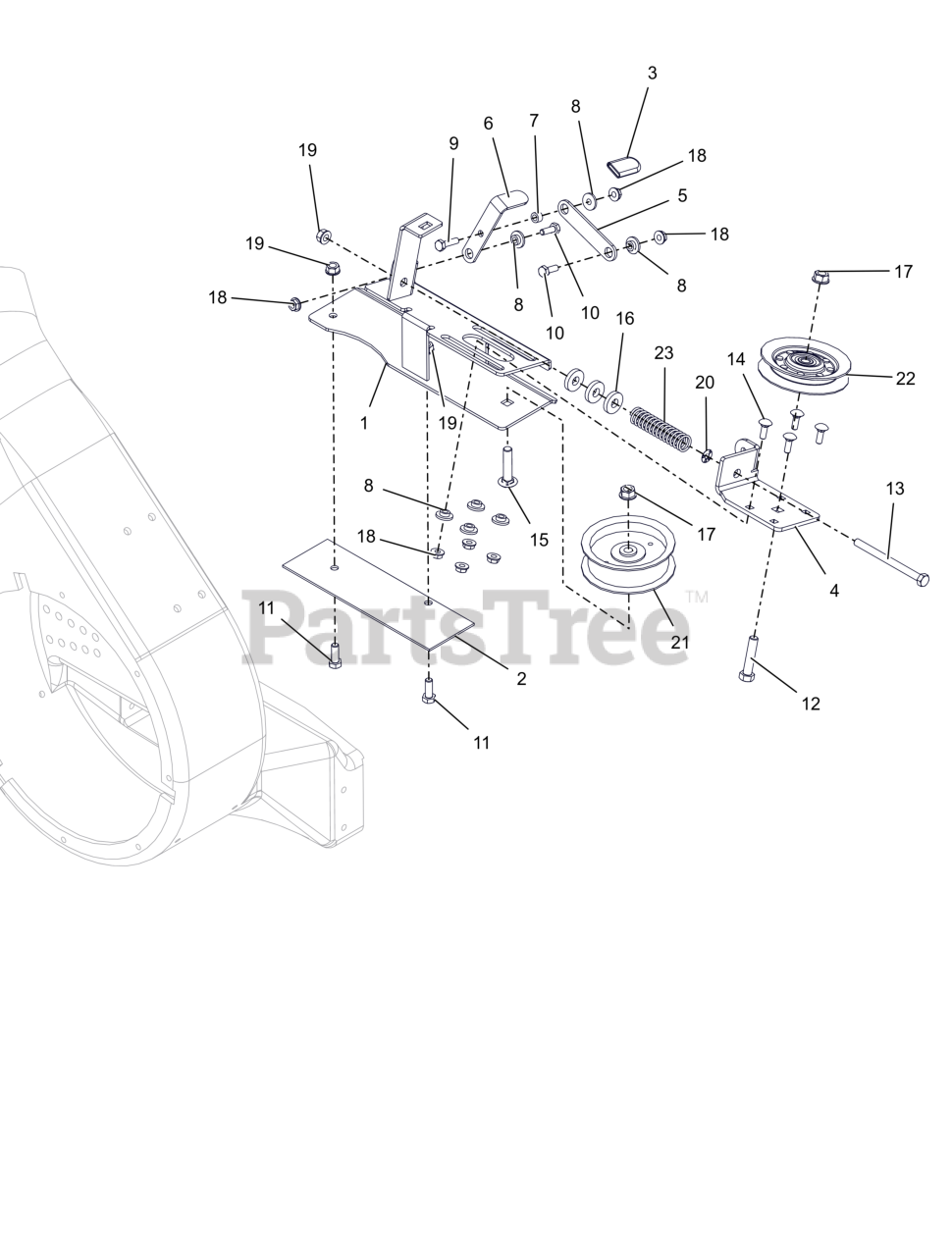

815048 - Ariens 48" Power Bagger (SN: 000101 & Above) Belt Drive Assembly Parts Diagram

48" Power Bagger

Belt Drive Assembly Parts Diagram

  • Title

1

Ariens 00853300

WELDMENT, IDLER MOUNT -2015

$77.99

$

Usually ships in 4-12 days

0

2

Ariens 00174451

PLATE,BACK

$17.99

$

Usually ships in 4-12 days

0

3

Ariens 04396600

GRIP, SEAT LEVER, GREY

$2.99

$

Usually ships in 4-12 days

0

4

Ariens 04766200

BRACKET, ADJ. PULLEY IDLER

$34.99

$

Usually ships in 4-12 days

0

5

Ariens 04773951

LINK, TENSIONER

$7.99

$

Usually ships in 4-12 days

0

6

Ariens 04774051

HANDLE, TENSIONER

$13.99

$

Usually ships in 4-12 days

0

7

Ariens 05501121

BUSHING, .26 ID X .44 OD X .26

$3.99

$

In Stock, Qty 5

0

8

Ariens 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, Qty 9

0

9

Ariens 05901639

BLT,HEX .25-20X1.00 G5 ZCC

$2.49

$

In Stock, Qty 7

0

10

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 12

0

11

Ariens 05901801

BLT, HEX .31-18X.875 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 05901809

BLT, HEX .38-16X1.75 G5 ZCC

$1.49

$

In Stock, only 2 left!

0

13

Ariens 05901834

BLT, HEX .31-18X4.00 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06200329

BLT, RHSSN .38-16X1.75 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

16

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

17

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 6

0

19

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 13

0

21

Ariens 07300028

IDLER, FLG .38ID X 3.50

$39.99

$

In Stock, Qty 11

0

22

Ariens 07327600

V-IDLER, 4.00X.38

$37.99

$

In Stock, Qty 10

0

23

Ariens 08312100

SG-COMP .092X.77X3.13 WLD 36

$10.99

$

Usually ships in 4-12 days

0
