815052 - Gravely 52" Edge/ZT Bagger (SN: 000101 & Above) Bagger Frame Assembly Parts Diagram

52" Edge/ZT Bagger

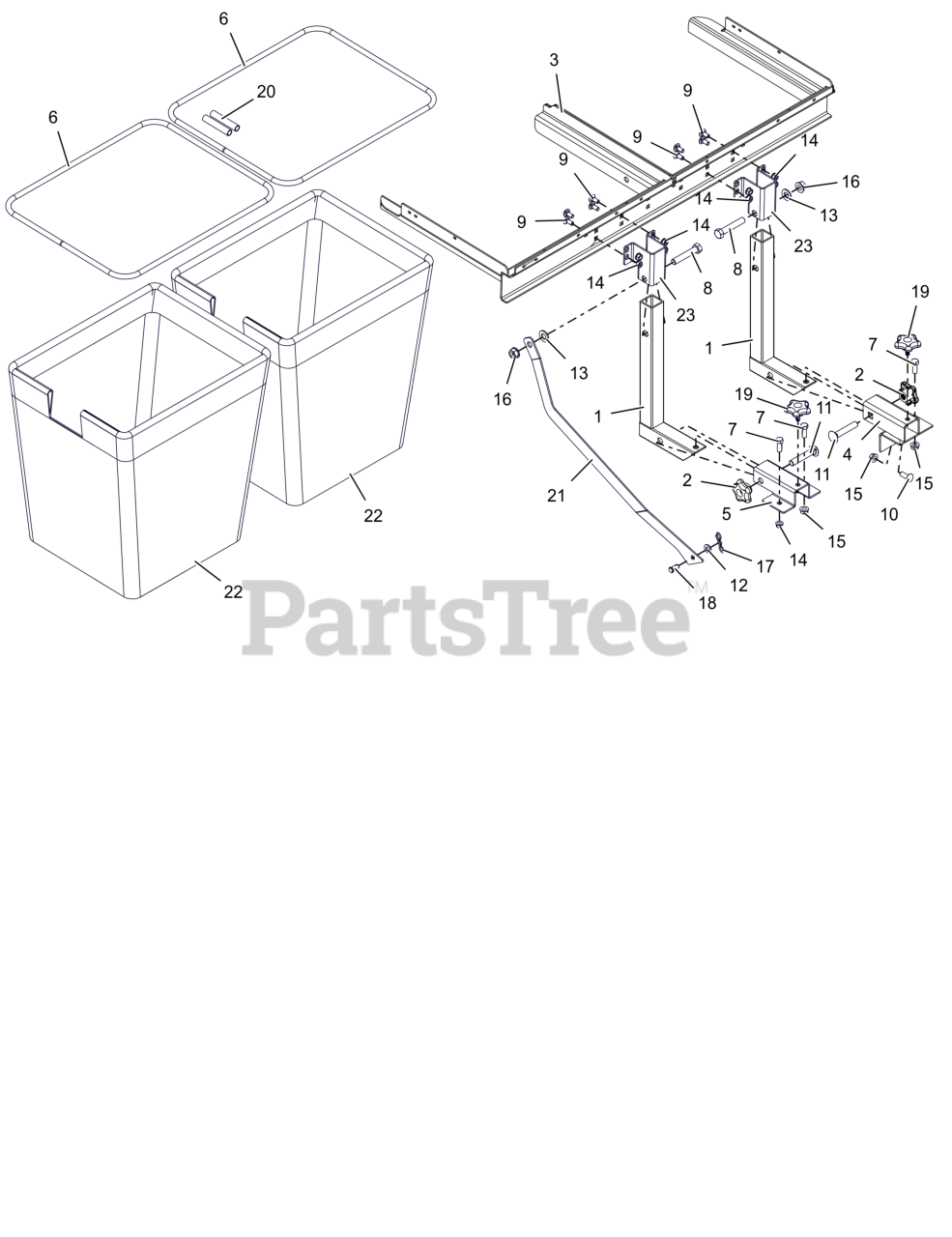

Bagger Frame Assembly Parts Diagram

  • Title

1

Gravely 04409751

BRKT, RECEIVER SLEEVE INSERT

$42.99

$

In Stock, only 2 left!

0

2

Gravely 07500225

KNOB, WING

$22.99

$

Usually ships in 4-12 days

0

3

Gravely 09684851

WLDMT, BAGGER FRAME (BLACK)

$197.99

$

Usually ships in 4-12 days

0

4

Gravely 30199951

WLDMT, BAGGER MOUNT, LOWER (BLACK)

$34.99

$

Usually ships in 0 days

0

5

Gravely 04409851

BRKT, RECEIVER LOWER

$35.99

$

In Stock, only 3 left!

0

6

Gravely 05194800

FRAME, BAG

$46.99

$

In Stock, only 1 left!

0

7

Gravely 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

8

Gravely 05901836

BLT, HEX .50-13X2.75 G8 ZCC

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

10

Gravely 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06200327

BLT, RHSN .50-13X2.75 G5 ZCC

$10.99

$

Usually ships in 4-12 days

0

12

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06401015

WSHR,FLT .531X1.062X.095 ZCC

$1.49

$

In Stock, Qty 7

0

14

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06700220

PIN, BOWTIE .091X1.875 ZCC

$2.99

$

In Stock, Qty 20+

0

18

Gravely 06814800

PIN-CLEV .38X.75 YWZC

$3.99

$

In Stock, only 3 left!

0

19

Gravely 07500226

KNOB, WING STUDDED

$3.99

$

In Stock, Qty 20+

0

20

Gravely 07500425

HOSE, VINYL

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 09171251

BRKT, BAG FRAME SUPPORT BAR (BLACK)

$54.99

$

In Stock, only 1 left!

0

22

Gravely 30137900

BAG- MESH - 19 INCHES LONG

$52.99

$

Usually ships in 4-12 days

0

23

Gravely 30199851

BRKT, BAGGER MOUNT, UPPER

$26.99

$

Usually ships in 0 days

0
