8157 A - Lawn-Boy Walk-Behind Mower (SN: F00000001 - F99999999) (1987) HOUSING AND SHROUD GROUP MODEL: 8157A Parts Diagram

Walk-Behind Mower

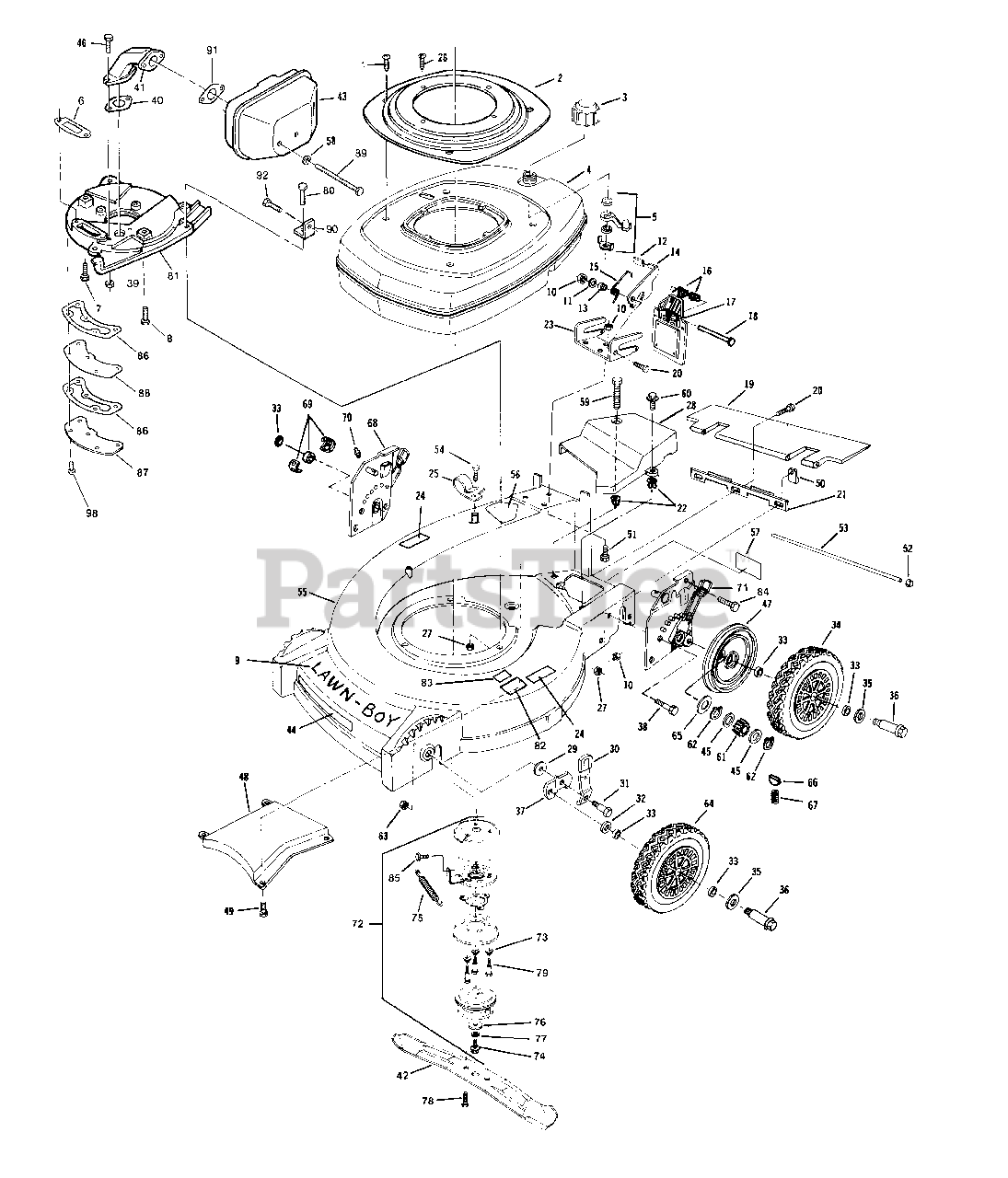

HOUSING AND SHROUD GROUP MODEL: 8157A Parts Diagram

  • Title

1

Lawn-Boy 612526

Screw
(Superseded to 611381)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 683639

Starter Base and Nut Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 682755

Fuel Cap

Note: Important Note: Replacement parts may not always be available in matching colors.

$21.99

$

In Stock, Qty 6

0

Lawn-Boy 607213

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

Lawn-Boy 609150

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 9

0

4

Lawn-Boy 683851

Shroud Tank and Valve Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 683077

Fuel Shut-Off Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 609420

Gasket-Exhaust
(Superseded to 93-1233)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 16

0

7

Lawn-Boy 609994

Screw-Muffler to Block

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 607601

Screw-Muffler Plate to Block

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 5

0

9

Lawn-Boy 612913

Decal-Lawn-Boy

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 602315

Nut-Latch Brk't. and Trl. Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

11

Lawn-Boy 611485

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 612658

Knob-Latch

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 611484

Stepped Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 611486

Lever-Latch

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 611491

Spring-Latch

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 611480

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 683039

Door

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 611493

Rod

Note: Important Note: Replacement parts may not always be available in matching colors.

$8.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 611495

Shield-Trailing

Note: Important Note: Replacement parts may not always be available in matching colors.

$41.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 609892

Screw-Latch Bracket and Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 612363

Bracket-Bag Hanger

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 611496

Hinge Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 612071

Decal-Height Adjuster

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 612233

Clamp-Cable and Primer Hose to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 612428

Screw-Starter Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

27

Lawn-Boy 608311

Nut-Height Adjuster to Housing and Muffler Plate to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 684055

Cover-Belt

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 608834

Washer-Wheel Height Adjuster

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 153444

Knob and Spring Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 610646

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 603620

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

33

Lawn-Boy 605255

Washer-Felt

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

34

Lawn-Boy 683622

Wheel and Tire Assembly 8" SP
(Superseded to 683626)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 605256

Washer-Wheel Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

36

Lawn-Boy 603441

Bolt-Shoulder Wheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

37

Lawn-Boy 608833

Bracket-Wheel Height Adjuster
(Superseded to 608833-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 2 left!

0

38

Lawn-Boy 610404

Bolt-Height Adjuster Assembly
(Superseded to 146209)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 602315

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

40

Lawn-Boy 612602

Gasket-Exhaust

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 683679

Pipe-Exhaust

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 683684

Blade 20"
(Superseded to 612541-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 683861

Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 612893

Decal-Headliner

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 612068

Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 612603

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 611805

Cover-Wheel
(Superseded to 613512)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 611497

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 7

0

50

Lawn-Boy 611602

Clamp-Rod

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 609891

Screw-Truss Head
(Superseded to 700138)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 609975

Nut-Rod

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 610026

Rod-Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 611503

Screw-Clamp to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 683797

Housing-20" Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 610640

Decal-Bld Contact Wrng.
(Superseded to 43-8480)

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 8

0

57

Lawn-Boy 611533

Decal-Caution

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 607693

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 611849

Screw-Hex Head

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

60

Lawn-Boy 612055

Screw-Shoulder Idler

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

61

Lawn-Boy 612064

Pinion

Note: Important Note: Replacement parts may not always be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

62

Lawn-Boy 607676

Retaining Ring

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 8

0

63

Lawn-Boy 603773

Nut-Wheel Height Adjust

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 19

0

64

Lawn-Boy 683179

Wheel and Tire Assembly 8"

Note: Important Note: Replacement parts may not always be available in matching colors.

$104.99

$

In Stock, only 2 left!

0

65

Lawn-Boy 608030

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

66

Lawn-Boy 612066

Key

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

67

Lawn-Boy 612067

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, only 1 left!

0

68

Lawn-Boy 683741

Height Adjuster Asy.-R.H.
(Superseded to 684172)

Note: Important Note: Replacement parts may not always be available in matching colors.

$270.99

$

Usually ships in 3-6 days

0

69

Lawn-Boy 683195

Bearing and Retainer Asy.

Note: Important Note: Replacement parts may not always be available in matching colors.

$31.99

$

In Stock, only 2 left!

0

70

Lawn-Boy 603615

Fitting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

71

Lawn-Boy 683742

Height Adjuster Asy.-L.H.
(Superseded to 683688)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683195

Bearing and Retainer Asy.

Note: Important Note: Replacement parts may not always be available in matching colors.

$31.99

$

In Stock, only 2 left!

0

Lawn-Boy 603615

Fitting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

72

Lawn-Boy 684050

Clutch Assembly
(Superseded to 684092)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

73

Lawn-Boy 611418

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

74

Lawn-Boy 611417

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

75

Lawn-Boy 611415

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$58.99

$

Usually ships in 3-6 days

0

76

Lawn-Boy 611412

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$30.99

$

Usually ships in 3-6 days

0

77

Lawn-Boy 611413

Lockwasher

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

78

Lawn-Boy 611398

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

79

Lawn-Boy 611399

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

80

Lawn-Boy 612640

Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

81

Lawn-Boy 612601

Mounting Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

82

Lawn-Boy 609961

Starting Pad

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

83

Lawn-Boy 145252

Decal

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

84

Lawn-Boy 146012

Bolt
(Superseded to 3230-3)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

85

Lawn-Boy 611318

Bolt-Cable to Arm

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

86

Lawn-Boy 612271

Gasket-Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

87

Lawn-Boy 612272

Cover Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

88

Lawn-Boy 612273

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

89

Lawn-Boy 612275

Screw
(Superseded to 321-34)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

90

Lawn-Boy 612282

Bracket-Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

91

Lawn-Boy 612290

Gasket-Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

92

Lawn-Boy 609947

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

Lawn-Boy 146014

Waher-Shim

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 146015

Washer-Shim

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

Lawn-Boy 611831

Lube Fitting-Rear Wheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

Usually ships in 3-6 days

0
