817 (590-817-100) - Cub Cadet Front Hitch att Front Hitch Assembly Parts Diagram

Front Hitch

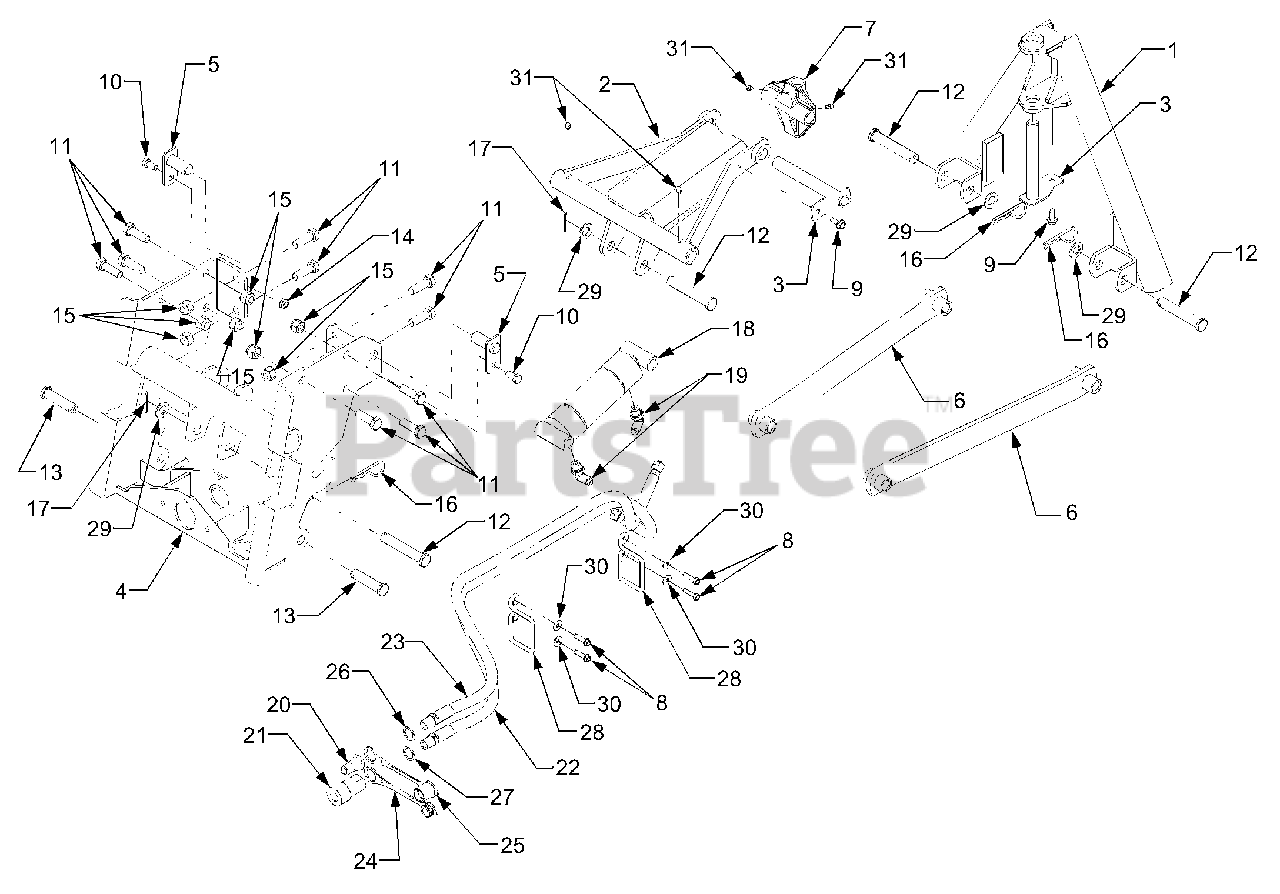

Front Hitch Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0804-0637

Frame, Hitch A
(Superseded to 603-0804)

$

$

Not available

2

Cub Cadet 603-0805-0637

Link, Top Pivot

$

$

Not available

3

Cub Cadet 603-0806

Pin Assembly, Hitch Pivot

$

$

Not available

4

Cub Cadet 603-04092-0637

Brace Assembly, Front Hitch

$

$

Not available

5

Cub Cadet 603-0809

Pin Assembly, Hitch Pivot

$42.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 603-0907-0637

Arm, Front Hitch

$

$

Not available

7

Cub Cadet 619-3075

Housing, Pivot

$

$

Not available

8

Cub Cadet 710-0788

Screw, Hex Wash Hd Tapp 1/4-20 x 1.0

$6.99

$

In Stock, only 4 left!

0

9

Cub Cadet 710-1260A

Screw, Hex Wash Hd Tapp 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3119

Screw, Hex Cap Lock 3/8-16 x .75 GR5

$6.49

$

In Stock, Qty 14

0

11

Cub Cadet 710-3181

Screw, Hex Cap 1/2-13 x 1.50 GR5

$6.49

$

In Stock, only 1 left!

0

12

Cub Cadet 711-1625

Pin, Clevis, .625 x 3.45

$

$

Not available

13

Cub Cadet 711-1626

Pin, Clevis, .625 x 2.313

$40.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-3020

Nut, Hex Insert Lock, 3/8-16 GR5
(Superseded to 912-3020)

$5.99

$

In Stock, Qty 11

0

15

Cub Cadet 712-3083

Nut, Hex Insert Lock, 1/2-13 GR8

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0117

Pin, Internal Cotter

$3.99

$

In Stock, Qty 11

0

17

Cub Cadet 714-0470

Pin, Cotter, 1/8 x 1.25

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 717-3519

Cylinder, Hitch Lift

$

$

Not available

19

Cub Cadet 727-3012

Fitting, 90°.

$24.99

$

In Stock, only 4 left!

0

20

Cub Cadet 727-3224

Coupling, Hydraulic - Male

$118.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 727-3225

Coupling, Hydraulic - Female

$83.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 727-3231A

Hose, Hydraulic, 1/4 ID x 42.0

$

$

Not available

23

Cub Cadet 727-3232A

Hose, Hydraulic, 1/4 ID x 46.0

$

$

Not available

24

Cub Cadet 727-3261

Plug, Hydraulic Coupler - Male

$

$

Not available

25

Cub Cadet 727-3262

Plug, Hydraulic Coupler - Female

$

$

Not available

26

Cub Cadet 731-3376

Washer, Indicator - Green

$

$

Not available

27

Cub Cadet 731-3377

Washer, Indicator - Blue

$

$

Not available

28

Cub Cadet 732-1173A

Rod, Hose Support

$

$

Not available

29

Cub Cadet 736-0237

Washer, Flat, .65 x 1,25 x .075

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 736-3090

Washer, Flat, .26 x .72 x .06

$6.49

$

In Stock, only 3 left!

0

31

Cub Cadet 737-3000

Fitting, Lube
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0
