817004 - Gravely 10' Grader (SN: 000101 & Above)

10' Grader

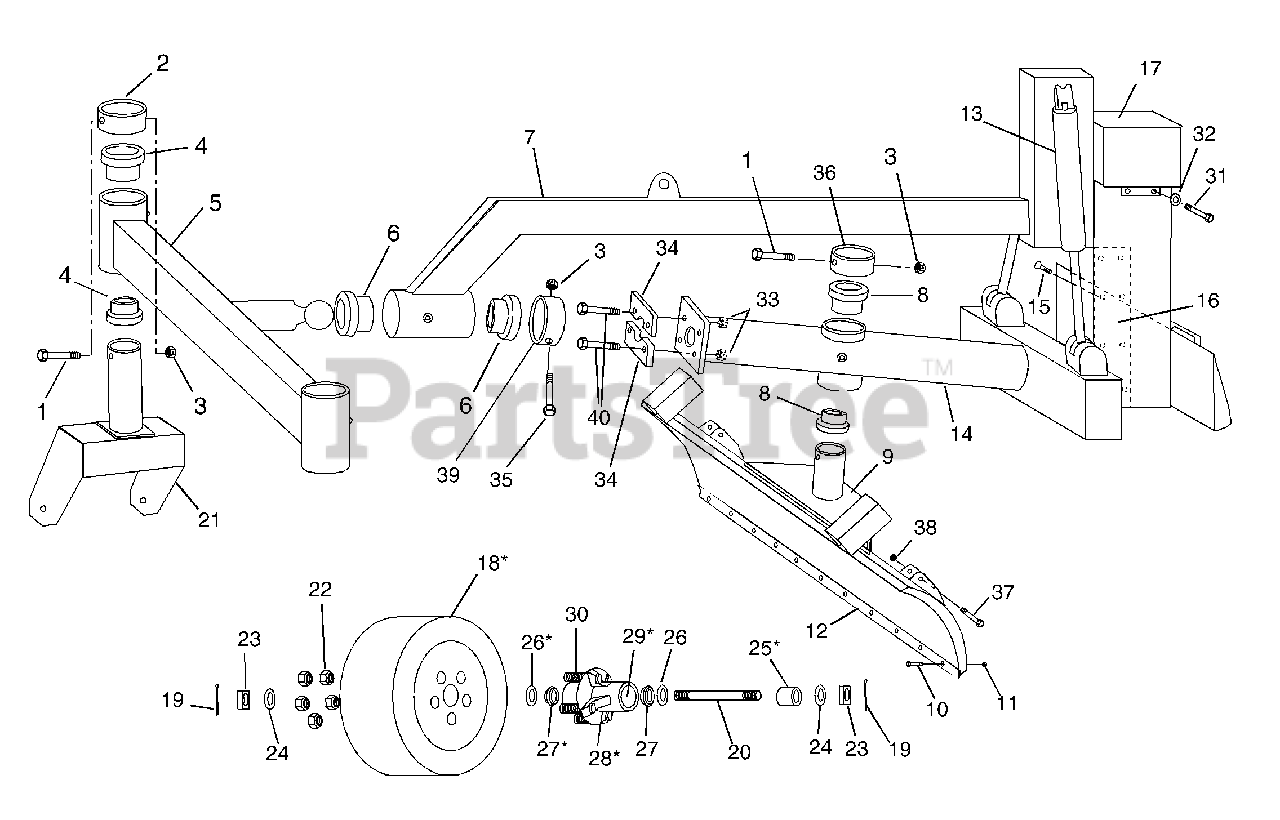

817004 - Gravely 10' Grader (SN: 000101 & Above) > Parts Diagrams (4) > Main Frame

  • Title
05974300

1

Bolt .44-14 x 4 Grade 5

Part# 05974300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01703600

2

Retainer Collar

Part# 01703600

OEM Warranty Repair Part for Gravely

Not available

06536400

3

Nut-Lk-Ctr .44-14

Part# 06536400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

05532800

4

Wheel Pivot Bushing

Part# 05532800

OEM Warranty Repair Part for Gravely

Not available

01702800

5

Front Beam

Part# 01702800

OEM Warranty Repair Part for Gravely

Not available

05532700

6

Beam Pivot Bushing

Part# 05532700

OEM Warranty Repair Part for Gravely

Not available

01703100

7

Main Frame

Part# 01703100

OEM Warranty Repair Part for Gravely

Not available

05532600

8

Blade Pivot Bushing

Part# 05532600

OEM Warranty Repair Part for Gravely

Not available

01701700

9

Blade Assembly

Part# 01701700

Note: (Model 001)

OEM Warranty Repair Part for Gravely

Not available

01703200

9

Blade Assembly

Part# 01703200

Note: (Model 004)

OEM Warranty Repair Part for Gravely

Not available

07013300

10

Plow Bolt .50-13 x 1.50

Part# 07013300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06536300

11

Lk-Ctr Nut .50-13

Part# 06536300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

01701800

12

Cutting Blade

Part# 01701800

OEM Warranty Repair Part for Gravely

Not available

01701000

13

Cylinders

Part# 01701000

OEM Warranty Repair Part for Gravely

Not available

01703300

14

Torsion Beam

Part# 01703300

OEM Warranty Repair Part for Gravely

Not available

05974400

15

Flathead Screw 5/16-18 x .625

Part# 05974400

OEM Warranty Repair Part for Gravely

Not available

01701600

16

Plastic Tube Guide

Part# 01701600

OEM Warranty Repair Part for Gravely

Not available

01702300

17

Valve Cover

Part# 01702300

OEM Warranty Repair Part for Gravely

Not available

07101400

18

Tire, Hub, and Wheel Assembly

Part# 07101400

OEM Warranty Repair Part for Gravely

Not available

06714100

19

Cotter Pin .125 x 2.00

Part# 06714100

OEM Warranty Repair Part for Gravely

Not available

01701500

20

Axle Shaft 1"

Part# 01701500

OEM Warranty Repair Part for Gravely

Not available

01702900

21

Fork Assembly

Part# 01702900

OEM Warranty Repair Part for Gravely

Not available

06542800

22

Nut

Part# 06542800

OEM Warranty Repair Part for Gravely

Not available

06519000

23

Nut-Sl 1.0-14

Part# 06519000

OEM Warranty Repair Part for Gravely

Not available

06430000

24

Washer-Fl-Stl 1.062 x 2 x .134

Part# 06430000

OEM Warranty Repair Part for Gravely

Not available

01701300

25

Spacer 1.250 x 1.00 x .62

Part# 01701300

OEM Warranty Repair Part for Gravely

Not available

05619300

26

Oil Seal

Part# 05619300

OEM Warranty Repair Part for Gravely

Not available

05406900

27

Bearing Cone

Part# 05406900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $17.83

01701200

28

Hub

Part# 01701200

OEM Warranty Repair Part for Gravely

Not available

05429600

29

Bearing Race

Part# 05429600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

07059500

30

Mounting Bolt

Part# 07059500

OEM Warranty Repair Part for Gravely

Not available

07412000

31

Screw, Tap .25-20 x .50

Part# 07412000 (Superseded to 07400034)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06437300

32

Washer-Fl-Stl .281 x .62 x .065

Part# 06437300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

06535300

33

Nut-Lk-Ctr .62-11

Part# 06535300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

01703400

34

Pivot Ball Plate, Half

Part# 01703400

OEM Warranty Repair Part for Gravely

Not available

05964200

35

Bolt-Hex .44-14 x 5 Grade 5

Part# 05964200

OEM Warranty Repair Part for Gravely

Not available

01701710

36

Blade Collar

Part# 01701710

OEM Warranty Repair Part for Gravely

Not available

05957800

37

Bolt-Hex .38-16 x 3 Grade 5

Part# 05957800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06529600

38

Nut-Lk-Ctr .38-16

Part# 06529600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

01703500

39

Collar, Retainer

Part# 01703500

OEM Warranty Repair Part for Gravely

Not available

05964200

40

Bolt-Hex .44-14 x 5 Grade 5

Part# 05964200

OEM Warranty Repair Part for Gravely

Not available

07153400

Wheel assembly, w/tire and hub

Part# 07153400

Note: (Includes items 18, 25-29)

OEM Warranty Repair Part for Gravely

Not available
