817006 - Gravely Grader Brush (SN: 000101 & Above) Main Frame Parts Diagram

Grader Brush

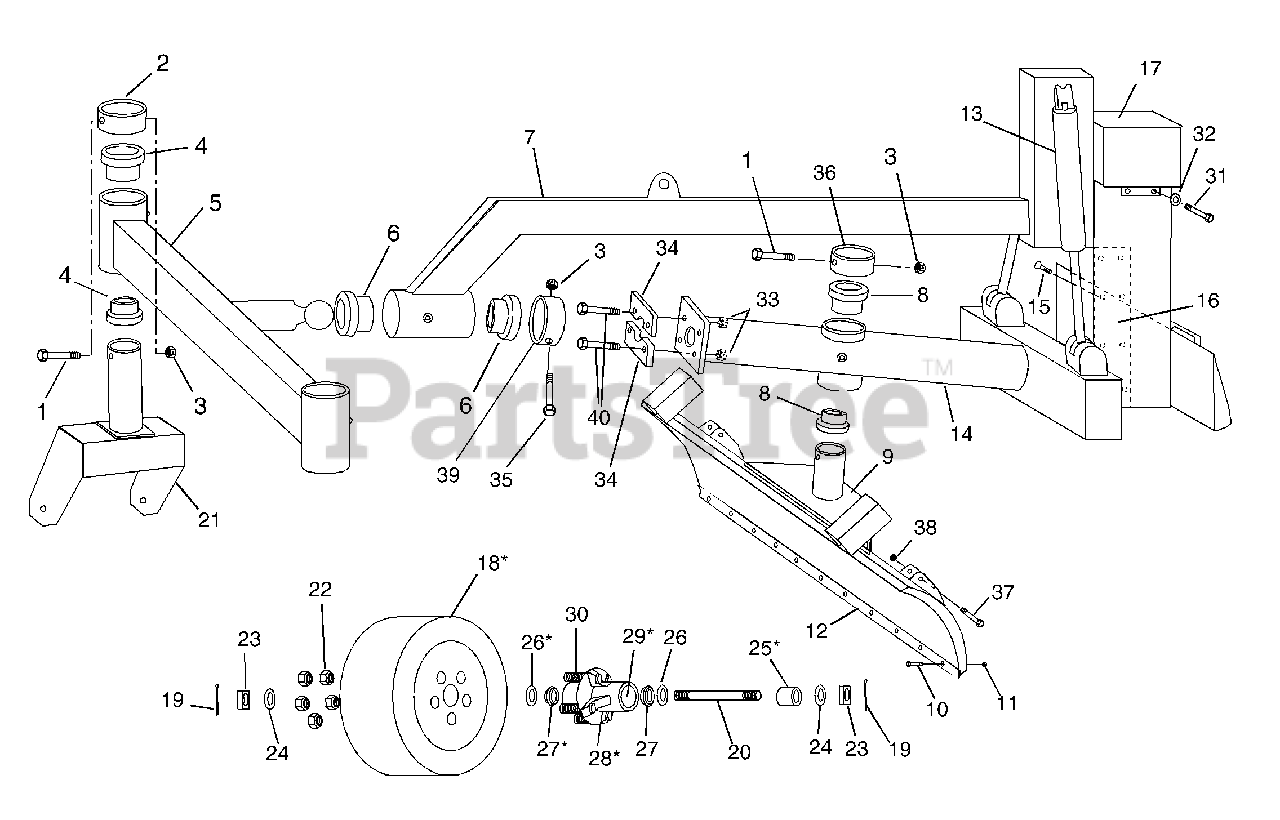

Main Frame Parts Diagram

  • Title

1

Gravely 05974300

BLT-HEX .44-14X4.00 GR5 YWZC

$

$

Not available

2

Gravely 01703600

COLLAR, RETAINER 1.75 I.D.

$

$

Not available

3

Gravely 06536400

NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

$3.49

$

In Stock, only 4 left!

0

4

Gravely 05532800

1.753ID X 2.254ODX2.5LG/3"FLG

$

$

Not available

5

Gravely 01702800

WELDMENT FRT BEAM 8'GRADER

$

$

Not available

6

Gravely 05532700

2.752"IDX3.25"ODX1.5"LGX4"FLNG

$

$

Not available

7

Gravely 01703100

LARGE MAINFRAME WELDMENT 8'

$

$

Not available

8

Gravely 05532600

2"IDX2.25"ODX2.75L 3"FLANGE

$

$

Not available

9

Gravely 01701700

BLADE WELDMENT

Note: (Model 001)

$

$

Not available

Gravely 01703200

BLADE WELDMENT 10'

Note: (Model 004)

$

$

Not available

10

Gravely 07013300

BLT-PLOW .50-13X1.50

$

$

Not available

11

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

12

Gravely 01701800

CUTTING BLADE PAINTED 8'

$

$

Not available

13

Gravely 01701000

HYD CYL 16" STRK LEVELING

$

$

Not available

14

Gravely 01703300

TORSION TUBE WELDMENT 8'

$

$

Not available

15

Gravely 05974400

FLT/HD SCRW 5/16-18X.625

$

$

Not available

16

Gravely 01701600

TUBE GUIDE PLASTIC U H M W

$

$

Not available

17

Gravely 01702300

PLASTIC VALVE COVER

$

$

Not available

18

Gravely 07101400

WHL

$

$

Not available

19

Gravely 06714100

PIN-CTR .125X2.00 YWZC

$

$

Not available

20

Gravely 01701500

AXLE SHAFT 1" X12.50

$

$

Not available

21

Gravely 01702900

CASTER WELDMENT

$

$

Not available

22

Gravely 06542800

.50-20 UNF 2BTHD,RH

$

$

Not available

23

Gravely 06519000

NUT-SL 1.0-14 PL (ND)

$

$

Not available

24

Gravely 06430000

WSHR-FL-STL 1.062X2.000X.134
(Superseded to 06443000)

$4.99

$

Usually ships in 4-12 days

0

25

Gravely 01701300

SPACER 1.250 OD X 1.00ID X .62

$

$

Not available

26

Gravely 05619300

OIL SEAL

$

$

Not available

27

Gravely 05406900

BRG-CONE 1.0X.58

$20.99

$

In Stock, Qty 20+

0

28

Gravely 01701200

HUB ASSEMLY

$

$

Not available

29

Gravely 05429600

BRG-RACE 1.97X.001X.38

$22.99

$

Usually ships in 4-12 days

0

30

Gravely 07059500

MOUNTING BOLT

$

$

Not available

31

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 1 left!

0

34

Gravely 01703400

PIVOT BALL PLATE HALF

$

$

Not available

35

Gravely 05964200

BLT-HEX .44-14X5.00 GR5 YWZC

$

$

Not available

36

Gravely 01701710

BLADE COLLAR LOWER

$

$

Not available

37

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 13

0

38

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 01703500

COLLAR, RETAINER 2.75 I.D.

$

$

Not available

40

Gravely 05964200

BLT-HEX .44-14X5.00 GR5 YWZC

$

$

Not available

Gravely 07153400

18.5 X 8.5-8 WHL/TIRE/HUB ASSY

Note: (Includes items 18, 25-29)

$

$

Not available
