818 (590-818-100) - Cub Cadet 48" Snow Thrower Attachment Discharge Chute And Chute Controls Parts Diagram

48" Snow Thrower Attachment

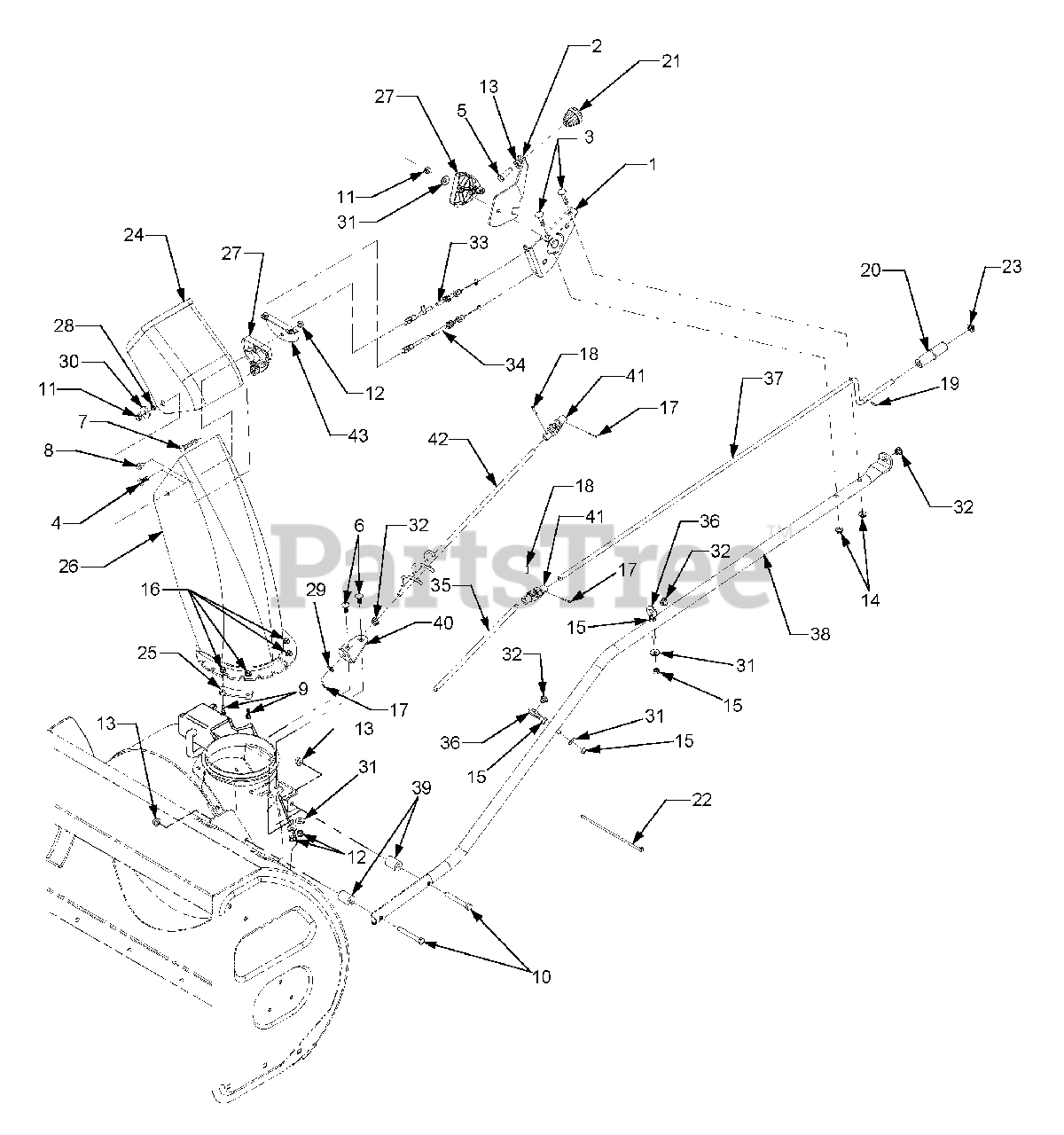

Discharge Chute And Chute Controls Parts Diagram

  • Title
1

Cub Cadet 603-0302-0716

Bracket Ass'y, Chute Tilt
(Superseded to 603-0302A-0637)

$64.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-05471-0637

Handle, Chute Tilt

$

$

Not available

3

Cub Cadet 710-0262

Bolt, Carriage, 5/16-18 X 1.5

$3.99

$

In Stock, Qty 14

0

4

Cub Cadet 710-0276

Bolt, Carriage, 5/16-18 X 1.0

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0342

Screw, Hex Cap, 3/8-16 x 1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 X .75

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0458

Bolt, Carriage, 5/16-18 X 1.75

$4.49

$

In Stock, only 4 left!

0

8

Cub Cadet 710-0896

Screw, Hex Wash. Hd. Tapp 1/4-14 X .625

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 X .75 GR5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3022

Screw, Hex Cap, 3/8-16 x 2.75 GR5

$4.49

$

In Stock, Qty 11

0

11

Cub Cadet 712-0158

Nut, Hex Center Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3010

Nut, Hex, 5/16-18

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 714-0507

Pin, Cotter, 3/32 X .75

$4.49

$

In Stock, only 2 left!

0

18

Cub Cadet 715-0129

Pin, Spirol, 1/8 X .812

$4.49

$

In Stock, only 1 left!

0

19

Cub Cadet 715-0138

Pin, Roll, 1/8 X .63
(Superseded to 915-0138)

$4.49

$

In Stock, only 1 left!

0

20

Cub Cadet 720-0201A

Knob, Crank

$10.99

$

In Stock, Qty 6

0

21

Cub Cadet 720-0232

Knob, Shift
(Superseded to 920-0232)

$9.99

$

In Stock, Qty 5

0

22

Cub Cadet 725-0157

Tie, Cable

$3.49

$

In Stock, only 3 left!

0

23

Cub Cadet 726-0100

Cap, Push

$3.99

$

In Stock, Qty 8

0

24

Cub Cadet 731-0849

Chute, Upper Discharge
(Superseded to 731-0846C)

$48.99

$

In Stock, only 1 left!

0

Cub Cadet 777S30511

Graphic, Danger Shut Off Eng.
(Superseded to 777S30524)

$10.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 731-0851A

Keeper, Chute Flange

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 731-0903D

Chute, Lower Discharge
(Superseded to 731-0903E)

$40.99

$

In Stock, Qty 14

0

27

Cub Cadet 731-1313C

Guide, Chute Tilt Cable

$11.99

$

In Stock, only 2 left!

0

28

Cub Cadet 731-1319

Spacer, Chute Pivot
(Superseded to 931-1319)

$

$

Not available

29

Cub Cadet 736-0140

Washer, Flat, .385 X .62 X .06

$6.99

$

In Stock, Qty 9

0

30

Cub Cadet 736-0231

Washer, Flat, .344 X 1.125 X .12

$4.49

$

In Stock, only 4 left!

0

31

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .06

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 741-0475

Bushing, Plastic
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 746-04094

Cable, Chute Tilt w/Clip

$

$

Not available

34

Cub Cadet 746-04095

Cable, Chute Tilt

$

$

Not available

35

Cub Cadet 747-04188

Rod, Chute Crank
(Superseded to 747-04188A)

$

$

Not available

36

$

$

Not available

37

Cub Cadet 747-0903

Rod, Chute Crank
(Superseded to 747-0903A)

$

$

Not available

38

Cub Cadet 749-04119-0716

Tube, Chute Crank Support

$

$

Not available

39

Cub Cadet 750-0748

Spacer, .375 ID x 1.0 OD x 1.25 Lg

$8.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 784-5123

Bracket, Chute Crank
(Superseded to 784-5123-0637)

Variations

Cub Cadet 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$16.99

$

In Stock, only 1 left!

0

$16.99

$

In Stock, only 1 left!

0

41

Cub Cadet 784-5149

Block Ass'y, Joint
(Superseded to 684-04350)

$26.99

$

In Stock, only 4 left!

0

42

Cub Cadet 784-5401

Crank Ass'y, Chute
(Superseded to 784-5401A)

$

$

Not available

43

Cub Cadet 784-5594-0716

Bracket, Cable
(Superseded to 784-5594-0637)

$10.99

$

In Stock, only 1 left!

0
