819 (590-819-100) - Cub Cadet 60" Finishing Mower Deck att Finish Mower Gearbox 60" Parts Diagram

60" Finishing Mower Deck

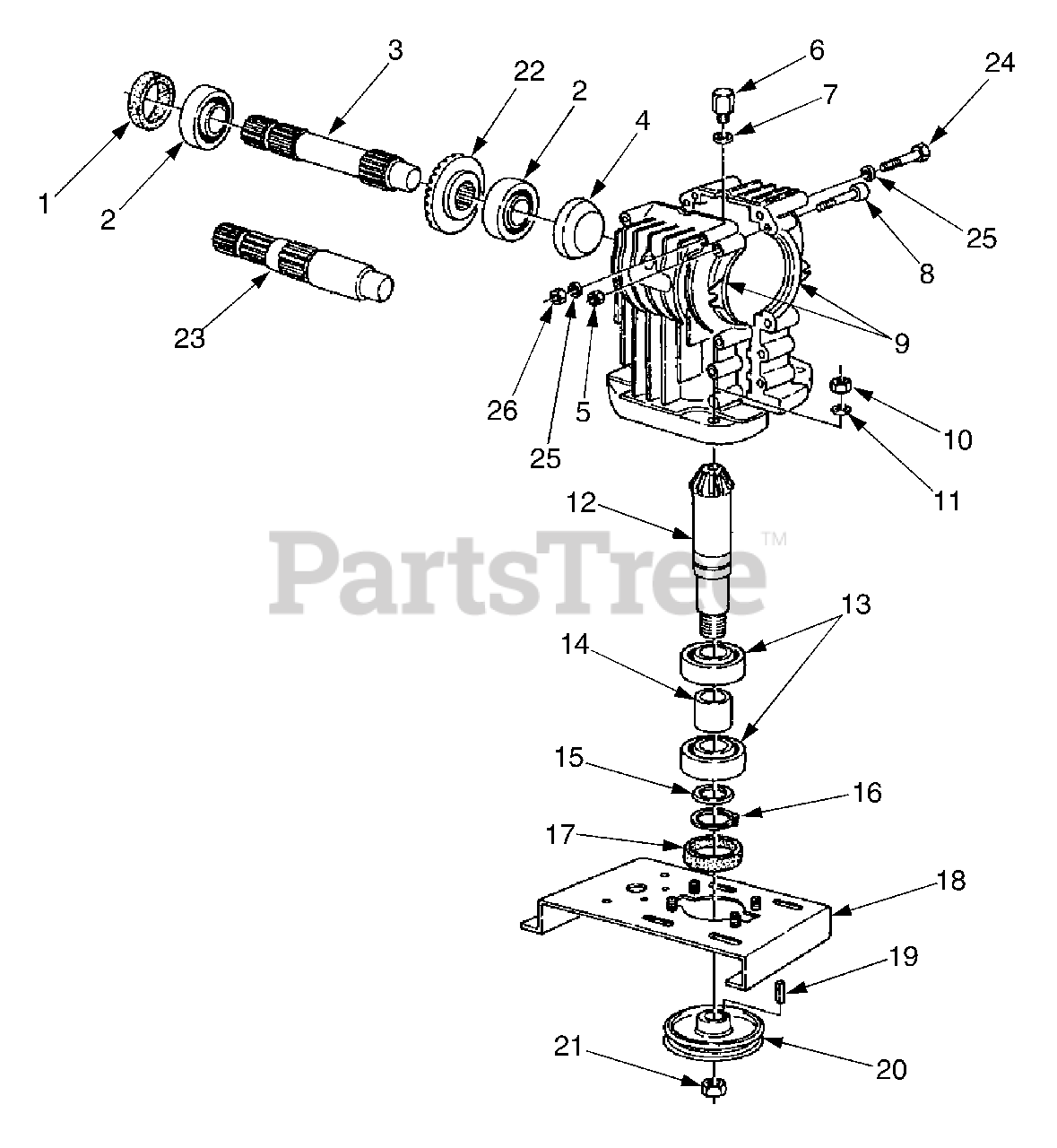

Finish Mower Gearbox 60" Parts Diagram

  • Title

1

Cub Cadet BF-001-0192

Oil Seal

$24.99

$

In Stock, only 1 left!

0

2

Cub Cadet BF-001-2149

Bearing

$

$

Not available

3

Cub Cadet BF-000-8892

Input Shaft

$

$

Not available

4

Cub Cadet BF-000-8609

Cover

$

$

Not available

5

Cub Cadet BF-000-6513

Nut, M8

$

$

Not available

6

Cub Cadet BF-001-0727

Breather Cap

$

$

Not available

7

Cub Cadet BF-000-8601

Gasket

$

$

Not available

8

Cub Cadet BF-001-0173

Bolt, 8 x 50

$

$

Not available

9

Cub Cadet BF-005-1891

Gearbox Housing w/Hole

$

$

Not available

Cub Cadet BF-005-1892

Gearbox Housing w/o Hole

$

$

Not available

10

Cub Cadet BF-000-3038

Nut, M12
(Superseded to BF-000-1106)

$

$

Not available

11

Cub Cadet BF-000-1077

Lock Washer, M12

$

$

Not available

12

Cub Cadet BF-005-0192

Pinion Gear

$

$

Not available

13

Cub Cadet BF-002-5332

Bearing

$

$

Not available

14

Cub Cadet BF-001-0196

Spacer

$

$

Not available

15

Cub Cadet BF-003-4196

Spacer Washer

$

$

Not available

16

Cub Cadet BF-004-2122

Snap Ring

$

$

Not available

17

Cub Cadet BF-000-2295

Oil Seal

$26.99

$

Usually ships in 3-6 days

0

18

Cub Cadet BF-020-8430

Center Plate

$

$

Not available

19

Cub Cadet BF-000-6688

Key, 7 x 8 x 35

$

$

Not available

20

Cub Cadet BF-000-8623

Pulley

$

$

Not available

21

Cub Cadet BF-000-6698

Nut, M25

$20.99

$

In Stock, only 1 left!

0

22

Cub Cadet BF-000-8893

Ring Gear

$

$

Not available

23

Cub Cadet BF-005-1187

Input Shaft

$

$

Currently unavailable

24

Cub Cadet BF-001-5263

Bolt, 10 x 120

$

$

Not available

25

Cub Cadet BF-000-2034

Flat Washer, M10

$

$

Not available

26

Cub Cadet BF-003-0156

Nut, M10

$

$

Not available

Cub Cadet BF-050-0647

Gearbox Complete
(Superseded to BF-050-0654)

$1373.99

$

Usually ships in 3-6 days

0
