819 (590-819-100) - Cub Cadet 60" Finishing Mower Deck att Mower Deck 60" Parts Diagram

60" Finishing Mower Deck

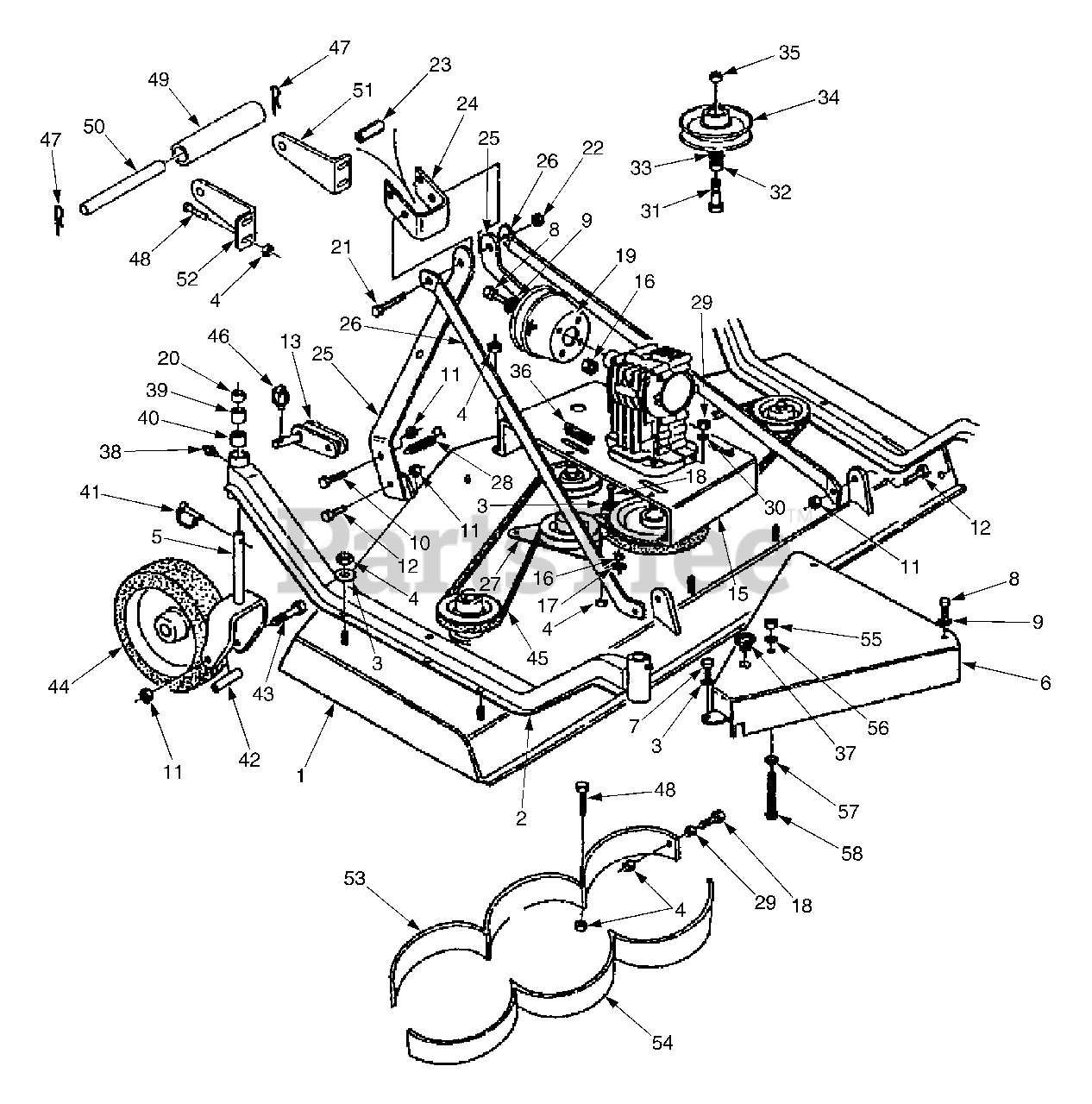

Mower Deck 60" Parts Diagram

  • Title

1

Cub Cadet BF-020-8740

Frame, 60" Rear Discharge

$

$

Not available

2

Cub Cadet BF-020-8761

Wheel Arm

$

$

Not available

3

Cub Cadet BF-003-0157

Flat Washer, M10

$

$

Not available

4

Cub Cadet BF-003-0156

Nut, M10

$

$

Not available

5

Cub Cadet BF-000-8785

Wheel Yoke

$256.99

$

Usually ships in 3-6 days

0

6

Cub Cadet BF-020-8817

Belt Cover

$

$

Not available

7

Cub Cadet BF-002-6185

Bolt, 10 x 90

$

$

Not available

8

Cub Cadet BF-003-3176

Bolt, 10 x 25

$

$

Not available

9

Cub Cadet BF-000-2034

Flat Washer, M10

$

$

Not available

10

Cub Cadet BF-003-7349

Bolt, 14 x 45

$

$

Not available

11

Cub Cadet BF-003-0358

Nut, M14

$7.49

$

Usually ships in 3-6 days

0

12

Cub Cadet BF-007-4232

Bolt, 14 x 40

$

$

Not available

13

Cub Cadet BF-000-8836

Hitch Block

$

$

Not available

15

Cub Cadet BF-005-1583

Center Plate

$

$

Not available

16

Cub Cadet BF-000-0156

Nut, M10

$

$

Currently unavailable

17

Cub Cadet BF-000-1280

Washer, M10

$

$

Not available

18

Cub Cadet BF-009-1281

Bolt, 10 x 35

$

$

Not available

19

Cub Cadet BF-000-8663

Shaft Protection (EC only)

$

$

Not available

20

Cub Cadet BF-000-6589

Spacer, 1/4"

$17.99

$

Usually ships in 3-6 days

0

21

Cub Cadet BF-000-6891

Bolt, 16 x 140

$

$

Not available

22

Cub Cadet BF-000-5581

Nut, M16

$

$

Not available

23

Cub Cadet BF-000-6829

Spacer

$

$

Not available

24

Cub Cadet BF-000-6828

Upper Plate

$

$

Not available

25

Cub Cadet BF-000-8823

Top Hitch Support

$

$

Not available

26

Cub Cadet BF-020-8832

Top Hitch Arm

$

$

Not available

27

Cub Cadet BF-000-8563

Support Belt Tensioner

$

$

Not available

28

Cub Cadet BF-000-8586

Spring

$36.99

$

Usually ships in 3-6 days

0

29

Cub Cadet BF-000-3038

Nut, M12
(Superseded to BF-000-1106)

$

$

Not available

30

Cub Cadet BF-000-1077

Lock Washer, M12

$

$

Not available

31

Cub Cadet BF-000-8576

Bolt, 20 x 65

$

$

Not available

32

Cub Cadet BF-000-5508

Nut, M20

$

$

Not available

33

Cub Cadet BF-004-6555

Flat Washer, M20

$

$

Not available

34

Cub Cadet BF-000-8561

Pulley Belt Tensioner

$150.99

$

Usually ships in 3-6 days

0

35

Cub Cadet BF-000-5507

Nut, M20

$4.99

$

Usually ships in 3-6 days

0

36

Cub Cadet BF-000-8441

Cap

$

$

Not available

37

Cub Cadet BF-000-6647

Plastic Cap

$

$

Not available

38

Cub Cadet BF-000-1065

Grease Fitting

$3.99

$

Usually ships in 3-6 days

0

39

Cub Cadet BF-000-6587

Spacer, 1/2"

$21.99

$

Usually ships in 3-6 days

0

40

Cub Cadet BF-000-6586

Spacer, 1"

$18.99

$

Usually ships in 3-6 days

0

41

Cub Cadet BF-000-6610

Cotter Pin, M6 x 45
(Superseded to BF-000-8783)

$11.99

$

In Stock, only 2 left!

0

42

Cub Cadet BF-000-8528

Spacer

$

$

Not available

43

Cub Cadet BF-000-6615

Bolt, M14 x 140

$13.99

$

Usually ships in 3-6 days

0

44

Cub Cadet BF-000-8526

Wheel

$182.99

$

Usually ships in 3-6 days

0

Cub Cadet BF-000-8797

Tire

$

$

Not available

45

Cub Cadet BF-000-8670B

Belt, 112-1/2

$

$

Not available

46

Cub Cadet BF-001-8266

Lynch Pin

$

$

Not available

47

Cub Cadet BF-011-2087

Cotter Pin

$

$

Not available

48

Cub Cadet BF-000-6349

Bolt, 10 x 20

$

$

Not available

49

Cub Cadet BF-006-7358

Front Roller

$

$

Currently unavailable

50

Cub Cadet BF-000-8929

Roller Pin

$

$

Not available

51

Cub Cadet BF-000-8923

Right Roller Support

$

$

Not available

52

Cub Cadet BF-020-8924

Left Roller Support

$

$

Not available

53

Cub Cadet BF-011-5826

Front Mulching Kit Baffling

$

$

Not available

54

Cub Cadet BF-011-5825

Rear Mulching Kit Baffling

$

$

Not available

55

Cub Cadet BF-001-5237

Nut, 10mm

$

$

Not available

56

Cub Cadet BF-003-0157

Flat Washer, 10mm

$

$

Not available

57

Cub Cadet BF-001-4106

Hex Nut, 10mm

$

$

Not available

58

Cub Cadet BF-000-8818

Bolt, 10 x 110

$

$

Not available
