819 (590-819-100) - Cub Cadet 60" Finishing Mower Deck att Mower PTO Shaft 60" Parts Diagram

60" Finishing Mower Deck

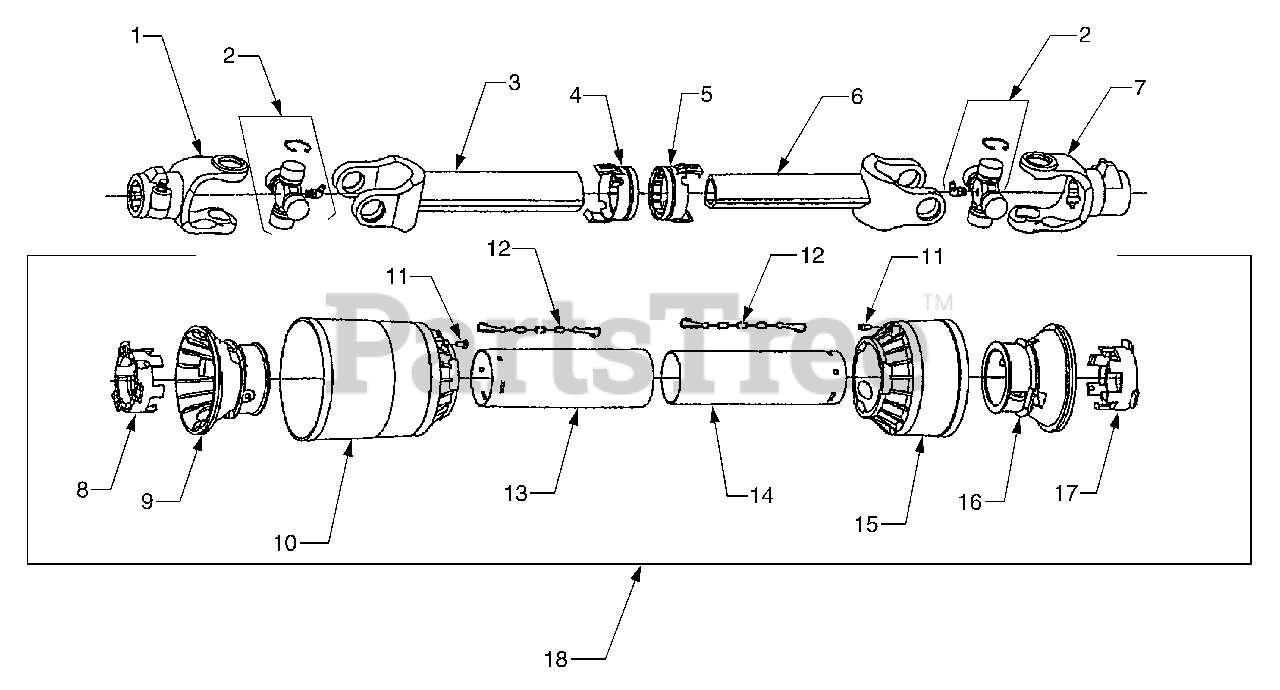

Mower PTO Shaft 60" Parts Diagram

  • Title
1

Cub Cadet BF-022-001E

Yoke Assembly

$

$

Not available

2

Cub Cadet BF-012-130E

Cross and Bearing

$92.99

$

Usually ships in 3-6 days

0

3

Cub Cadet BF-503-339B

Outside Tube w/Yoke

$

$

Not available

4

Cub Cadet BF-503-318B

Outer Fastener Ring

$

$

Not available

5

Cub Cadet BF-503-319B

Inner Fastener Ring

$

$

Not available

6

Cub Cadet BF-503-340B

Inner Tube w/Yoke

$

$

Not available

7

Cub Cadet BF-022-001E

Yoke Assembly

$

$

Not available

8

Cub Cadet BF-503-322B

Tube Bearing Outer

$

$

Not available

9

Cub Cadet BF-503-323B

Outer Tube Rigid Cone

$

$

Not available

10

$

$

Not available

$

$

Not available

$

$

Not available

13

Cub Cadet BF-503-342B

Outer Shield

$

$

Not available

14

Cub Cadet BF-503-343B

Inner Shield

$

$

Not available

15

$

$

Not available

16

Cub Cadet BF-503-328B

Inner Tube Rigid Cone

$

$

Not available

17

Cub Cadet BF-503-329B

Tube Bearing Inner

$

$

Not available

18

Cub Cadet BF-503-344B

Shield Complete

$

$

Not available

Cub Cadet BF-948-815B

PTO Shaft Complete

$

$

Not available
