81900 - Toro Turn Brake (1974) PARTS LIST-DISC TURNING BRAKES MODEL 8-1900 Parts Diagram

Turn Brake

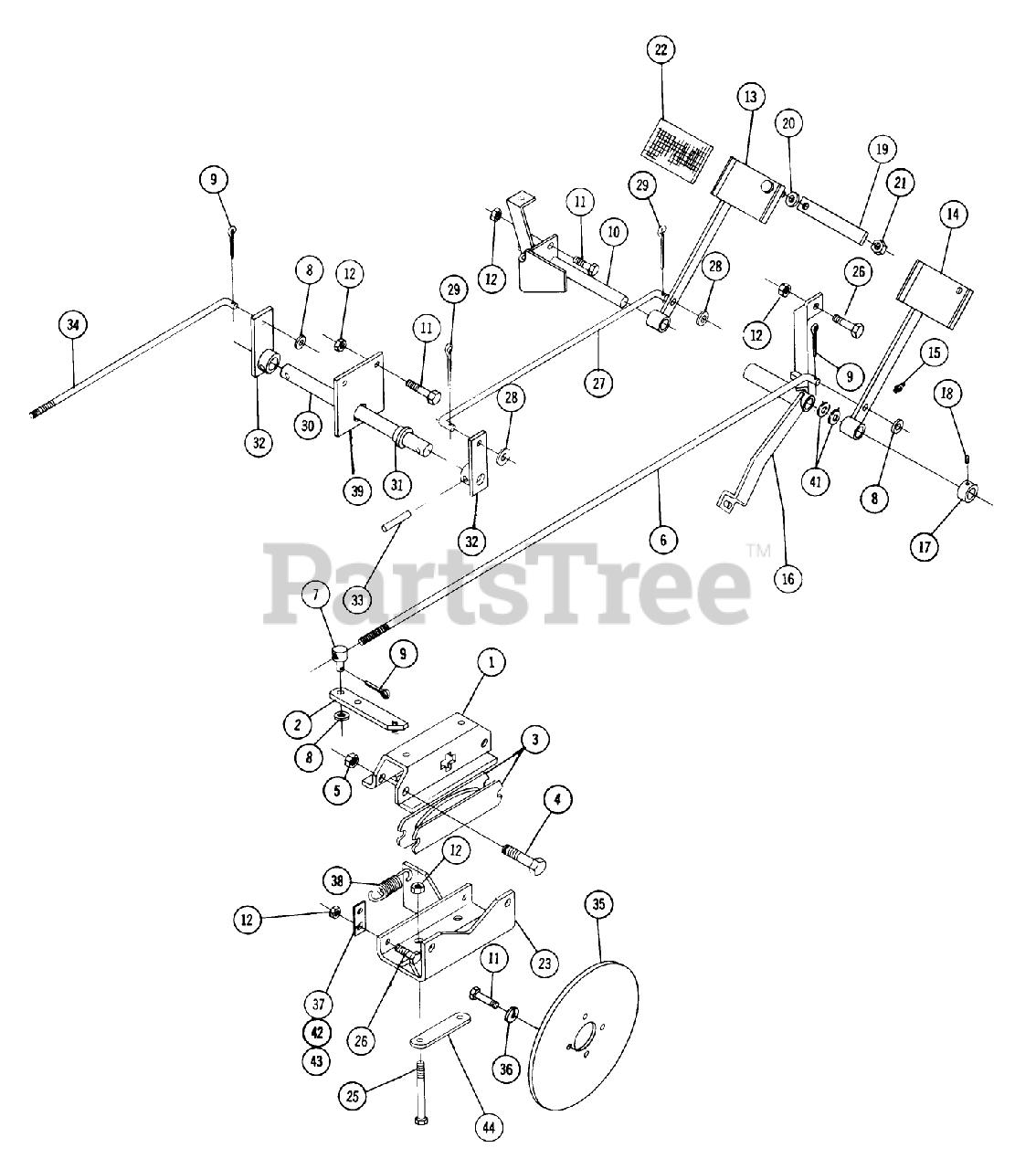

PARTS LIST-DISC TURNING BRAKES MODEL 8-1900 Parts Diagram

  • Title

1

Toro 104836

Bracket-Secondary

$

$

Not available

2

Toro 104837

Lever-Assembly

$

$

Not available

3

Toro 104798

PLATE-ASSY- STATOR

$

$

Not available

4

Toro 104377

Guide Sleeve

$

$

Not available

5

Toro 104378

Retaining Ring

$

$

Not available

6

Toro 102230

Rod Assembly

$

$

Not available

7

Toro 5791

Trunnion

$

$

Not available

8

Toro 920009-4

Washer

$

$

Currently unavailable

9

Toro 932008-4

Hairpin

$

$

Currently unavailable

10

Toro 102234

Pedal Pivot Assembly

$

$

Currently unavailable

11

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

12

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

13

Toro 102755

Pedal-L.H.

$

$

Not available

14

Toro 102754

Pedal-R.H.

$

$

Not available

15

Toro 7073

Fitting-Grease

$

$

Not available

16

Toro 104707

Brace Assembly

$

$

Currently unavailable

17

Toro 8192

Collar

$

$

Not available

18

Toro 909849-5

Set Screw-1/4-20 x 1/2

$

$

Currently unavailable

19

Toro 102259

Bar

$

$

Not available

20

Toro MW-4405

Washer

$

$

Currently unavailable

21

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

22

Toro 103097

Brake Pedal Pad

$

$

Not available

23

Toro 104856

Plate-Brake Mounting RH

$

$

Not available

23

Toro 104857

Plate-Brake Mounting LH

$

$

Not available

25

Toro 908043-4

Bolt Hex 3/8-16 x 1

$

$

Currently unavailable

26

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

27

Toro 102238

Rod Assembly

$

$

Currently unavailable

28

Toro 920009-4

Washer

$

$

Currently unavailable

29

Toro 932008-4

Hairpin

$

$

Currently unavailable

30

Toro 1104789

Shaft

$

$

Currently unavailable

31

Toro 103007

BUSHING

$

$

Not available

32

Toro 104790

Arm Assembly

$

$

Not available

33

Toro 933229

SPIROL ROLL PIN

$

$

Not available

34

Toro 102244

Rod Assembly

$

$

Not available

35

Toro 102229

Disc

$

$

Currently unavailable

36

Toro 920083-4

Lockwasher

$

$

Currently unavailable

37

Toro 104333

Decal, Caution

$

$

Not available

38

Toro 103125

SPRING

$9.49

$

In Stock, Qty 7

0

39

Toro 104793

Support Bracket

$

$

Not available

41

Toro 920239-4

Washer

$

$

Currently unavailable

42

Toro 100047

PLATE SPRING ANCHOR

$

$

Not available

43

Toro 7606

Spring Tab

$

$

Currently unavailable

44

Toro 3697

BRACKET-REAR LINK MOUNTING

$33.99

$

Usually ships in 3-6 days

0
