81903 - Toro Turn Brake (1977) DISC TURNING BRAKES (FACTORY ORDER NUMBER 8-1903) Parts Diagram

Turn Brake

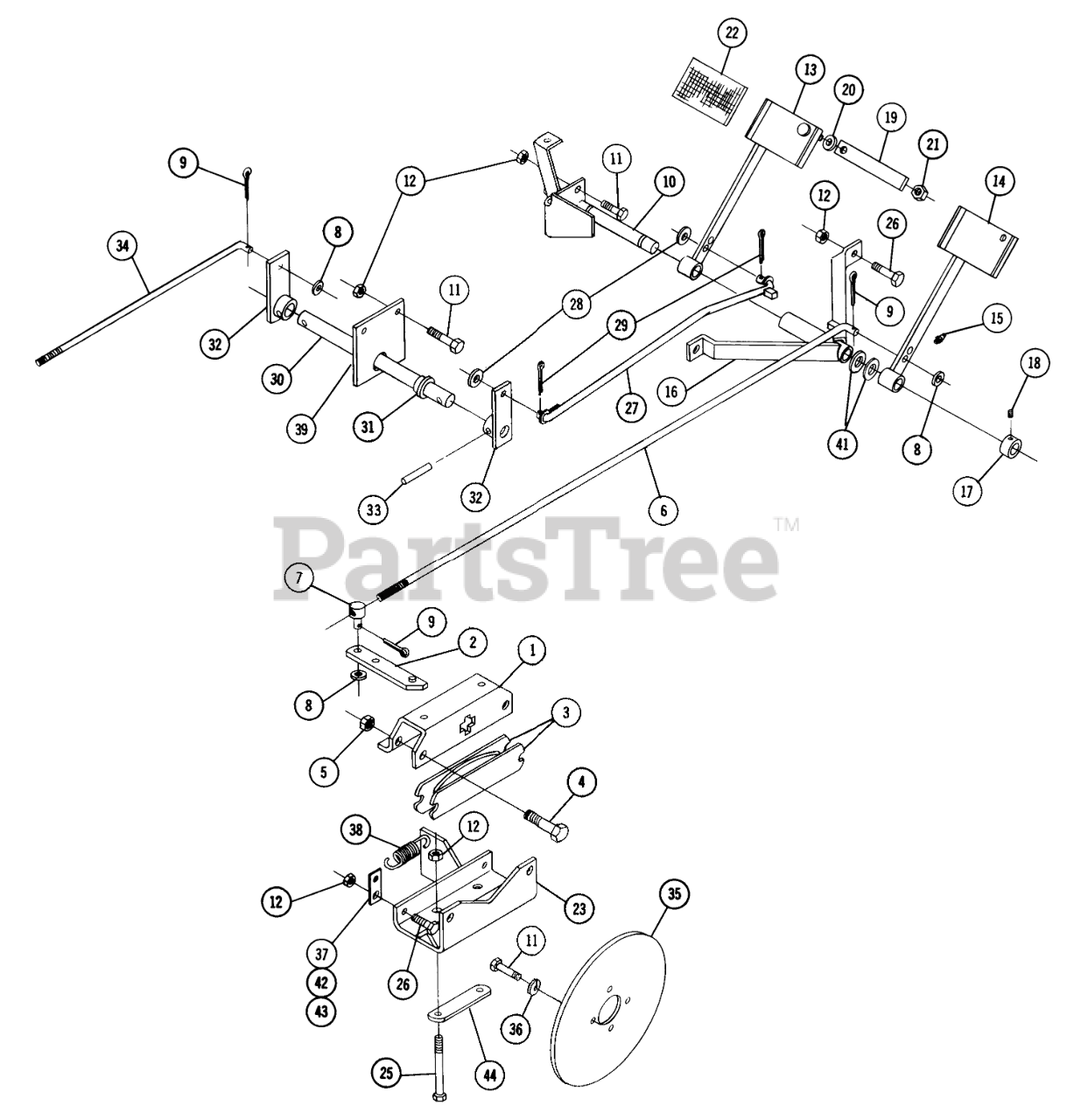

DISC TURNING BRAKES (FACTORY ORDER NUMBER 8-1903) Parts Diagram

  • Title

1

Toro 104795

Secondary Bracket

$

$

Not available

2

Toro 104800

Lever Assembly

$

$

Not available

3

Toro 104798

PLATE-ASSY- STATOR

$

$

Not available

4

Toro 104799

Bolt-Shoulder 1/2 x 1 1/2

$

$

Not available

5

Toro 104378

Retaining Ring

$

$

Not available

6

Toro 102230

Rod Assembly

$

$

Not available

7

Toro 1861

Trunnion

$

$

Not available

8

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

9

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

10

Toro 104801

Pedal Pivot Assembly

$

$

Not available

11

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

12

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

13

Toro 104805

Pedal-L.H.

$

$

Not available

14

Toro 104804

Pedal-R.H.

$

$

Not available

15

Toro 7073

Fitting-Grease

$

$

Not available

16

Toro 104707

Brace Assembly

$

$

Currently unavailable

17

Toro 8192

Collar

$

$

Not available

18

Toro 909849

USE 909849P SCREW

$

$

Not available

19

Toro 102259

Bar

$

$

Not available

20

Toro MW-4405

Washer

$

$

Currently unavailable

21

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

22

Toro 103097

Brake Pedal Pad

$

$

Not available

23

Toro 104856

Plate-Brake Mounting RH

$

$

Not available

Toro 104857

Plate-Brake Mounting LH

$

$

Not available

25

Toro 908043

HHCS
(Superseded to 323-15)

$1.99

$

In Stock, Qty 19

0

26

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

27

Toro 104980

Rod Assembly

$

$

Not available

28

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

29

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

30

Toro 104789

Shaft

$

$

Not available

31

Toro 103007

BUSHING

$

$

Not available

32

Toro 104790

Arm Assembly

$

$

Not available

33

Toro 933229

SPIROL ROLL PIN

$

$

Not available

34

Toro 102244

Rod Assembly

$

$

Not available

35

Toro 104806

DISC

$

$

Not available

36

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

37

Toro 104383

Plate-Spring Anchor

$

$

Not available

38

Toro 103125

SPRING

$9.49

$

In Stock, Qty 7

0

39

Toro 104793

Support Bracket

$

$

Not available

41

Toro 920239

Washer
(Superseded to 9202394)

$2.49

$

In Stock, only 1 left!

0

42

Toro 100047

PLATE SPRING ANCHOR

$

$

Not available

43

Toro 7606

Spring Tab

$

$

Currently unavailable

44

Toro 3697

BRACKET-REAR LINK MOUNTING

$33.99

$

Usually ships in 3-6 days

0
