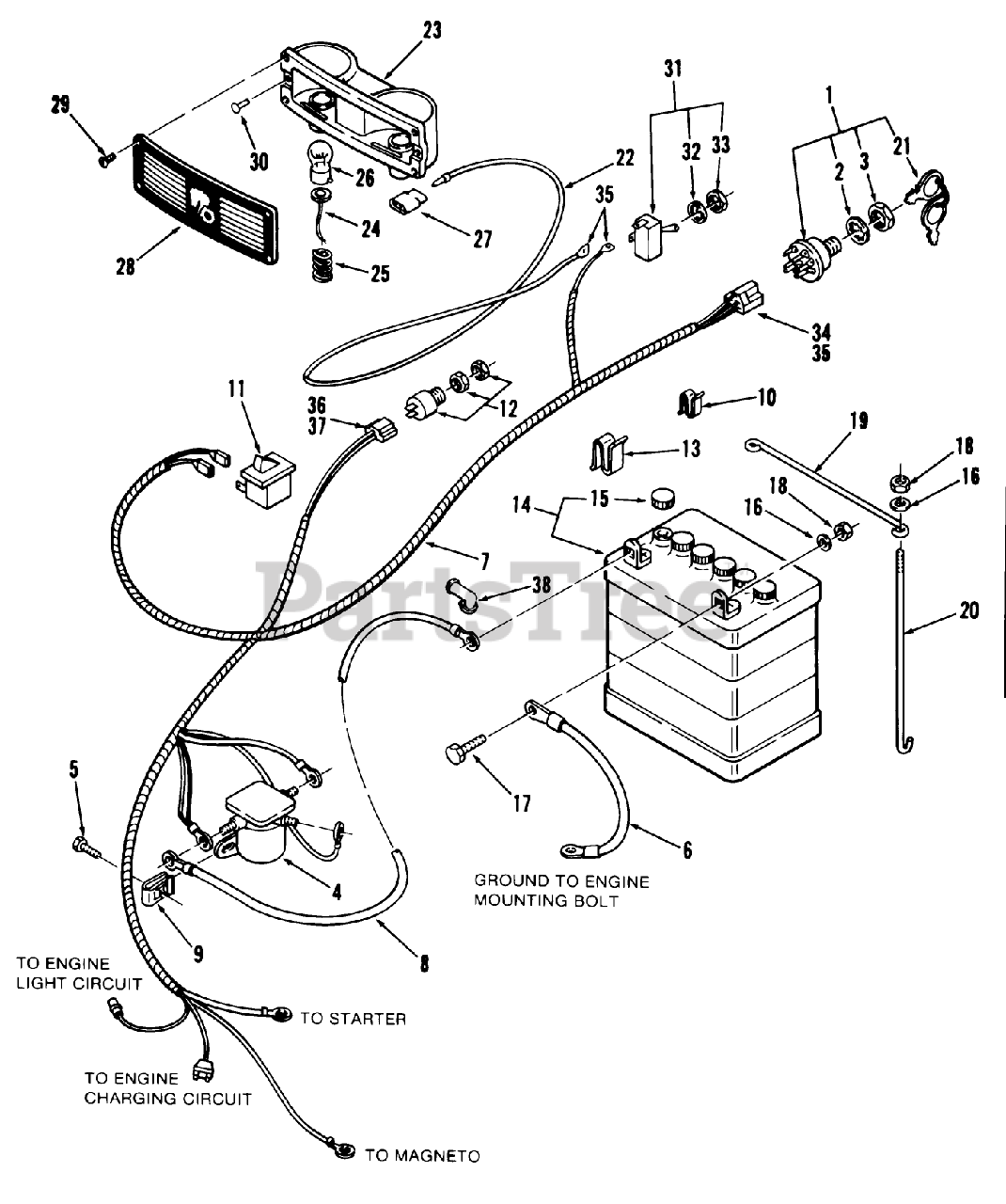

82-11BP01 (B-111) - Toro Lawn Tractor (1978) Electrical System Parts Diagram

Lawn Tractor

Electrical System Parts Diagram

  • Title

1

Toro 103991

ASSY-SWITCH IGNITION

$52.99

$

In Stock, only 2 left!

0

2

Toro 920160

See Supercession: 9201604
(Superseded to 9201604)

$0.99

$

In Stock, only 2 left!

0

3

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

4

Toro 8658

See Supercession: 108544
(Superseded to 108544)

$144.99

$

Usually ships in 3-6 days

0

5

Toro 913136

HEX WASHER HD SCREW

$

$

Not available

6

Toro 8655

See Supercession: 111078
(Superseded to 111078)

$28.99

$

Usually ships in 3-6 days

0

7

Toro 106423

DISCONTINUED

$

$

Not available

8

Toro 104268

DISCONTINUED

$

$

Not available

9

Toro 106370

DISCONTINUED

$

$

Not available

11

Toro 103480

DISCONTINUED

$

$

Not available

12

Toro 106268

SWITCH

$36.99

$

Usually ships in 3-6 days

0

14

Toro 104962

See Supercession: 105-1692
(Superseded to 105-1692)

$

$

Not available

15

Toro 100438

DISCONTINUED

$

$

Not available

16

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 15

0

17

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

18

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

19

Toro 105504

ROD-HOLD DOWN

$25.99

$

In Stock, only 4 left!

0

20

Toro 8107

See Supercession: 109547
(Superseded to 109547)

$10.99

$

In Stock, only 2 left!

0

21

Toro 7262

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 14

0

34

Toro 105302

See Supercession: 32160-014
(Superseded to 32160-014)

$6.49

$

In Stock, Qty 15

0

36

Toro 105305

Connector Body

$

$

Currently unavailable

37

Toro 105304

DISCONTINUED

$

$

Not available

38

Toro 104277

See Supercession: 28-8080
(Superseded to 28-8080)

$26.99

$

Usually ships in 3-6 days

0

10

Toro 3023

DISCONTINUED

$

$

Not available

13

Toro 9210

DISCONTINUED

$

$

Not available

22

Toro 106555

DISCONTINUED

$

$

Not available

23

Toro 7223

DISCONTINUED

$

$

Not available

24

Toro 7226

DISCONTINUED

$

$

Not available

25

Toro 7227

SPRING

$

$

Not available

26

Toro 7228

BULB

$25.99

$

In Stock, only 2 left!

0

27

Toro 7618

DISCONTINUED

$

$

Not available

28

Toro 103771

See Supercession: 98-1713
(Superseded to 98-1713)

$96.99

$

In Stock, only 1 left!

0

29

Toro 7229

See Supercession: 88-2120
(Superseded to 88-2120)

$

$

Not available

30

Toro 923784

See Supercession: 3290-54
(Superseded to 3290-54)

$0.99

$

In Stock, only 2 left!

0

31

Toro 102138

SWITCH-LIGHTS

$42.99

$

In Stock, only 1 left!

0

32

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

33

Toro 8786

NUT-HEX

$

$

Not available

35

Toro 102651

DUP PART SEE $BOOK

$

$

Not available
