821 RT (1693207) - Simplicity Rear-Tine Tiller, 8hp Shifting Mechanism Parts Diagram

Rear-Tine Tiller, 8hp

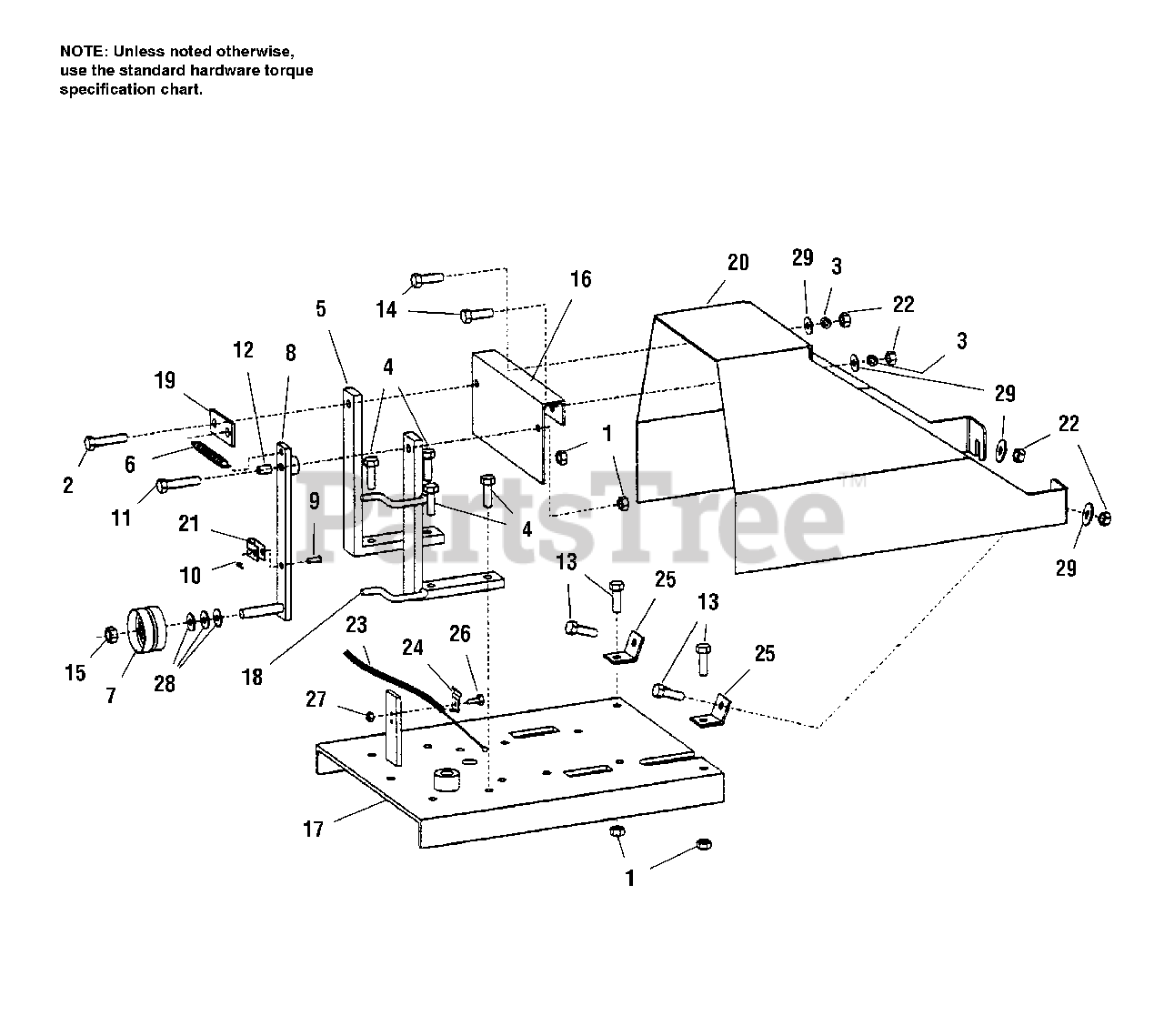

Shifting Mechanism Parts Diagram

  • Title

1

Simplicity 1935048SM

NUT-Bi-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

2

Simplicity 1921221SM

BOLT-Hex Hd, 5/16-18 x 1-1/2", Grade 5
(Superseded to 703906)

$4.99

$

In Stock, Qty 7

0

3

Simplicity 1917356SM

LOCKWASHER-Spring, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1921977SM

BOLT-Hex Hd, 5/16"-18 x 1-1/4", Grade 5
(Superseded to 703570)

$4.99

$

In Stock, Qty 10

0

5

Simplicity 1716801SM

MOUNTING BAR-Shift Mechanism

$9.99

$

Usually ships in 2-12 days

0

6

Simplicity 1716802SM

SPRING-Idler Arm

$11.99

$

Usually ships in 2-12 days

0

7

Simplicity 1716803SM

PULLEY-Forward Idler

$45.99

$

Usually ships in 2-12 days

0

8

Simplicity 1716804SM

IDLER ARM-Forward

$26.99

$

Usually ships in 2-12 days

0

9

Simplicity 1716702SM

LINK PIN-Forward

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 1716703SM

COTTER PIN

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0

12

Simplicity 1716704SM

BUSHING-Pivot, 5/16"

$12.99

$

Usually ships in 2-12 days

0

13

Simplicity 1921332SM

BOLT-Hex Flange Hd, 5/16-18 x 3/4", Grade 5
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

14

Simplicity 1921332SM

BOLT-Hex Hd, 5/16-18 x 3/4"
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

15

Simplicity 1916950SM

NUT-Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 9

0

16

Simplicity 1718872SM

SUPPORT BRACKET-Belt Cover

$

$

Not available

17

Simplicity 1718874SM

COVER-Transmission Wheel Housing

$

$

Not available

18

Simplicity 1719060SM

MOUNTING BAR-Shift Mechanism, w/Forward Belt Guides

$

$

Not available

19

Simplicity 1719061SM

PLATE-Shift Mech Mounting Bar

$

$

Not available

20

Simplicity 1719062SM

BELT COVER

$55.99

$

Usually ships in 2-12 days

0

21

Simplicity 1716728SM

YOKE-Cable

$

$

Not available

22

Simplicity 1917372SM

NUT-Non Locking, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1719037SM

CABLE ASSEMBLY-Drive Control Lever

$67.99

$

In Stock, Qty 8

0

24

Simplicity 1719063SM

C-CLAMP, Drive Control Cable

$4.49

$

Usually ships in 2-12 days

0

25

Simplicity 1719064SM

MOUNTING BRACKET-Belt Cover

$

$

Not available

26

Simplicity 1716731SM

BOLT-Hex Hd, 5mm x 0.8mm x 10mm

$1.99

$

Usually ships in 2-12 days

0

27

Simplicity 1716732SM

NUT-Nyloc, 5mm x 0.8mm

$2.49

$

Usually ships in 2-12 days

0

28

Simplicity 1924940SM

WASHER-Flat, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 1960044SM

WASHER-Flat, 5/16"

$4.49

$

In Stock, Qty 11

0
