822-117 (133X679G019) - Turf Power Lawn Tractor (1993) (Agway) Electrical/Switches Parts Diagram

Lawn Tractor

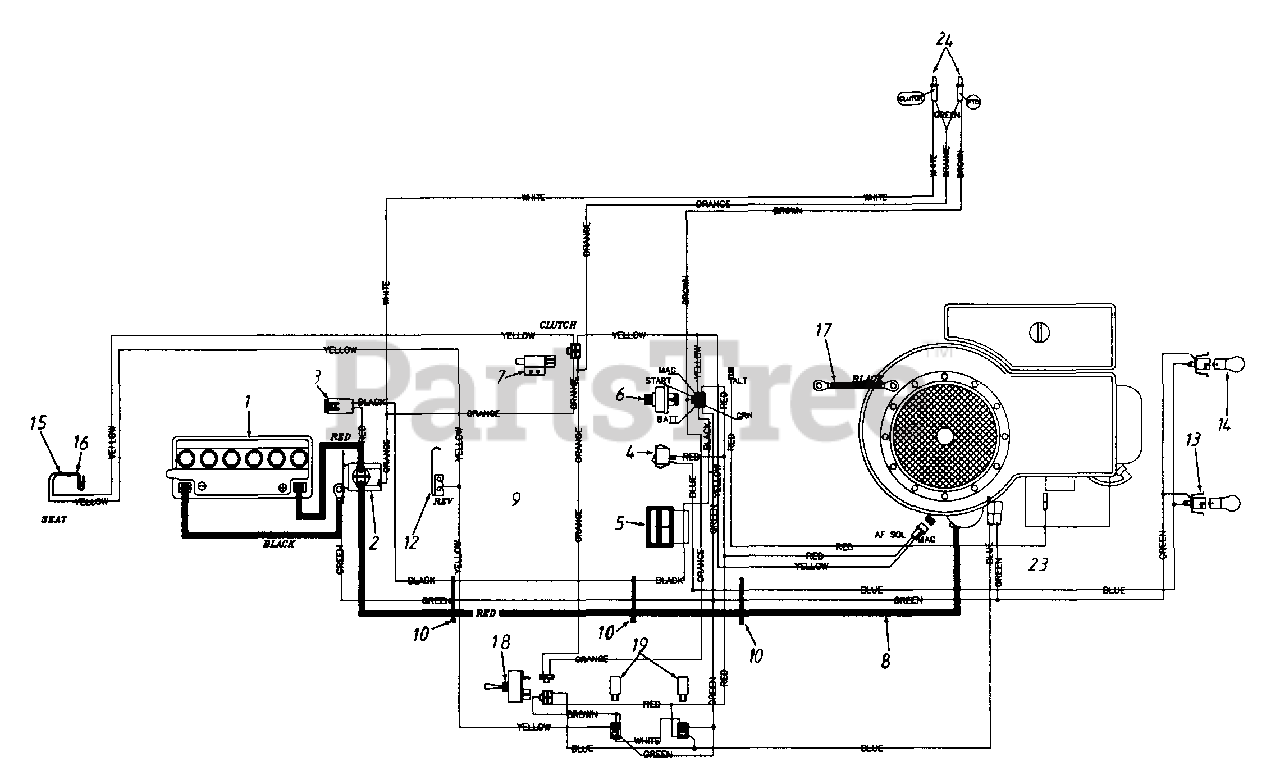

Electrical/Switches Parts Diagram

  • Title

1

MTD 725-1635

Battery
(Superseded to 753-0608)

$

$

Not available

2

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$28.99

$

In Stock, Qty 20+

0

3

MTD 725-1381

Fuse
(Superseded to 925-1381)

$6.99

$

In Stock, Qty 10

0

4

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$18.99

$

In Stock, only 2 left!

0

5

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

6

MTD 725-1396

Ignition Switch
(Superseded to 925-1396A)

$46.99

$

In Stock, only 2 left!

0

7

MTD 725-3169A

Clutch Safety Switch
(Superseded to 925-04039)

$25.99

$

In Stock, Qty 15

0

8

MTD 725-1081

Electric Wire
(Superseded to 629-0740)

$20.99

$

Usually ships in 3-6 days

0

9

MTD 629-0102

Wire Harness

$

$

Not available

10

MTD 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

12

MTD 725-1643

Reverse Safety Switch

$10.99

$

Usually ships in 3-6 days

0

13

MTD 725-1650

Headlight Socket
(Superseded to 925-1650)

$

$

Not available

14

MTD 725-0963

Bulb
(Superseded to 925-0963)

$7.99

$

In Stock, Qty 20+

0

15

MTD 725-1303

Seat Safety Switch
(Superseded to 925-1303)

$6.99

$

In Stock, only 4 left!

0

16

MTD 725-1439

Seat Safety Switch

$8.99

$

In Stock, Qty 6

0

17

MTD 725-0980

Electric Wire

$

$

Not available

18

MTD 725-0893

Safety Switch (PTO)
(Superseded to 925-0893)

$87.99

$

In Stock, Qty 7

0

19

MTD 725-1648

Relay
(Superseded to 925-1648A)

$49.99

$

In Stock, only 1 left!

0

23

MTD 717-0983

Electric Clutch

$

$

Not available

24

MTD 725-1365

Bulb
(Superseded to 925-1365)

$10.99

$

In Stock, only 2 left!

0
