824 EX (1695979) - Murray 24" Snow Thrower, 8hp (2011) Wheels & Tires Group Parts Diagram

24" Snow Thrower, 8hp

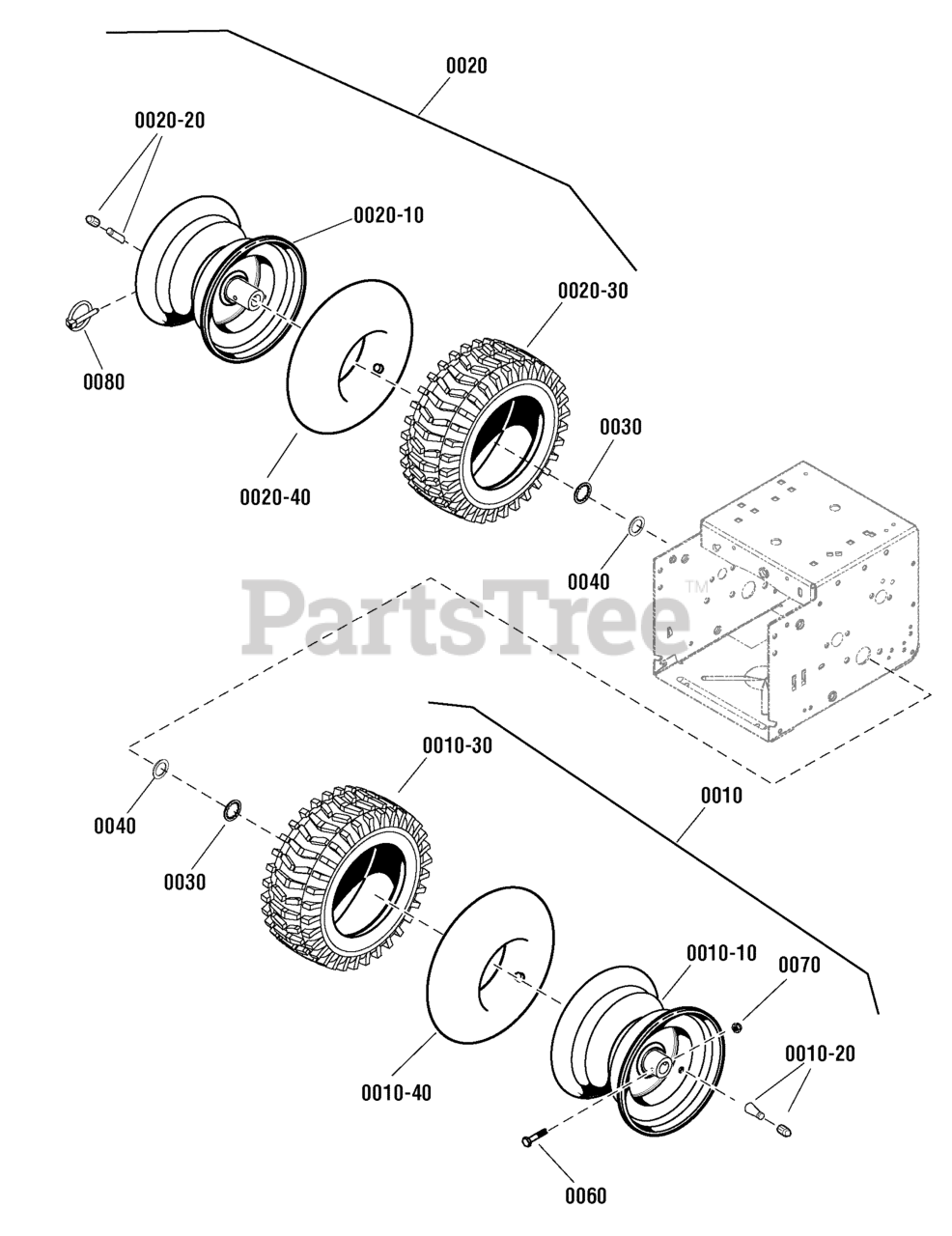

Wheels & Tires Group Parts Diagram

  • Title

0010

Murray 1751293YP

WHEEL & TIRE ASSEMBLY, 13 x 5.0, LH

Note: (Includes Ref. Nos. 0010-10, 0010-20, 0010-30 & 0010-40)

$132.99

$

Usually ships in 2-12 days

0

0010-10

* WHEEL, Rim

$

$

Not available

0010-20

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$8.49

$

Usually ships in 2-12 days

0

0010-30

Murray 1751295YP

TIRE, 13 x 5-6

$94.99

$

Usually ships in 2-12 days

0

0010-40

Murray 1664090SM

TUBE, Tire

$28.99

$

In Stock, only 2 left!

0

0020

Murray 1751294YP

WHEEL & TIRE ASSEMBLY, 13 x 5.0, RH

Note: (Includes Ref. Nos. 0020-10, 0020-20, 0020-30 & 0020-40)

$132.99

$

Usually ships in 2-12 days

0

0020-10

* WHEEL, Rim

$

$

Not available

0020-20

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$8.49

$

Usually ships in 2-12 days

0

0020-30

Murray 1751295YP

TIRE, 13 x 5-6

$94.99

$

Usually ships in 2-12 days

0

0020-40

Murray 1664090SM

TUBE, Tire

$28.99

$

In Stock, only 2 left!

0

0030

Murray 1657528SM

RETAINING RING, Extension Self Lock

$4.49

$

In Stock, Qty 20+

0

0040

Murray 7031965YP

WASHER, Thrust, 3/4

$4.49

$

In Stock, Qty 8

0

0060

Murray 577015MA

BOLT, Hex, 1/4-20 x 1-3/4, G5

$5.49

$

In Stock, Qty 9

0

0070

Murray 15X145MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0080

Murray 73842MA

PIN, Klik, 1/4
(Superseded to 500016MA)

$16.99

$

In Stock, only 2 left!

0
