824 EX (1696123) - Murray 24" Snow Thrower, 8hp (2011) Discharge Chute Group Parts Diagram

24" Snow Thrower, 8hp

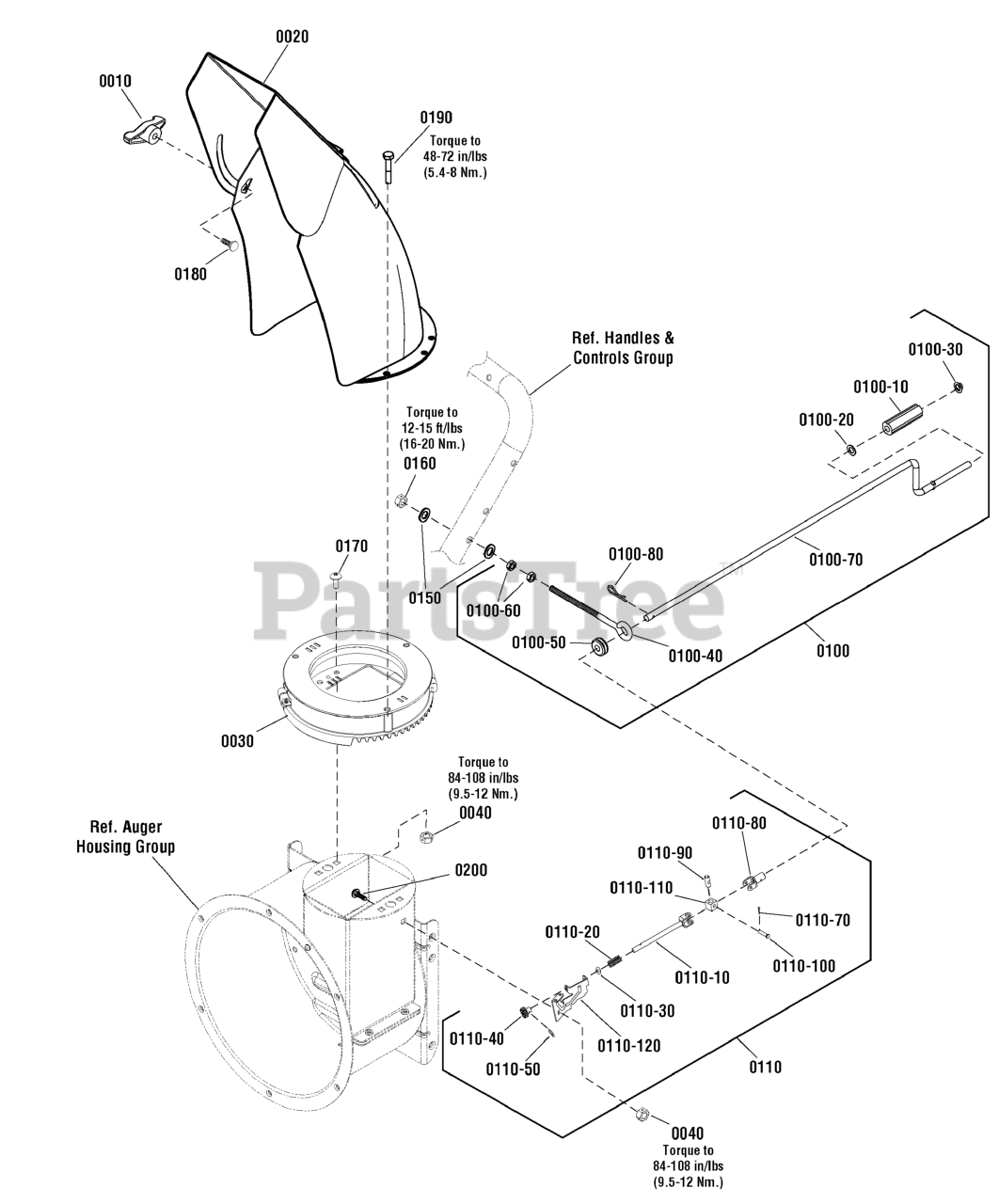

Discharge Chute Group Parts Diagram

  • Title

0010

Murray 7035744YP

KNOB, Wing, 5/16-18, Black
(Superseded to 703065)

$7.49

$

In Stock, Qty 20+

0

0020

Murray 1736313YP

CHUTE ASSEMBLY

$113.99

$

Usually ships in 2-12 days

0

0030

Murray 1752922YP

CHUTE ROTATION ASSEMBLY, LH Crank

$48.99

$

Usually ships in 2-12 days

0

0040

Murray 1923358SM

NUT, Hex Centerlock, 1/4-20
(Superseded to 703954)

$5.49

$

In Stock, Qty 12

0

0100

* ROD ASSEMBLY

$

$

Not available

0100-10

Murray 51443MA

KNOB, Sleeve

$7.49

$

Usually ships in 2-12 days

0

0100-20

Murray 309312MA

WASHER, Flat, 7/16

$4.99

$

In Stock, Qty 5

0

0100-30

Murray 73664MA

NUT, Push, 3/8

$5.49

$

Usually ships in 2-12 days

0

0100-40

Murray 1501456MA

EYEBOLT, 3/8-16 x 6-1/2

$9.99

$

Usually ships in 2-12 days

0

0100-50

Murray 148MA

GROMMET, Eyebolt

$5.49

$

Usually ships in 2-12 days

0

0100-60

Murray 71045MA

NUT, Hex Jam, 3/8-16

$5.49

$

Usually ships in 2-12 days

0

0100-70

Murray 1501074YZMA

CRANK, Chute Turn

$

$

Not available

0100-80

Murray 0031X6MA

PIN, Hair 3/8 x 1-5/8
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0110

* CONTROL ASSEMBLY, Chute Rotation

$

$

Not available

0110-10

Murray 1501533YZMA

ROD, Yoke Crank

$12.99

$

In Stock, only 1 left!

0

0110-20

Murray 164X37MA

SPRING, Compression

$9.99

$

In Stock, only 1 left!

0

0110-30

Murray 017X48MA

WASHER, Flat, 3/8

$8.99

$

Usually ships in 2-12 days

0

0110-40

Murray 1501067MA

GEAR, 9 Tooth

$18.99

$

In Stock, only 3 left!

0

0110-50

Murray 1501293MA

PIN, Hair

$4.99

$

Usually ships in 2-12 days

0

0110-70

Murray 579493MA

PIN, Cotter

$4.49

$

In Stock, Qty 10

0

0110-80

Murray 1501075YZMA

YOKE TUBE ASSEMBLY

$10.99

$

Usually ships in 2-12 days

0

0110-90

Murray 578060MA

PIN, Universal Joint

$7.99

$

In Stock, Qty 9

0

0110-100

Murray 578309MA

PIN, Clevis, 1/4 x 1-3/32

$5.99

$

In Stock, Qty 6

0

0110-110

Murray 578063MA

BLOCK, Universal Pivot

$5.99

$

In Stock, Qty 8

0

0110-120

Murray 1752383AYP

BRACKET, Mounting, Chute Rotation Gear
(Superseded to 1752560YP)

$58.99

$

Usually ships in 2-12 days

0

0150

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 3 left!

0

0160

Murray 71046MA

NUT, Hex Nylock, 3/8-16
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0

0170

Murray 880456YP

SCREW, Truss Head Torx, 1/4-20 x 7/8

$3.49

$

Usually ships in 2-12 days

0

0180

Murray 002X97MA

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, only 4 left!

0

0190

Murray 880804YP

SCREW, Pan Head, Taptite, 1/4-15 x 5/8

$3.99

$

Usually ships in 2-12 days

0

0200

Murray 1931315SM

BOLT, Carriage, Short Neck, 1/4-20 x 1/2, G5
(Superseded to 703978)

$3.99

$

In Stock, Qty 18

0
