824 (UT-35019-A) - Homelite Snow Thrower Engine and Idlers Parts Diagram

Snow Thrower

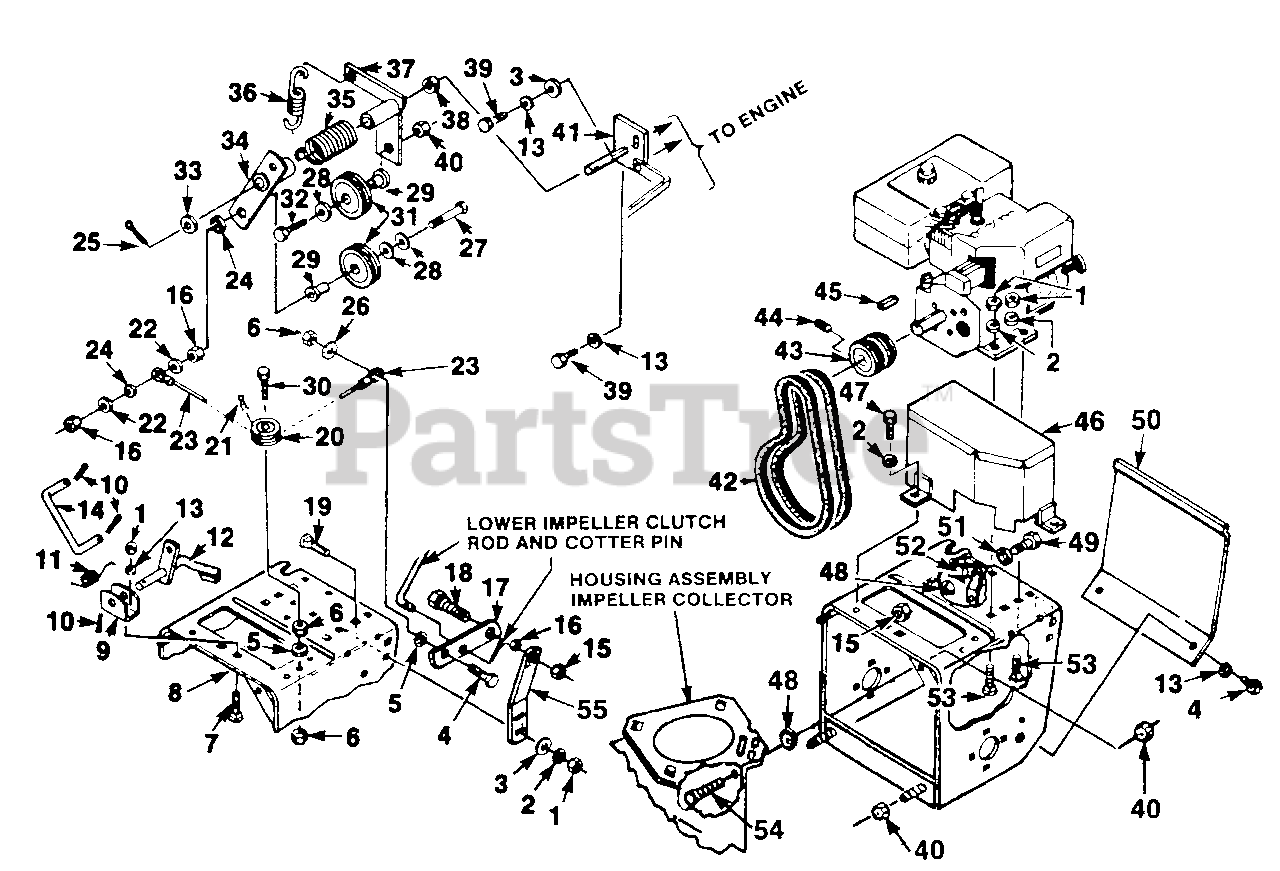

Engine and Idlers Parts Diagram

  • Title

1

Homelite JA443106

NUT- Hex pivot mtg. 5/16-18
(Superseded to 81018)

$

$

Not available

2

Homelite JA466136

WASHER- Lock pivot mtg. 5/16"

$

$

Currently unavailable

3

Homelite JA453009

WASHER- Flat pivot mtg. 5/16"
(Superseded to UP07173)

$

$

Not available

4

Homelite JA400106

SCREW- Hex hd. 1/4-20 x 5/8"

$

$

Currently unavailable

5

Homelite JA446130

WASHER- Lock hvy. 1/4"

$

$

Not available

6

Homelite JA443102

NUT- Hex pulley mtg. 1/4-20
(Superseded to JA993730)

$

$

Not available

7

Homelite JA441679

BOLT- Carriage 5/16-18 x 5/8"

$

$

Not available

8

Homelite JA991404

FRAME ASSEMBLY

$

$

Currently unavailable

9

Homelite JA991405

BRACKET- Brake rod support

$

$

Currently unavailable

10

Homelite JA460014

PIN- Cotter 3/32 x 3/4"

$

$

Not available

11

Homelite JA358340

SPRING- Brake rod torsion

$

$

Currently unavailable

12

Homelite JA991406

BRAKE ARM ASSEMBLY

$

$

Currently unavailable

13

Homelite JA446134

WASHER- Lock med. 5/16"
(Superseded to 653671)

$5.49

$

Usually ships in 3-7 days

0

14

Homelite JA991407

LINK- Brake

$

$

Currently unavailable

15

Homelite JA444718

NUT- Hex C/lock 5/16-18

$

$

Not available

16

Homelite JA443810

NUT- Hex jam 3/8-16

$

$

Not available

17

Homelite JA991408

BELL CRANK ASSEMBLY

$

$

Currently unavailable

18

Homelite JA375431

BOLT- Shoulder washer face 5/16-18

$

$

Not available

19

Homelite JA440078

BOLT- Pivot mtg. carr. 5/16-18 x 3/4"

$5.99

$

Usually ships in 3-7 days

0

20

Homelite JA358174

PULLEY- Control cable

$

$

Currently unavailable

21

Homelite JA460002

PIN- Cotter 1/16 x 2"

$

$

Currently unavailable

22

Homelite JA306785

WASHER- Flat

$8.49

$

Usually ships in 3-7 days

0

23

Homelite JA358331

CABLE- Impeller clutch

$

$

Currently unavailable

24

Homelite JA446140

WASHER- Lock med. 3/8"
(Superseded to UP07435)

$

$

Not available

25

Homelite JA460028

PIN- Cotter ext. prong 1/8 x 1"

$

$

Currently unavailable

26

Homelite JA453023

WASHER- Flat 1/4"
(Superseded to 678013001)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite JA400270

SCREW- Hex hd. 3/8-16 x 2"

$

$

Not available

28

Homelite JA453011

WASHER- Flat SAE 3/8"
(Superseded to PS84010)

$

$

Not available

29

Homelite JA344952

SPACER

$

$

Currently unavailable

30

Homelite JA400116

SCREW- Hex hd. 1/4-20 x 1/2"

$

$

Not available

31

Homelite JA991409

PULLEY- Idler

$

$

Currently unavailable

32

Homelite JA400266

SCREW- Hex hd. 3/8-16 x 1 1/2"

$

$

Currently unavailable

33

Homelite JA453017

WASHER- Flat idler cam retaining 17/32"

$

$

Not available

34

Homelite JA991411

IDLER ARM ASSEMBLY

$

$

Currently unavailable

35

Homelite JA358335

SPRING- Brake

$

$

Currently unavailable

36

Homelite JA358334

SPRING- Traction Idler

$

$

Currently unavailable

37

Homelite JA991412

TRACTION IDLER ARM

$

$

Currently unavailable

38

Homelite JA358145

SPACER- Idler

$

$

Currently unavailable

39

Homelite JA400222

SCREW- Hex hd. cap 5/16-24 x 3/4"

$

$

Currently unavailable

40

Homelite JA444762

NUT- Hex lock 3/8-16

$

$

Currently unavailable

41

Homelite JA991413

IDLER PLATE ASSEMBLY

$

$

Currently unavailable

42

Homelite JA335453

BELT- Drive

$

$

Not available

43

Homelite JA390046

PULLEY- Engine

$

$

Currently unavailable

44

Homelite JA415523

SCREW- Set soc. hd. 5/16-18 x 1/2"

$

$

Currently unavailable

45

Homelite JA306968

KEY- Engine pulley mtg.

$

$

Currently unavailable

46

Homelite JA991337

BELT- Guard

$

$

Currently unavailable

47

Homelite JA408858

SCREW- Hex type T 5/16-18 x 5/8"

$2.99

$

Usually ships in 3-7 days

0

48

Homelite JA452006

WASHER- Flat shift lever mtg. 5/16"

$

$

Currently unavailable

49

Homelite JA359247

BOLT- Shift lever mtg.

$6.49

$

Usually ships in 3-7 days

0

50

Homelite JA991387

COVER- Back

$

$

Currently unavailable

51

Homelite JA454008

WASHER- Spring shift lever mtg.

$

$

Not available

52

Homelite JA991414

LEVER- Shift

$

$

Currently unavailable

53

Homelite JA440086

BOLT- Shnk. carr. (824) 5/16-18 x 1 1/2"

$5.99

$

Usually ships in 3-7 days

0

Homelite JA440078

BOLT- Shnk. carr. (624) 5/16-18 x 3/4"

$5.99

$

Usually ships in 3-7 days

0

54

Homelite JA441624

BOLT- N reg. carr. 3/8-16

$

$

Currently unavailable

55

Homelite JA991415

BRACKET- Belt crank pivot

$

$

Currently unavailable
