824004 - Ariens 36" Rotary Brush (SN: 000101 - 000500) Brush Parts Diagram

36" Rotary Brush

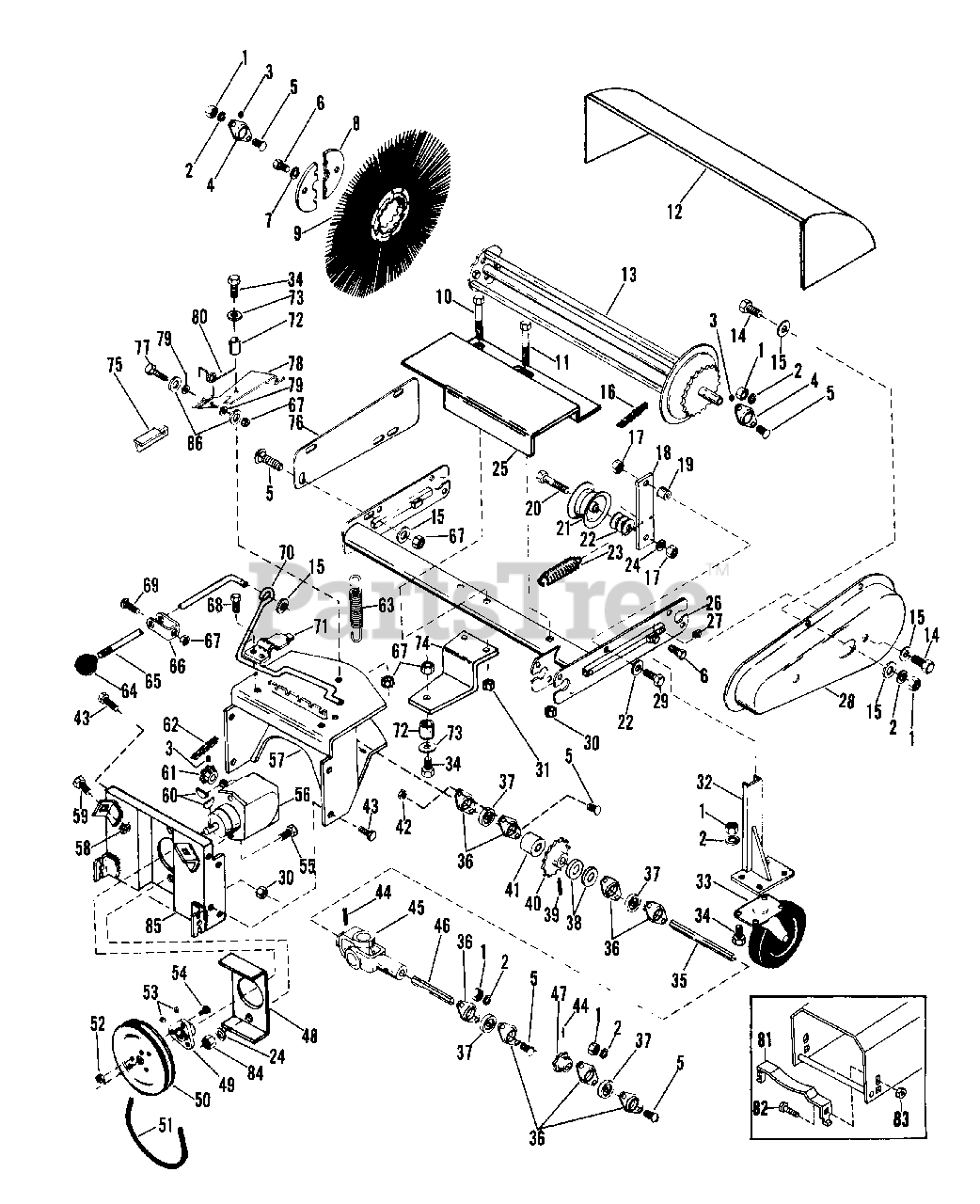

Brush Parts Diagram

  • Title

1

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$1.49

$

In Stock, Qty 8

0

2

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 5

0

3

Ariens 06001100

SCR-SET .25-20X.38 SKHCUPNL OH

$2.99

$

In Stock, only 2 left!

0

4

Ariens 05409600

BRG-FLG
(Superseded to 05423400)

$

$

Not available

5

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

6

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.99

$

In Stock, Qty 7

0

7

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

Usually ships in 4-12 days

0

8

Ariens 01062900

RETAINER PLATE (SET OF 2)

$

$

Not available

9

Ariens 01060500

BRUSH
(Superseded to 02470000)

Note: (Poly)

$597.99

$

Usually ships in 4-12 days

0

10

Ariens 05920800

BLT-HEX .38-16X3.50 PL GR5
(Superseded to 05960900)

$4.99

$

In Stock, Qty 20+

0

11

Ariens 05904900

BLT-HEX .38-16X3.00 PL GR2
(Superseded to 05957800)

$2.99

$

In Stock, Qty 19

0

12

Ariens 01060100

HOOD

$

$

Not available

13

Ariens 01060400

CORE

$

$

Not available

14

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.99

$

In Stock, only 4 left!

0

15

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 01060800

CHAIN
(Superseded to 02468300)

$105.99

$

Usually ships in 4-12 days

0

17

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 01060200

IDLER ARM
(Superseded to 51001900)

$

$

Not available

19

Ariens 05506600

BSHG-SLV .375X.437X.312

$

$

Not available

20

Ariens 05906800

BLT-HEX .38-16X2.00 PL GR2
(Superseded to 05963300)

$3.49

$

In Stock, Qty 20+

0

21

Ariens 01061300

CHAIN TIGHTENER

$

$

Not available

22

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.99

$

In Stock, Qty 20+

0

23

Ariens 08308800

SG-EXT

$

$

Not available

24

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$4.99

$

In Stock, Qty 17

0

25

Ariens 02429300

SHAFT GUARD

$

$

Not available

26

Ariens 01060000

BRUSH FRAME

$

$

Not available

27

Ariens 06508800

NUT-SPEED U-TY .312-18

$

$

Not available

28

Ariens 01061200

CHAIN SHIELD

$

$

Not available

29

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

30

Ariens 06505900

NUT-LK-FLG .375-16 GR A PL

$

$

Not available

31

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.99

$

Usually ships in 4-12 days

0

32

Ariens 02447700

CASTOR LEG

$

$

Not available

33

Ariens 07109400

WHL, 5 DIA.

$81.99

$

In Stock, Qty 9

0

34

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

35

Ariens 02429100

SHAFT

$79.99

$

Usually ships in 4-12 days

0

36

Ariens 02429600

BEARING FLANGE

$6.49

$

Usually ships in 4-12 days

0

37

Ariens 05409700

BRG-BALL .884HEXX52MMX1.07

$96.99

$

Usually ships in 4-12 days

0

38

Ariens 06418500

WSHR-FL-STL 1.015X1.500X.125
(Superseded to 06400025)

$6.49

$

Usually ships in 4-12 days

0

39

Ariens 05805600

PIN-ROLL .188X1.75

$

$

Not available

40

Ariens 01062000

SPROCKET

$105.99

$

Usually ships in 4-12 days

0

41

Ariens 02447600

SPACER 1.006X1.307X.500

$25.99

$

Usually ships in 4-12 days

0

42

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

43

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.99

$

In Stock, Qty 10

0

44

Ariens 05803000

PIN-ROLL .188X1.50

$1.49

$

In Stock, only 2 left!

0

45

Ariens 02430600

JOINT, UNIVERSAL
(Superseded to 02495500)

$291.99

$

Usually ships in 4-12 days

0

46

Ariens 02429900

DRIVE SHAFT

$

$

Not available

47

Ariens 01060900

SPROCKET

$

$

Not available

48

Ariens 02429500

STIFFENER PLATE
(Superseded to 02429551)

$

$

Not available

49

Ariens 00286200

HUB
(Superseded to 50202100)

$87.99

$

In Stock, only 2 left!

0

50

Ariens 07307000

PLY-V 9.0 X 1.25 3BLT

$52.99

$

In Stock, only 2 left!

0

51

Ariens 07210800

V-BELT, 4L-RAW EDGE

$47.99

$

In Stock, Qty 14

0

Ariens 07213000

V-BELT, 4L-RAW EDGE

Note: (71)

$34.99

$

In Stock, only 2 left!

0

52

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

53

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$3.49

$

In Stock, only 2 left!

0

54

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$6.49

$

In Stock, only 3 left!

0

55

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

$1.99

$

In Stock, Qty 16

0

56

Ariens 02400400

GEAR BOX ASSEMBLY

$571.99

$

Usually ships in 4-12 days

0

57

Ariens 02441900

ADAPTER FRAME

$

$

Not available

58

Ariens 07002600

NUT-RETNR .38-16 TINRMAN

$9.99

$

In Stock, Qty 7

0

59

Ariens 07003100

BLT-SCRHFWH .38-16X.75 PL
(Superseded to 07028500)

$1.99

$

In Stock, only 3 left!

0

60

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 6

0

61

Ariens 02429800

SPROCKET

$

$

Not available

62

Ariens 01207800

CHAIN
(Superseded to 02477700)

$16.99

$

In Stock, only 2 left!

0

63

Ariens 08303300

SG-TENS .060X.170X4.25 WLD ??

$25.99

$

Usually ships in 4-12 days

0

64

Ariens 07501500

SHIFT BALL

$

$

Not available

65

Ariens 00105700

POSITION ROD
(Superseded to 00131400)

$

$

Not available

66

Ariens 02206500

BRACKET
(Superseded to 52201700)

$

$

Not available

67

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

68

Ariens 07002700

BLT-SERHFWH .31-18X.75 PL

$

$

Not available

69

Ariens 06202200

BLT-RDHDSQNK .31-18X1.38SHT PL
(Superseded to 06212100)

$1.99

$

In Stock, Qty 12

0

70

Ariens 02428700

RELEASE ROD

$

$

Not available

71

Ariens 02535300

CLAMP

$

$

Not available

72

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$

$

Not available

73

Ariens 06408200

WSHR-FL-STL .328X1.0X.094
(Superseded to 06437500)

$3.99

$

In Stock, only 1 left!

0

74

Ariens 02429200

BOTTOM MOUNT

$56.99

$

Usually ships in 4-12 days

0

75

Ariens 02441800

LATCH BAR

$

$

Not available

76

Ariens 01060300

HOOD STRAP

$

$

Not available

77

Ariens 05905700

BLT-HEX .31-18X2.00 PL GR2
(Superseded to 05957200)

$1.99

$

In Stock, Qty 12

0

78

Ariens 02441700

TOP MOUNT

$

$

Not available

79

Ariens 06404400

WSHR-FL-STL .380X.875X.179 PL
(Superseded to 06439100)

$3.49

$

In Stock, Qty 20+

0

80

Ariens 08300300

SG-TORS .109X.88X2.25

$35.99

$

Usually ships in 4-12 days

0

81

Ariens 02423600

BELT RETAINER
(Superseded to 02423651)

$23.99

$

Usually ships in 4-12 days

0

82

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, only 3 left!

0

83

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

84

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.49

$

In Stock, Qty 20+

0

85

Ariens 02429400

MOUNTING PLATE

$

$

Not available

86

Ariens 06407900

WSHR-FL-STL .344X1.125X.063PL
(Superseded to 06425500)

$2.99

$

In Stock, Qty 20+

0
