824010 - Ariens 36" Rotary Brush (SN: 000101 & Above) Rotary Brush Parts Diagram

36" Rotary Brush

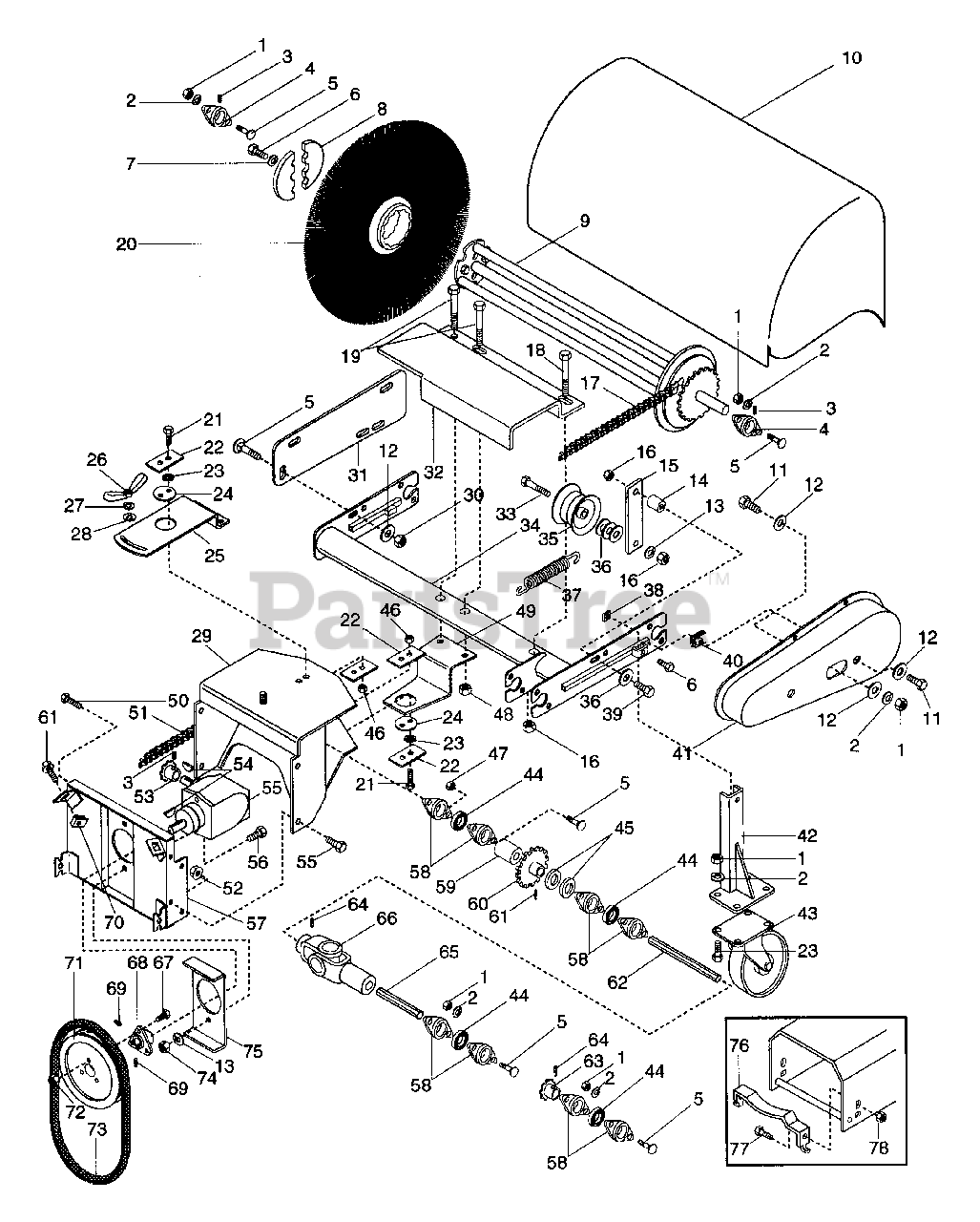

Rotary Brush Parts Diagram

  • Title

1

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

2

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

3

Ariens 06001100

SCR-SET .25-20X.38 SKHCUPNL OH

$2.49

$

In Stock, only 3 left!

0

4

Ariens 05423400

BRG 1.00 BORE, SPHER. OD.

$

$

Not available

5

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 11

0

6

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.49

$

In Stock, Qty 7

0

7

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

8

Ariens 01062900

RETAINER PLATE (SET OF 2)

$74.99

$

Usually ships in 4-12 days

0

9

Ariens 01060400

CORE

$

$

Not available

10

Ariens 01060100

HOOD

$

$

Not available

11

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 8

0

14

Ariens 05506600

BSHG-SLV .375X.437X.312

$

$

Not available

15

Ariens 01060200

IDLER ARM
(Superseded to 51001900)

$185.99

$

Usually ships in 4-12 days

0

16

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 01060800

CHAIN
(Superseded to 02468300)

$95.99

$

Usually ships in 4-12 days

0

18

Ariens 05904900

BLT-HEX .38-16X3.00 PL GR2
(Superseded to 05957800)

$2.49

$

In Stock, only 1 left!

0

19

Ariens 05920800

BLT-HEX .38-16X3.50 PL GR5
(Superseded to 05960900)

$3.99

$

In Stock, only 2 left!

0

20

Ariens 51002800

POLY BRUSH ASSEMBLY
(Superseded to 02470000)

$586.99

$

Usually ships in 4-12 days

0

21

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

$1.49

$

Usually ships in 4-12 days

0

22

Ariens 02404800

RETAINER

$17.99

$

In Stock, only 2 left!

0

23

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

24

Ariens 02404900

PIVOT CENTER

$20.99

$

In Stock, only 2 left!

0

25

Ariens 02405100

TOP MOUNT PLATE
(Superseded to 52408700)

$143.99

$

Usually ships in 4-12 days

0

26

Ariens 01019300

WING NUT

$

$

Not available

27

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$7.99

$

In Stock, Qty 9

0

28

Ariens 06301400

WSHR-LK .375X.130
(Superseded to 06306700)

$3.99

$

In Stock, only 1 left!

0

29

Ariens 02405000

ADAPTER FRAME
(Superseded to 02405051)

$

$

Not available

30

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 01060300

HOOD STRAP

$

$

Not available

32

Ariens 02429300

SHAFT GUARD

$

$

Not available

33

Ariens 05906800

BLT-HEX .38-16X2.00 PL GR2
(Superseded to 05963300)

$2.99

$

In Stock, Qty 12

0

34

Ariens 01060000

BRUSH FRAME

$

$

Not available

35

Ariens 01061300

CHAIN TIGHTENER

$

$

Not available

36

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, only 2 left!

0

37

Ariens 08308800

SG-EXT

$

$

Not available

38

Ariens 06505200

NUT-SQ .50-13

$

$

Not available

39

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 06508800

NUT-SPEED U-TY .312-18

$

$

Not available

41

Ariens 01061200

CHAIN SHIELD

$

$

Not available

42

Ariens 02447700

CASTOR LEG

$

$

Not available

43

Ariens 07109400

WHL, 5 DIA.

$79.99

$

In Stock, Qty 9

0

44

Ariens 05409700

BRG-BALL .884HEXX52MMX1.07

$94.99

$

Usually ships in 4-12 days

0

45

Ariens 06418500

WSHR-FL-STL 1.015X1.500X.125
(Superseded to 06400025)

$5.99

$

Usually ships in 4-12 days

0

46

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 07003100

BLT-SCRHFWH .38-16X.75 PL
(Superseded to 07028500)

$1.49

$

In Stock, only 2 left!

0

48

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

49

Ariens 02429200

BOTTOM MOUNT

$55.99

$

Usually ships in 4-12 days

0

50

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, only 2 left!

0

51

Ariens 01207800

CHAIN
(Superseded to 02477700)

$14.99

$

In Stock, only 2 left!

0

52

Ariens 06505900

NUT-LK-FLG .375-16 GR A PL

$

$

Not available

53

Ariens 02429800

SPROCKET

$

$

Not available

54

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 7

0

55

Ariens 02400400

GEAR BOX ASSEMBLY

$571.99

$

Usually ships in 4-12 days

0

56

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

$1.49

$

In Stock, Qty 8

0

57

Ariens 02429400

MOUNTING PLATE

$

$

Not available

58

Ariens 02429600

BEARING FLANGE

$5.99

$

Usually ships in 4-12 days

0

59

Ariens 02447600

SPACER 1.006X1.307X.500

$24.99

$

Usually ships in 4-12 days

0

60

Ariens 01062000

SPROCKET

$103.99

$

Usually ships in 4-12 days

0

61

Ariens 05805600

PIN-ROLL .188X1.75

$1.99

$

Usually ships in 4-12 days

0

62

Ariens 02429100

SHAFT

$77.99

$

Usually ships in 4-12 days

0

63

Ariens 01060900

SPROCKET

$113.99

$

Usually ships in 4-12 days

0

64

Ariens 05803000

PIN-ROLL .188X1.50

$0.99

$

In Stock, Qty 20+

0

65

Ariens 02429900

DRIVE SHAFT

$

$

Not available

66

Ariens 02430600

JOINT, UNIVERSAL
(Superseded to 02495500)

$285.99

$

Usually ships in 4-12 days

0

67

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

68

Ariens 50202100

HUB ASSEMBLY

$78.99

$

In Stock, only 3 left!

0

69

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 17

0

70

Ariens 07002600

NUT-RETNR .38-16 TINRMAN

$9.49

$

In Stock, Qty 9

0

71

Ariens 07307000

PLY-V 9.0 X 1.25 3BLT

$34.99

$

In Stock, Qty 6

0

72

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, only 4 left!

0

73

Ariens 07210800

V-BELT, 4L-RAW EDGE

Note: (8 HP & 10 HP Tractor)

$45.99

$

In Stock, Qty 20+

0

Ariens 07213000

V-BELT, 4L-RAW EDGE

Note: (11 HP & 12 HP Tractor)

$31.99

$

In Stock, Qty 8

0

74

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 1 left!

0

75

Ariens 02429500

STIFFENER PLATE
(Superseded to 02429551)

$

$

Not available

76

Ariens 02423600

BELT RETAINER
(Superseded to 02423651)

$22.99

$

Usually ships in 4-12 days

0

77

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 5

0

78

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

79

Ariens 02411300

FLANGE, SPHERICAL 2"

$

$

Not available
