824015 - Ariens 36" Sno-Brush Drive Unit (SN: 000101 & Above) Brush Head Parts Diagram

36" Sno-Brush Drive Unit

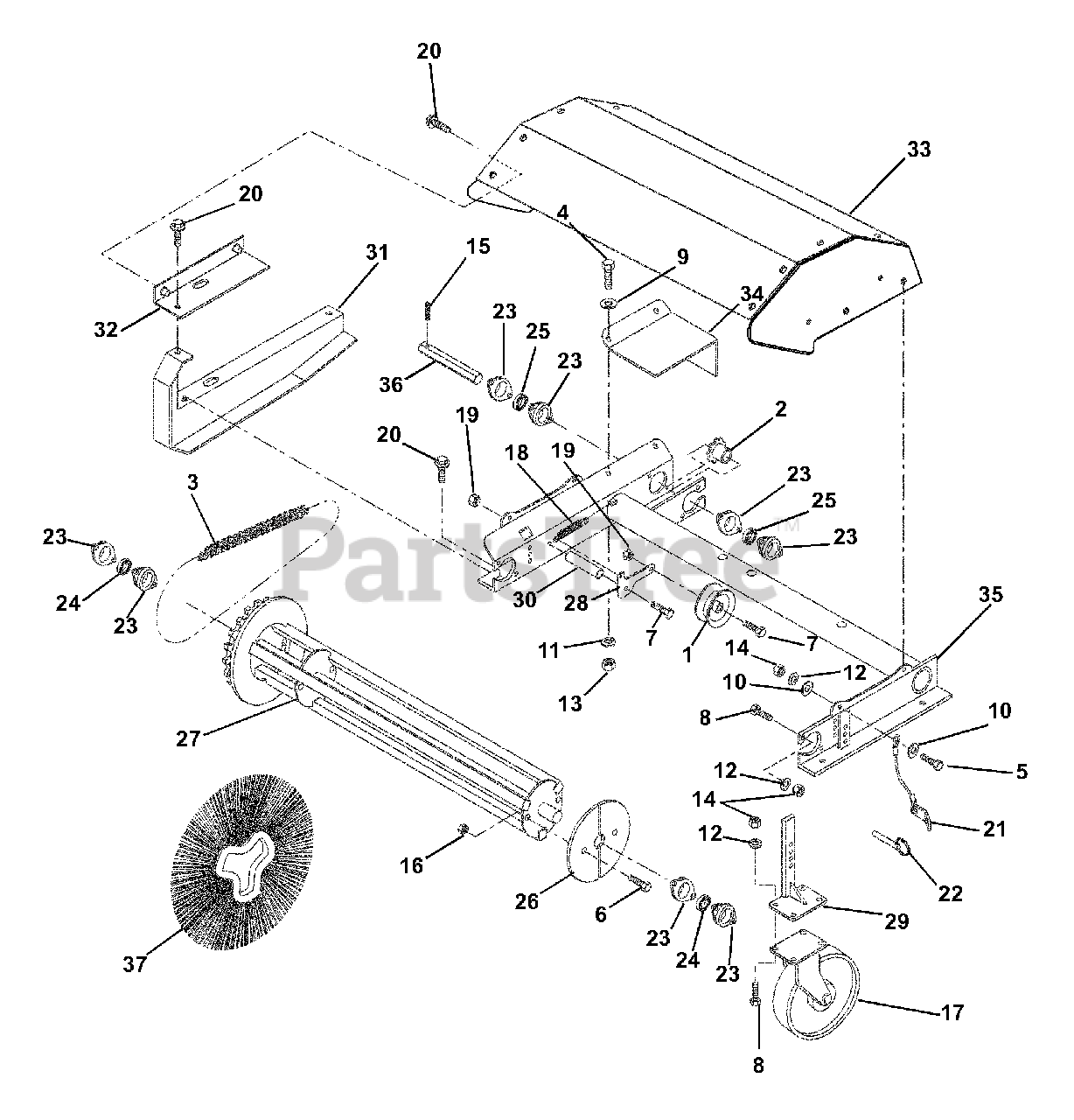

Brush Head Parts Diagram

  • Title

1

Ariens 01061300

CHAIN TIGHTENER

$

$

Not available

2

Ariens 01060900

SPROCKET

$

$

Not available

3

Ariens 02468300

CHAIN, ASS'Y #40X106 EDLS W/LK

$105.99

$

Usually ships in 4-12 days

0

4

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 13

0

5

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

6

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

8

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

9

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

10

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 13

0

12

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0

14

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 9

0

15

Ariens 02468400

PIN, SPRING LOK .187 X 1.25

$

$

Not available

16

Ariens 02468500

NUT, LOK STAMPED .312-18 TINN.

$

$

Not available

17

Ariens 07109400

WHL, 5 DIA.

$81.99

$

In Stock, Qty 9

0

18

Ariens 02468600

SPRING, TENSION .50 X 3.0

$

$

Not available

19

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 02468700

SCREW, GR 10.9 M6X1-20

$

$

Not available

21

Ariens 02468800

LANYARD,.06 CAB.1.25X6,TYP C

$

$

Not available

22

Ariens 00547800

PIN, HITCH, .38 X 2

$11.99

$

Usually ships in 4-12 days

0

23

Ariens 02411300

FLANGE, SPHERICAL 2"

$8.49

$

Usually ships in 4-12 days

0

24

Ariens 05423400

BRG 1.00 BORE, SPHER. OD.

$

$

Not available

25

Ariens 05409700

BRG-BALL .884HEXX52MMX1.07

$96.99

$

Usually ships in 4-12 days

0

26

Ariens 01062900

RETAINER PLATE (SET OF 2)

$

$

Not available

27

Ariens 02469000

WELD, CORE C36TW

$

$

Not available

28

Ariens 02469100

ARM, IDLER,BRM C36TW

$

$

Not available

29

Ariens 02469200

WELD, CASTER LEG, C36TW

$197.99

$

In Stock, only 1 left!

0

30

Ariens 02469300

BSHG, .62X12 GA X.75

$

$

Not available

31

Ariens 02469400

SHIELD,CHAIN, ARIENS

$

$

Not available

32

Ariens 02469500

SHIELD, CHAIN,TOP,ARIENS

$

$

Not available

33

Ariens 02469600

KIT, HD, ARIENS

$

$

Not available

34

Ariens 02469700

SHIELD, INPUT, ARIENS

$

$

Not available

35

Ariens 02469800

WELD, BFRM,ARIENS

$

$

Not available

36

Ariens 02490600

SHAFT, HEX 20.1", W/HOLE

$

$

Not available

37

Ariens 02470000

SET,SECTION,24",P,CONV.

$597.99

$

Usually ships in 4-12 days

0
