8244 - Lawn-Boy Walk-Behind Mower (SN: G00000001 - G99999999) (1988) HOUSING AND SHROUD GROUP MODEL: 8244 Parts Diagram

Walk-Behind Mower

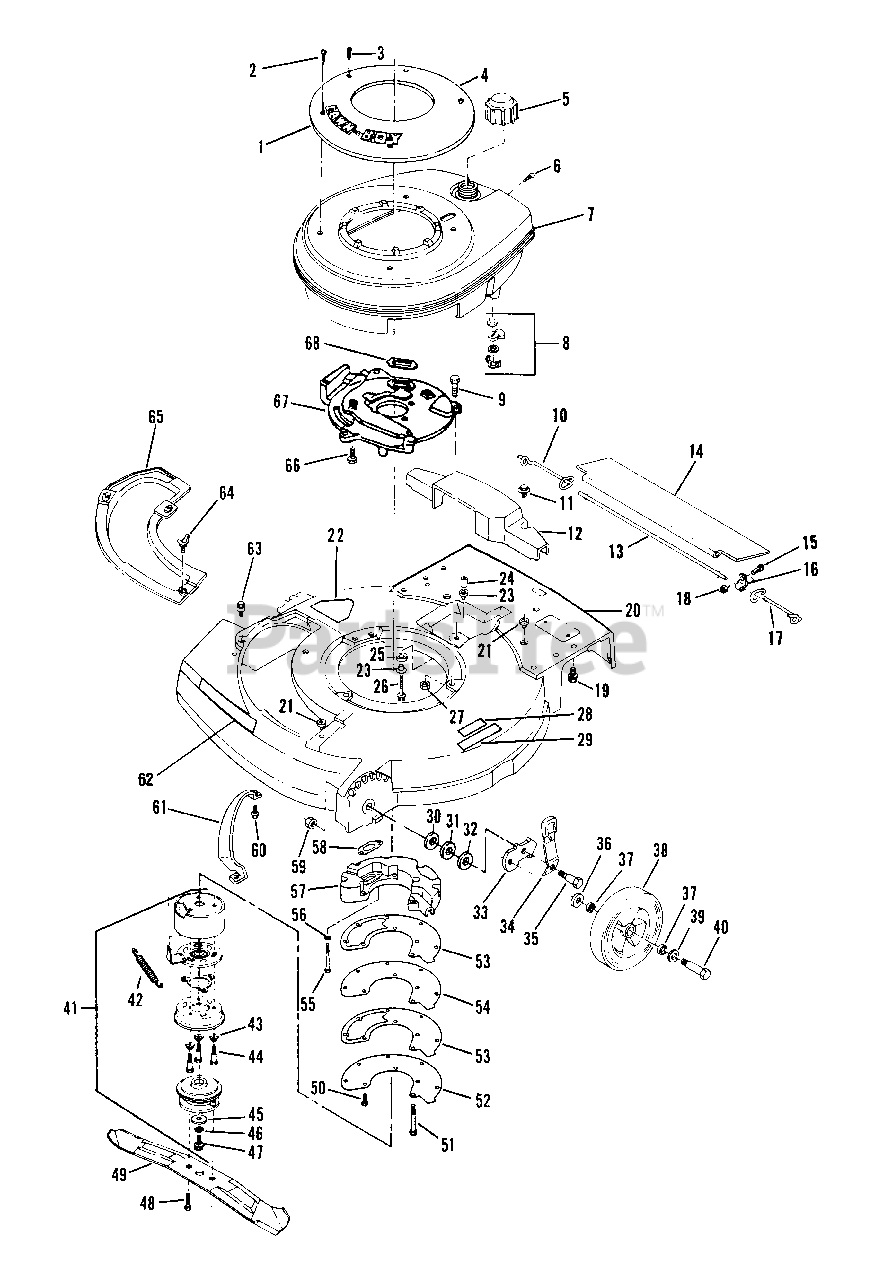

HOUSING AND SHROUD GROUP MODEL: 8244 Parts Diagram

  • Title

1

Lawn-Boy 613092

Decal-Lawn-Boy

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 611395

Screw
(Superseded to 611543)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 612428

Screw-Starter Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

4

Lawn-Boy 683957

Starter Base and Nut Assembly
(Superseded to 684301)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 682755

Fuel Cap

Note: Important Note: Replacement parts may not always be available in matching colors.

$21.99

$

In Stock, Qty 9

0

Lawn-Boy 607213

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

Lawn-Boy 609150

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 10

0

6

Lawn-Boy 608997

Screw-Shroud to C.D. Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 3 left!

0

7

Lawn-Boy 683916

Shroud-Engine
(Superseded to 16-5539)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 681818

Fuel Shut-Off Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 611774

Screw-Muffler Plate to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 608497

Spring-R.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$33.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 606452

Screw-Axle Cover Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 611297

Cover-Drive Axle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 608174

Rod-Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 611262

Shield-Trailing

Note: Important Note: Replacement parts may not always be available in matching colors.

$35.99

$

In Stock, Qty 5

0

15

Lawn-Boy 609891

Screw
(Superseded to 700138)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 608161

Clamp

Note: Important Note: Replacement parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 608498

Spring-L.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 602315

Nut-Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

19

Lawn-Boy 607188

Screw-Handle Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

20

Lawn-Boy 682787

Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 610640

Decal-Blade Contact Warning
(Superseded to 43-8480)

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 8

0

23

Lawn-Boy 607605

Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 609588

Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 307417

Grommet

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 611595

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 608311

Nut-Muffler Plate to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 145252

Decal-Starting Pad

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 609961

Pad-Starting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 608834

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 146014

Washer-Shim-Wheel Height Adjust Bracket

Note: Important Note: Replacement parts may not always be available in matching colors. Use as required to adjust wheel wobble.

$

$

Not available

32

Lawn-Boy 146015

Washer-Shim-Wheel Height Adjust Bracket

Note: Important Note: Replacement parts may not always be available in matching colors. Use as required to adjust wheel wobble.

$3.49

$

Usually ships in 3-6 days

0

33

Lawn-Boy 608833

Bracket-Wheel Height Adjust
(Superseded to 608833-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 1 left!

0

34

Lawn-Boy 153444

Knob and Spring Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 610646

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

36

Lawn-Boy 603620

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

37

Lawn-Boy 605255

Washer-Felt

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

38

Lawn-Boy 678636

Wheel-Front

Note: Important Note: Replacement parts may not always be available in matching colors.

$25.99

$

In Stock, Qty 5

0

39

Lawn-Boy 605256

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 6

0

40

Lawn-Boy 603441

Bolt-Wheel-Front

Note: Important Note: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

41

Lawn-Boy 683098

Clutch Brake Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 611415

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$58.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 611418

Spring Pressure

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 611399

Screw-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 611412

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$30.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 611413

Lockwasher

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 611417

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 611398

Screw-Sems-Blade

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 683683

Blade-21"

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

50

Lawn-Boy 609471

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 20+

0

51

Lawn-Boy 613172

Screw
(Superseded to 32144-57)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

52

Lawn-Boy 613171

Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 613175

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$53.99

$

Usually ships in 3-6 days

0

54

Lawn-Boy 613174

Heat Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 133022

Screw
(Superseded to 322-20)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

56

Lawn-Boy 306453

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 613170

Muffler
(Superseded to 684089)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 613173

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 603773

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

60

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 7

0

61

Lawn-Boy 608175

Toe Bar

Note: Important Note: Replacement parts may not always be available in matching colors.

$75.99

$

Usually ships in 3-6 days

0

62

Lawn-Boy 613036

Decal-Headliner

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 607809

Screw-Plate and Chute Mounting
(Superseded to 614677)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 20+

0

64

Lawn-Boy 696733

Wing Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

65

Lawn-Boy 607560

Cover Plate
(Superseded to 95-7052)

Note: Important Note: Replacement parts may not always be available in matching colors.

$30.99

$

In Stock, only 1 left!

0

66

Lawn-Boy 611373

Plate-Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

68

Lawn-Boy 609420

Gasket-Exhaust
(Superseded to 93-1233)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 16

0
