825 (190-825-101) - Cub Cadet 30" Hydraulic Rear Mount Tiller

30" Hydraulic Rear Mount Tiller

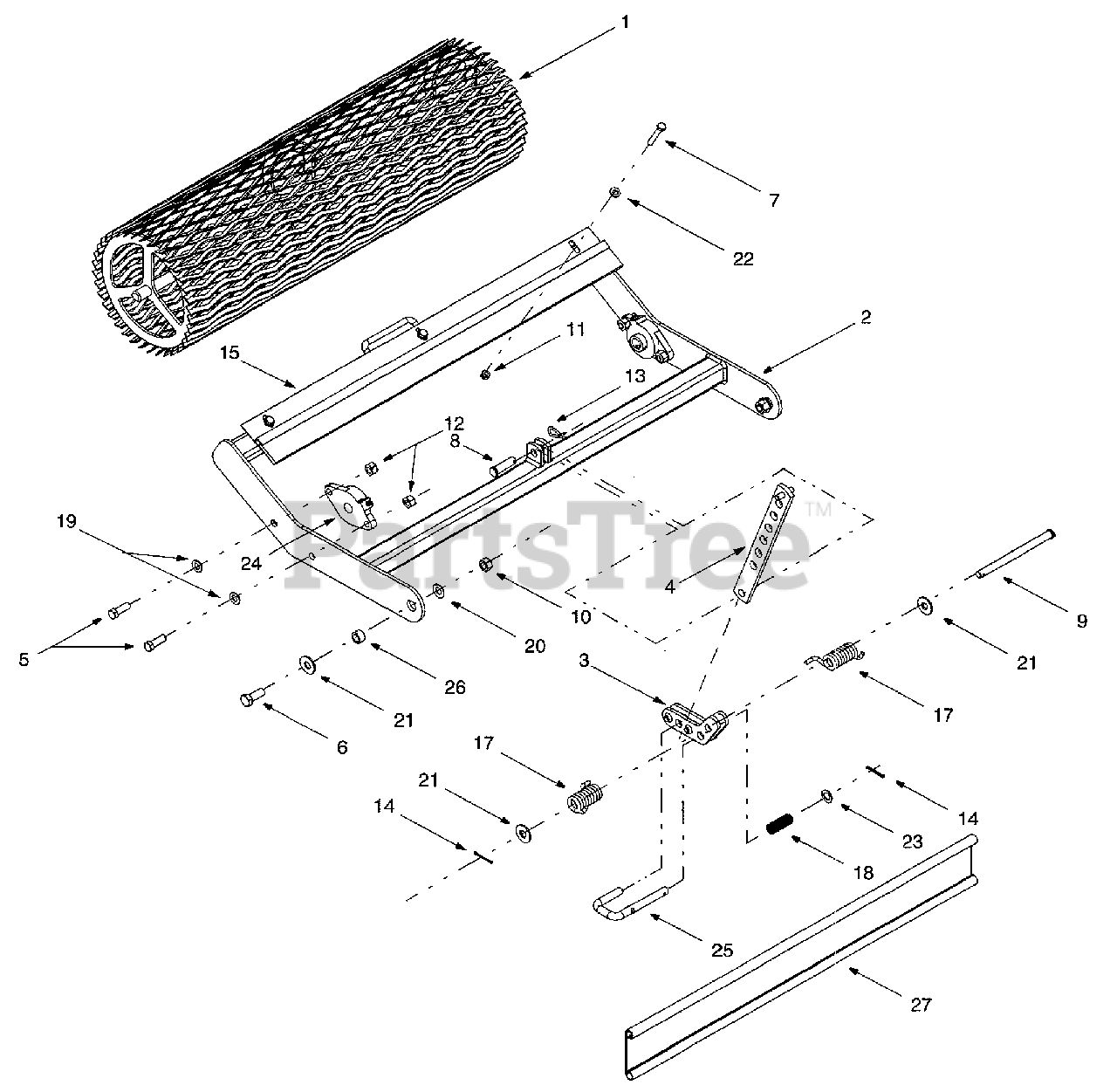

825 (190-825-101) - Cub Cadet 30" Hydraulic Rear Mount Tiller > Parts Diagrams (4) > OEM-190-007 Roller Assembly

  • Title
686-0145

1

30-inch Roller Assembly

Part# 686-0145 (Superseded to 686-0145-0637)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 3 to 6 business days

Your price: $539.44

Variations

POWDER BLACK (0637)

ROLLER-SOIL GRADE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 3 to 6 business days

Your price: $539.44

686-0146

2

Roller Frame Assembly

Part# 686-0146

OEM Warranty Repair Part for Cub Cadet

Variations

POWDER BLACK (0637)

FRAME ASSEMBLY (POWDER BLACK)

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Cub Cadet

Not available

686-0149

3

Roller Bracket Assembly

Part# 686-0149 (Superseded to 686-0149-0637)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 3 to 6 business days

Your price: $21.34

Variations

POWDER BLACK (0637)

BRACKET ASM-ROLLER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 3 to 6 business days

Your price: $21.34

686-0153

4

Lock Pivot Plate Assembly

Part# 686-0153 (Superseded to 686-0153-0637)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 3 to 6 business days

Your price: $31.34

Variations

POWDER BLACK (0637)

BAR-ADJUSTMENT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 3 to 6 business days

Your price: $31.34

710-3029

5

Hex Cap Screw, 7/16-20 x 1.25

Part# 710-3029

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.84

710-3032

6

Hex Cap Screw, 1/2-13 x 1.25

Part# 710-3032

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 3 to 6 business days

Your price: $4.19

710-3103

7

Hex Cap Screw, 5/16-18 x 2.0

Part# 710-3103

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.94

711-0231

8

Clevis Pin, .50 x 1.59

Part# 711-0231 (Superseded to 711-0231A)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 3 to 6 business days

Your price: $4.05

711-1384

9

Clevis Pin, .50 x 6.5

Part# 711-1384

OEM Warranty Repair Part for Cub Cadet

Not available

712-0206

10

Hex Nut, 1/2-13

Part# 712-0206 (Superseded to 912-0206)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.89

712-3009

11

Hex Lock Nut, 5/16-18

Part# 712-3009 (Superseded to 912-3009)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $4.44

712-3067

12

Hex Lock Nut, 7/16-20

Part# 712-3067

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 3 to 6 business days

Your price: $4.45

714-0149B

13

Internal Cotter Pin

Part# 714-0149B (Superseded to 914-0149B)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.91

714-0470

14

Cotter Pin, 1/8 x 1.25

Part# 714-0470 (Superseded to 914-0470)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.85

727-0522

15

30-inch Roller Brush

Part# 727-0522

OEM Warranty Repair Part for Cub Cadet

Not available

732-0988

?16

RH Torsion Spring

Part# 732-0988

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 3 to 6 business days

Your price: $29.11

732-0989

17

LH Torsion Spring

Part# 732-0989

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 3 to 6 business days

Your price: $27.03

732-3091

18

Compression Spring, .57 x 2.09

Part# 732-3091

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 3 to 6 business days

Your price: $5.40

736-0226

19

Flat Washer, .474 x .879 x .064

Part# 736-0226 (Superseded to 936-0226)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.67

736-0253

20

Belleville Washer

Part# 736-0253 (Superseded to 936-0253)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.63

736-0275

21

Flat Washer, .344 x .688 x .065

Part# 736-0275 (Superseded to 936-0275)

OEM Warranty Repair Part for Cub Cadet

Not available

736-0257

22

Flat Washer, .536 x 1.262 x .101

Part# 736-0257 (Superseded to 936-0179)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.97

736-3068

23

Flat Washer, .50 x .875 x .060

Part# 736-3068

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 3 to 6 business days

Your price: $4.39

741-1103

24

Flange Bearing, .75

Part# 741-1103

OEM Warranty Repair Part for Cub Cadet

Not available

747-1207

25

Roller Locking Rod

Part# 747-1207

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 3 to 6 business days

Your price: $28.29

750-1069

26

Spacer, .51 x .75 x .44

Part# 750-1069 (Superseded to 950-1069)

OEM Warranty Repair Part for Cub Cadet

Not available

786-0274

27

Tine Shield

Part# 786-0274

OEM Warranty Repair Part for Cub Cadet

Variations

POWDER BLACK (0637)

SHIELD-FRONT TINE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for Cub Cadet

Not available

CUB YELLOW-99 (0716)

SHIELD-FRONT TINE

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for Cub Cadet

Not available
