825002 - Ariens 40" Sno-Blade RM (SN: 000101 & Above) Snow Blade Parts Diagram

40" Sno-Blade RM

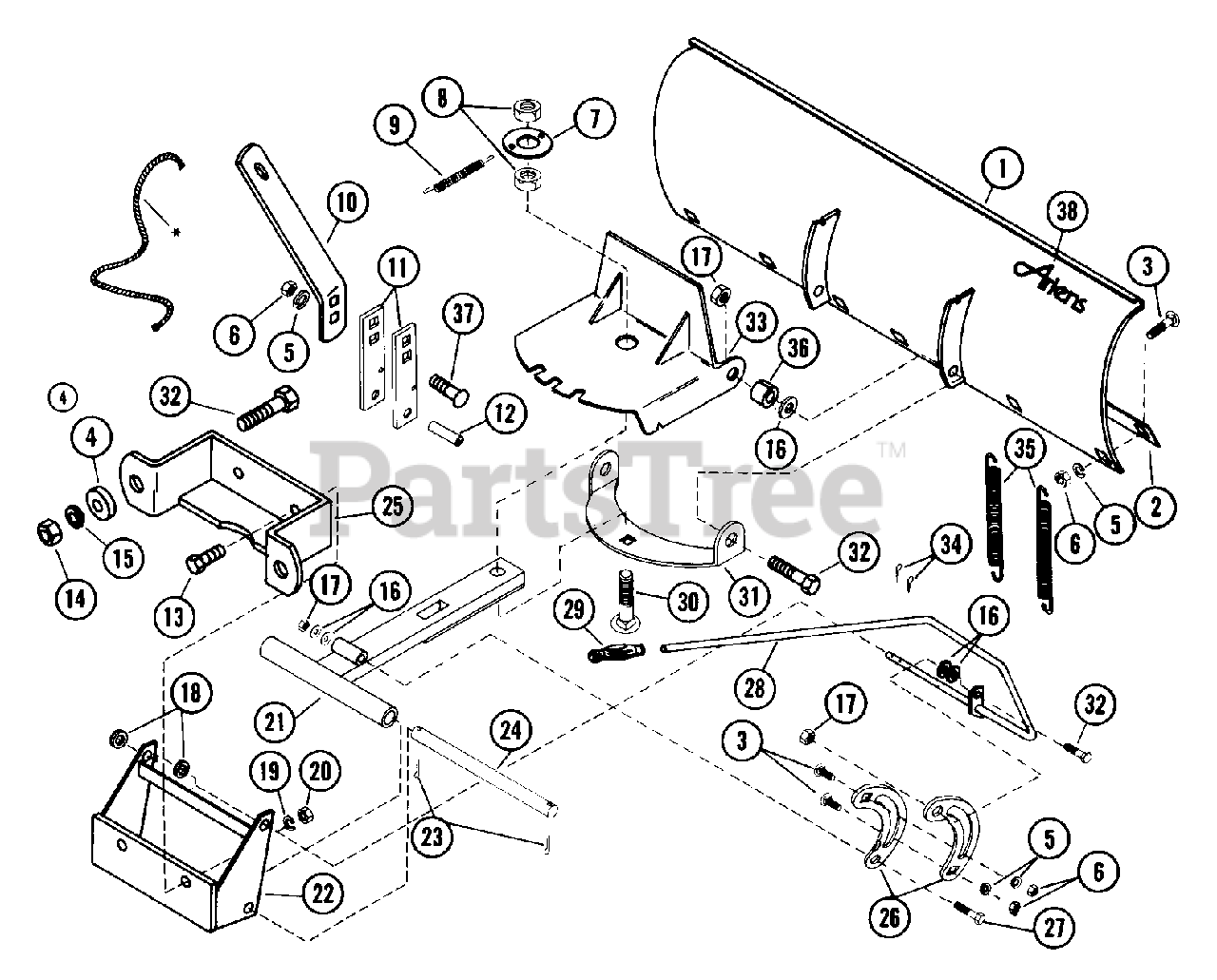

Snow Blade Parts Diagram

  • Title

1

Ariens 02521600

40 INCH SNOW BLADE

$

$

Not available

2

Ariens 02521700

WEAR BAR

$

$

Not available

3

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 02522400

WASHER

$

$

Not available

5

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, Qty 10

0

6

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 1 left!

0

7

Ariens 01315100

LATCH SPRING WASHER

$

$

Not available

8

Ariens 06202500

BLT-RDHDSQNK .75-10X3.0

$

$

Not available

9

Ariens 08305200

SG-TENS .106X.56X2.75 WLD 10

$

$

Not available

10

Ariens 02522100

PIVOT BLOCK EXTENSION

$

$

Not available

11

Ariens 01314900

BAR PIVOT LOCK

$

$

Not available

12

Ariens 05800600

PIN-ROLL .250X1.00

$1.99

$

Usually ships in 4-12 days

0

13

Ariens 05908300

BLT-HEX .25-20X1.00 PL GR5
(Superseded to 05947700)

$1.49

$

In Stock, Qty 7

0

14

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

In Stock, only 2 left!

0

15

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

16

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 3 left!

0

18

Ariens 06400400

WSHR-FL-STL.656X1.312X.095 PL
(Superseded to 06442800)

$2.49

$

In Stock, Qty 20+

0

19

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

20

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 7

0

21

Ariens 02521800

PUSH TUBE ASSEMBLY

$

$

Not available

22

Ariens 02521900

MOUNT BRACKET

$

$

Not available

23

Ariens 06701100

@PIN-CTR .16X1.25 EXTPRSQCT YZ

$1.99

$

Usually ships in 4-12 days

0

24

Ariens 00335600

PIVOT ROD

$

$

Not available

25

Ariens 02522200

TRACTOR MOUNT

$

$

Not available

26

Ariens 00335500

LIFT LINK

$

$

Not available

27

Ariens 05911000

BLT-HEX .50-13X3.00 PL GR2

$

$

Not available

28

Ariens 02522000

LIFT HANDLE

$

$

Not available

29

Ariens 07502700

GRIP

$

$

Not available

30

Ariens 06202500

BLT-RDHDSQNK .75-10X3.0

$

$

Not available

31

Ariens 01314500

LOWER PIVOT PLATE

$

$

Not available

32

Ariens 05901000

BLT-HEX .50-13X1.50 PL GR2
(Superseded to 05962000)

$3.99

$

In Stock, only 1 left!

0

33

Ariens 01314400

UPPER PIVOT PLATE

$

$

Not available

34

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

35

Ariens 08305100

SG-TENS .125X.81X6.50 WLD 10

$

$

Not available

36

Ariens 02522300

PIVOT BUSHING

$

$

Not available

37

Ariens 06201600

BLT-RDHDSQNK .38-16X1.25 PL
(Superseded to 06224100)

$2.49

$

In Stock, Qty 20+

0

38

Ariens 07858000

DECAL - ARIENS
(Superseded to 07875900)

$

$

Not available
