826 (310-588-100) - Cub Cadet 26" Snow Thrower (1990) Snow Thrower Parts Diagram

26" Snow Thrower

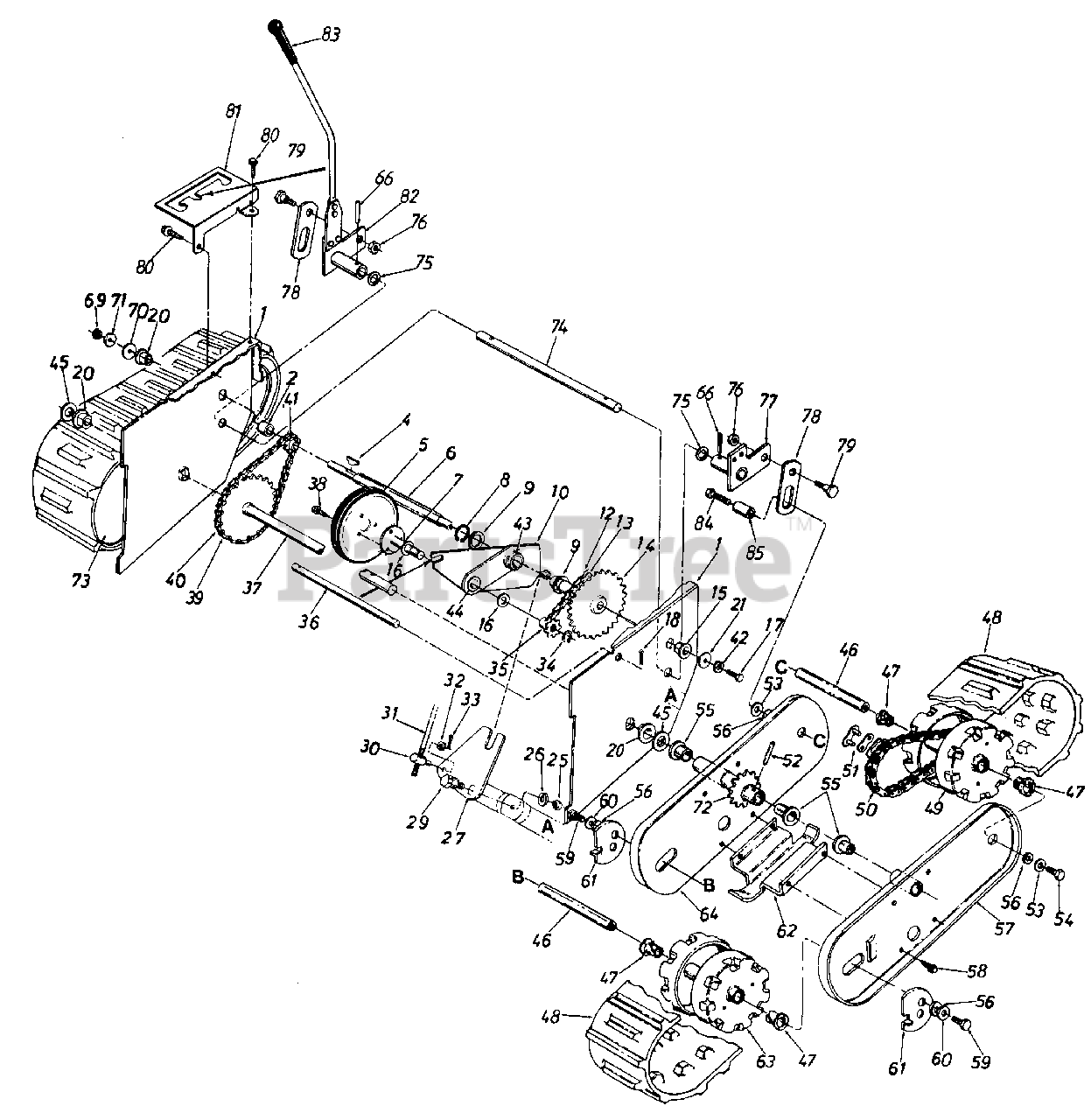

Snow Thrower Parts Diagram

  • Title

1

Cub Cadet 784-5197

FRAME ASSY

$

$

Not available

2

Cub Cadet 750-0499

SPACER

$22.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 714-0129

KEY-HI-PRO #4-3/32X5/8 DIA-HDN
(Superseded to 914-0129)

$

$

Not available

5

Cub Cadet 05080

WHEEL ASSY-FRICTION
(Superseded to 05080AP)

$33.99

$

In Stock, Qty 17

0

6

Cub Cadet 738-0496

SHAFT-HEX

$

$

Not available

7

Cub Cadet 05883

PLATE ASSY-FRICTION WHEEL MTG

$

$

Not available

8

Cub Cadet 716-0102

RING-SNAP FOR 1.00 DIA SHAFT

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0163

WASHER-FL-1.03 ID X 1.62 X .03 HD

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 05880

BRACKET ASSY-SLIDING

$

$

Not available

12

Cub Cadet 713-0285

CHAIN X 35 LINKS

$

$

Not available

13

Cub Cadet 713-0723

#41 MASTER LINK 1/2 PITCH TYPEII
(Superseded to 913-0723)

$

$

Not available

14

Cub Cadet 713-0281

SPROCKET ASSY-32T

$

$

Currently unavailable

15

Cub Cadet 741-0225

BEARING-FLANGE
(Superseded to 941-0225)

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0290

WASHER-FL

$6.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0538

SCREW-HEX 5/16-18 X .62

$4.49

$

In Stock, Qty 9

0

18

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA X .75

$4.49

$

In Stock, only 4 left!

0

20

Cub Cadet 748-0245

BEARING-FLANGE
(Superseded to 941-0245)

$9.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0231

WASHER-FL-.312 X 1.125 X .125

$4.49

$

In Stock, only 4 left!

0

25

Cub Cadet 712-0342

NUT-HEX JAM 3/8-18
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.49

$

In Stock, Qty 20+

0

27

Cub Cadet 05898

BRACKET-LINKAGE

$

$

Not available

29

Cub Cadet 738-0281

SCREW-SHLD .625 DIA X .163

$9.99

$

In Stock, only 1 left!

0

30

Cub Cadet 711-0677

FERRULE
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

31

Cub Cadet 747-0356

ROD-SHIFT

$

$

Not available

32

Cub Cadet 736-0264

WASHER-FL-.344 X .62

$6.49

$

In Stock, only 1 left!

0

33

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA X .75

$4.49

$

In Stock, only 4 left!

0

34

Cub Cadet 716-0145

RING-C SNAP
(Superseded to 716-0397)

$

$

Not available

35

Cub Cadet 713-0280

SPROCKET-7T

$

$

Not available

36

Cub Cadet 738-0497

SHAFT

$

$

Currently unavailable

37

Cub Cadet 713-0323

AXLE ASSY-WHEEL

$

$

Not available

38

Cub Cadet 710-0600

SCREW-HEX WASH SF TAPP

$3.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 713-0287

#420 CHAIN 1/2 PITCH X 39 LINKS

$

$

Not available

40

Cub Cadet 713-0154

#420 MASTER LINK 1/2 PITCH TYPE II
(Superseded to 913-0154)

$

$

Not available

41

Cub Cadet 748-0204

SPROCKET-CENTER #41-8T

$

$

Not available

42

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 741-0476

BEARING
(Superseded to 741-04488)

$8.99

$

In Stock, Qty 20+

0

44

Cub Cadet 748-0184

BEARING-FLANGE .630 ID

$7.49

$

Usually ships in 3-6 days

0

45

Cub Cadet 736-0188

WASHER-FL-.760ID X 1.49OD X .06HDN

$3.99

$

In Stock, Qty 20+

0

46

Cub Cadet 738-0684

SHAFT-WHEEL

$

$

Not available

47

Cub Cadet 741-0313

BEARING-FLANGE
(Superseded to 741-0487C)

$6.99

$

In Stock, Qty 20+

0

48

Cub Cadet 731-0775

TRACK-SNOWTHROWER

$292.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 784-5310

WHEEL ASSY-DRIVE

$

$

Currently unavailable

50

Cub Cadet 713-0269

#420 CHAIN 1/2 PITCH X 37 LINKS
(Superseded to 913-0269)

$32.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 713-0154

#420 MASTER LINK 1/2 PITCH TYPE II
(Superseded to 913-0154)

$

$

Not available

52

Cub Cadet 715-0114

PIN-SPRING SPIRAL 1/4X1.5 HEAVY DT

$8.49

$

In Stock, Qty 9

0

53

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$3.99

$

In Stock, Qty 20+

0

54

Cub Cadet 710-0237

SCREW-HEX 5/16-24 X .62

$4.49

$

Usually ships in 3-6 days

0

55

Cub Cadet 741-0382

BEARING-FLANGE

$

$

Not available

56

Cub Cadet 736-0326

WASHER-FL

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 784-5305

PLATE ASSY-OUTER-LH

$

$

Not available

Cub Cadet 784-5306

PLATE ASSY-OUTER-RH

Note: (Not Shown)

$

$

Not available

58

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$3.99

$

In Stock, Qty 20+

0

59

Cub Cadet 710-0237

SCREW-HEX 5/16-24 X .62

$4.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$3.99

$

In Stock, Qty 20+

0

61

Cub Cadet 784-5312

ADJUSTER-TRACK
(Superseded to 784-5312A)

$

$

Not available

62

Cub Cadet 784-5301

SHOE-SKID

$

$

Not available

63

Cub Cadet 784-5311

IDLER ASSY-WHEEL

$

$

Not available

64

Cub Cadet 784-5453

PLATE ASSY-INNER-LH

$

$

Currently unavailable

66

Cub Cadet 715-0143

PIN-SPRING-SPIR 1/4 X 1.250

$4.49

$

In Stock, Qty 15

0

69

Cub Cadet 712-0200

NUT-HEX INS L-1/2-20
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

70

Cub Cadet 736-0257

WASHER-FL-.546 X 1.28 X .090
(Superseded to 936-0179)

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 736-0253

WASHER-BELL .505 ID X 1.00 OD

$3.99

$

In Stock, Qty 20+

0

72

Cub Cadet 713-0366

SPROCKET ASSY-17T

$

$

Not available

73

Cub Cadet 784-5454

PLATE ASSY-INNER-RH

$

$

Not available

74

Cub Cadet 738-0734

AXLE-TRACK LOCK

$

$

Currently unavailable

75

Cub Cadet 736-0290

WASHER-FL

$6.49

$

In Stock, Qty 20+

0

76

Cub Cadet 712-0375

NUT-HEX CENTER L-3/8-16

$4.49

$

In Stock, Qty 12

0

77

Cub Cadet 784-5422

ARM ASSY-PIVOT-LH

$

$

Currently unavailable

78

Cub Cadet 784-5424

LINK-SLOTTED

$

$

Not available

79

Cub Cadet 738-0322

SCREW-SHLD
(Superseded to 738-0322A)

$6.49

$

In Stock, Qty 5

0

80

Cub Cadet 710-0726

SCREW-HEX HD TAP

$3.99

$

In Stock, Qty 20+

0

81

Cub Cadet 784-5450

PLATE-POS SELECTOR

$

$

Not available

82

Cub Cadet 784-5421

HANDLE ASSY-LOCK

$

$

Not available

83

Cub Cadet 720-0143

GRIP

$

$

Not available

84

Cub Cadet 710-0672

SCREW-HEX 5/16-24 X 1.25

$4.49

$

In Stock, Qty 20+

0

85

Cub Cadet 750-0589

SPACER
(Superseded to 950-0589)

$5.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 750-0589

SPACER
(Superseded to 950-0589)

$5.99

$

Usually ships in 3-6 days

0
