826 (312-588-100) - Cub Cadet 26" Snow Thrower (1992) Snow Thrower Parts Diagram

26" Snow Thrower

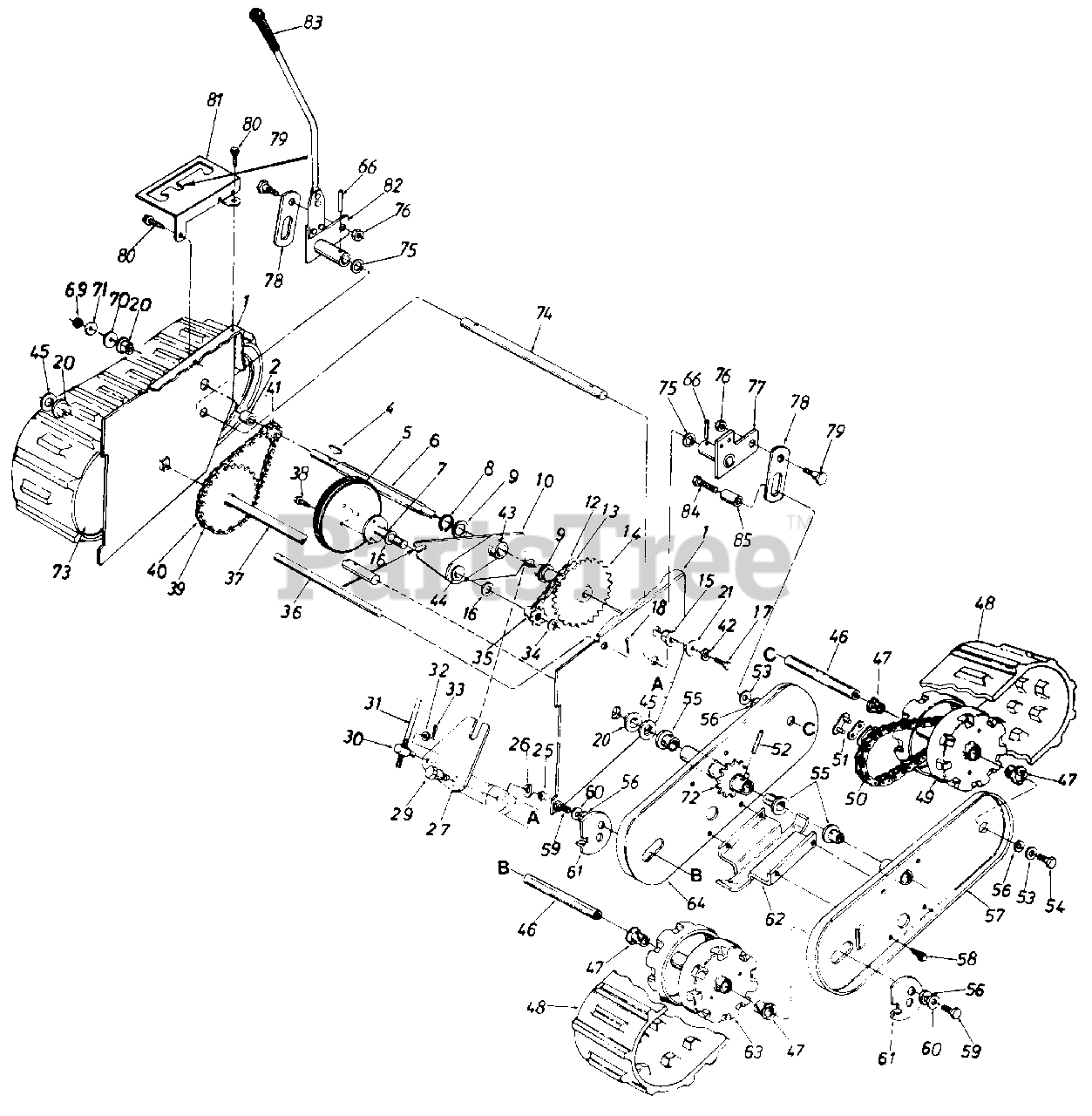

Snow Thrower Parts Diagram

  • Title

1

Cub Cadet 784-5197

Frame Ass'y.

$

$

Not available

2

Cub Cadet 750-0499

Spacer .50" I.D. x .75" O.D. x .78" Lg.

$22.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 714-0129

#4 Hi-Pro Key 3/32 x 518" Dia.
(Superseded to 914-0129)

$

$

Not available

5

Cub Cadet 05080

Friction Wheel Ass'y.
(Superseded to 05080AP)

$33.99

$

In Stock, Qty 17

0

6

Cub Cadet 738-0496

Hex Shaft

$

$

Not available

7

Cub Cadet 05883

Friction Wheel Mounting Plate Ass'y.

$

$

Not available

8

Cub Cadet 716-0102

Snap Ring 1.00" Dia. Shaft

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0163

Fl-Wash. 1.00" x 1.63" O.D. x.03

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 05880

Sliding Bracket Ass'y.

$

$

Not available

12

Cub Cadet 713-0285

#41 Chain 1/2" Pitch x 35 Links

$

$

Not available

13

Cub Cadet 713-0723

Master Link for #41 Chain
(Superseded to 913-0723)

$

$

Not available

14

Cub Cadet 713-0281

32 Teeth Sprocket Ass'y.

$

$

Currently unavailable

15

Cub Cadet 741-0225

Hex Flange Brg. .630" I.D.
(Superseded to 941-0225)

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0290

Fl-Wash. .62" I.D. x 1.00" O.D. x .06

$6.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0538

Hex Lock Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 9

0

18

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 4 left!

0

20

Cub Cadet 748-0245

Hex Flange Brg. .751" I.D.
(Superseded to 941-0245)

$9.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0231

Fl-Wash. .34" I.D. x 1.12" O.D. x 125

$4.49

$

In Stock, only 4 left!

0

25

Cub Cadet 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0169

L-Wash. 318" I.D.

$3.49

$

In Stock, Qty 20+

0

27

Cub Cadet 05898

Shifting Linkage Bracket

$

$

Not available

29

Cub Cadet 738-0281

Shld. Bolt 625" Dia. x 170" Lg.

$9.99

$

In Stock, only 1 left!

0

30

Cub Cadet 711-0677

Adjustment Ferrule
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

31

Cub Cadet 747-0356

Shifting Rod 5/16" Dia. x 32.50" Lg.

$

$

Not available

32

Cub Cadet 736-0264

Fl-Wash. .34" I.D. x .64" O.D. x .06

$6.49

$

In Stock, only 1 left!

0

33

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 4 left!

0

34

Cub Cadet 716-0145

Snap Ring .562" Dia. Shaft
(Superseded to 716-0397)

$

$

Not available

35

Cub Cadet 713-0280

Sprocket 7 Teeth x 50" Pitch

$

$

Not available

36

Cub Cadet 738-0497

Shaft .50" Dia. x 9.50" Lg.

$

$

Currently unavailable

37

Cub Cadet 713-0323

32 Teeth Wheel Shaft Ass'y.

$

$

Not available

38

Cub Cadet 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 713-0287

#420 Chain 1/2" Pitch x 39 Links

$

$

Not available

40

Cub Cadet 713-0154

Master Link for #420 Chain
(Superseded to 913-0154)

$

$

Not available

41

Cub Cadet 748-0204

8 Teeth Center Sprocket

$

$

Not available

42

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 741-0476

Plastic Bearing
(Superseded to 741-04488)

$8.99

$

In Stock, Qty 20+

0

44

Cub Cadet 748-0184

Bronze Bearing

$7.49

$

Usually ships in 3-6 days

0

45

Cub Cadet 736-0188

Fl-Wash. 76" I.D x 1.49 O.D.

$3.99

$

In Stock, Qty 20+

0

46

Cub Cadet 738-0684

Wheel Shaft 5/8 x 4.25" Lg.

$

$

Not available

47

Cub Cadet 741-0313

Flange Brg. .632" I.D.
(Superseded to 741-0487C)

$6.99

$

In Stock, Qty 20+

0

48

Cub Cadet 731-0775

Snow Track 5" x 48"

$292.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 784-5310

Drive Wheel Ass'y.

$

$

Currently unavailable

50

Cub Cadet 713-0269

Chain #420 x 50 Pitch x 37 Links
(Superseded to 913-0269)

$32.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 713-0154

Master Link #420
(Superseded to 913-0154)

$

$

Not available

52

Cub Cadet 715-0114

Spring Pin Spir. 1/4" Dia. x 1.50" Lg.

$8.49

$

In Stock, Qty 9

0

53

Cub Cadet 736-0242

Bell-Wash. 345" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

54

Cub Cadet 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

55

Cub Cadet 741-0382

Flange Brg. .757" I.D.

$

$

Not available

56

Cub Cadet 736-0326

Fl-Wash. .510" I.D. x 1.0" O.D.

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 784-5305

Outer Plate Ass'y.-L.H.

$

$

Not available

Cub Cadet 784-5306

Outer Plate Ass'y.-R.H.

Note: (Not Shown)

$

$

Not available

58

Cub Cadet 710-0599

Hex Wash. S-Tap Scr 1/4-20 X .50" Lg.

$3.99

$

In Stock, Qty 20+

0

59

Cub Cadet 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

61

Cub Cadet 784-5312

Track Adjuster
(Superseded to 784-5312A)

$

$

Not available

62

Cub Cadet 784-5301

Skid Shoe

$

$

Not available

63

Cub Cadet 784-5311

Idler Wheel Ass'y.

$

$

Not available

64

Cub Cadet 784-5453

Inner Plate Ass'y.-L.H.

$

$

Currently unavailable

66

Cub Cadet 715-0143

Spring Pin 1/4" x 1.25" Lg.

$4.49

$

In Stock, Qty 15

0

69

Cub Cadet 712-0200

Hex Ins. L-Nut 1/2-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

70

Cub Cadet 736-0257

Fl-Wash. .53 I.D. x 1.25 O.D. x .10
(Superseded to 936-0179)

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 736-0253

Bell-Wash. .50 I.D. x 1.0 O.D. x .075

$3.99

$

In Stock, Qty 20+

0

72

Cub Cadet 713-0366

17T Sprocket Hub Ass'y.

$

$

Not available

73

Cub Cadet 784-5454

Inner Plate Ass'y.-R.H.

$

$

Not available

74

Cub Cadet 738-0734

Track Lock Axle

$

$

Currently unavailable

75

Cub Cadet 736-0290

Fl-Wash. 5/8 I.D. x 1" O.D.

$6.49

$

In Stock, Qty 20+

0

76

Cub Cadet 712-0375

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

77

Cub Cadet 784-5422

Pivot Arm Ass'y.-L.H.

$

$

Currently unavailable

78

Cub Cadet 784-5424

Slotted Link

$

$

Not available

79

Cub Cadet 738-0322

Shld. Bolt .625" Dia. x .217
(Superseded to 738-0322A)

$6.49

$

In Stock, Qty 5

0

80

Cub Cadet 710-0726

Hex Wash. AB-Tap Scr. 5/16 x .75" Lg

$3.99

$

In Stock, Qty 20+

0

81

Cub Cadet 784-5450

Position Selector Plate

$

$

Not available

82

Cub Cadet 784-5421

Track Lock Handle Ass'y.

$

$

Not available

83

Cub Cadet 720-0143

Grip

$

$

Not available

84

Cub Cadet 710-0672

Hex Bolt 5/16-24 x 1.25" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

85

Cub Cadet 750-0589

Spacer.325" I.D.
(Superseded to 950-0589)

$5.99

$

Usually ships in 3-6 days

0
