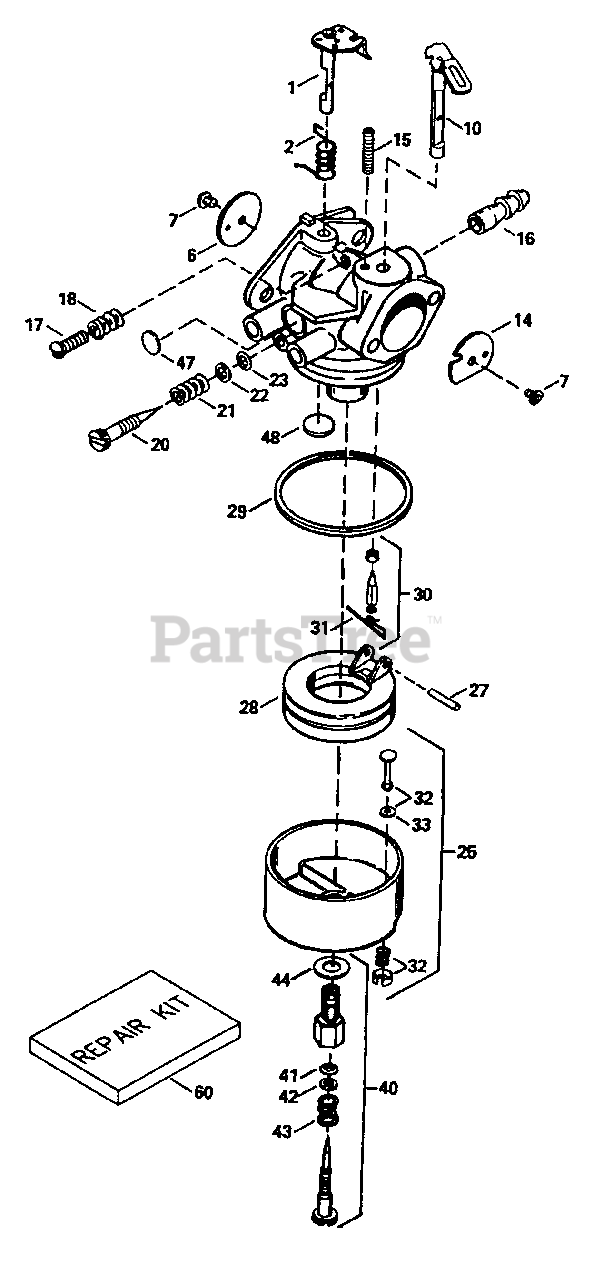

826 (315E646F100) - Cub Cadet 26" Snow Thrower Engine (1995) Carburetor Assembly Parts Diagram

26" Snow Thrower Engine

Carburetor Assembly Parts Diagram

  • Title
1

Cub Cadet TC-631776A

Throttle Shaft 8 Lever Ass'y.

$16.99

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-631970

Throttle Return Spring

$4.49

$

Usually ships in 3-12 days

0

6

Cub Cadet TC-631778

Throttle Shutter

$1.99

$

In Stock, only 3 left!

0

7

Cub Cadet TC-650506

Throttle & Choke Shutter Screw

$1.49

$

In Stock, Qty 17

0

10

Cub Cadet TC-632112

Choke Shaft & Lever Ass'y.

$7.49

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-632174

Choke Shutter

$4.49

$

Usually ships in 3-12 days

0

15

Cub Cadet TC-630735

Choke Positioning Spring

$1.99

$

In Stock, only 4 left!

0

16

Cub Cadet TC-632164

Fuel Fitting

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet TC-650417

Idle Speed Screw
(Superseded to TC-651025)

$1.99

$

In Stock, only 2 left!

0

18

Cub Cadet TC-630766

Tension Spring

$1.99

$

Usually ships in 3-12 days

0

20

Cub Cadet TC-632281

Idle Mixture Screw

Note: Included In Repair Kit, P/N TC-632347

$3.99

$

In Stock, Qty 5

0

21

Cub Cadet TC-630766

Idle Tension Spring

$1.99

$

Usually ships in 3-12 days

0

22

Cub Cadet TC-630739

Washer, Idle Screw

$1.99

$

In Stock, Qty 17

0

23

Cub Cadet TC-630740

O-Ring, Idle Screw

Note: Included In Repair Kit, P/N TC-632347

$2.49

$

In Stock, Qty 16

0

25

Cub Cadet TC-631951

Float Bowl Ass'y.

Note: (Incl. Nos. 32 & 33)

$17.99

$

In Stock, only 1 left!

0

27

Cub Cadet TC-631024

Shaft, Float

Note: Included In Repair Kit, P/N TC-632347

$1.99

$

In Stock, Qty 17

0

28

Cub Cadet TC-632019

Float
(Superseded to TC-632019A)

$7.49

$

In Stock, Qty 6

0

29

Cub Cadet TC-631028

O-Ring, Float Bowl to Body
(Superseded to TC-631028A)

Note: Included In Repair Kit, P/N TC-632347

$2.49

$

In Stock, Qty 20+

0

30

Cub Cadet TC-631021

Inlet Needle, Seat & Clip
(Superseded to TC-631021B)

Note: (Incl. No. 31) ; Included In Repair Kit, P/N TC-632347

$6.99

$

In Stock, Qty 20+

0

31

Cub Cadet TC-631022

Spring Clip

$1.99

$

In Stock, Qty 7

0

32

Cub Cadet TC-27136A

Bowl Drain Ass'y.

$7.49

$

In Stock, only 1 left!

0

33

Cub Cadet TC-27554

Drain Plunger Gasket

$1.49

$

In Stock, Qty 20+

0

40

Cub Cadet TC-632239

Main Adj. Screw Ass'y.

Note: (Incl. Nos. 41 thru 44) ; Included In Repair Kit, P/N TC-632347

$14.99

$

In Stock, only 1 left!

0

41

Cub Cadet TC-630740

O-Ring, High Speed Mixture Screw

Note: Included In Repair Kit, P/N TC-632347

$2.49

$

In Stock, Qty 16

0

42

Cub Cadet TC-630739

Washer, High Speed Mixture Screw

$1.99

$

In Stock, Qty 17

0

43

Cub Cadet TC-630738

Tension Spring, High Speed Mixture Screw

$1.99

$

In Stock, Qty 12

0

44

Cub Cadet TC-27110

Bowl Nut Washer
(Superseded to TC-27110A)

Note: Included In Repair Kit, P/N TC-632347

$2.49

$

In Stock, Qty 20+

0

47

Cub Cadet TC-630748

Welch Plug, Idle Mixture Well

Note: Included In Repair Kit, P/N TC-632347

$1.99

$

In Stock, Qty 9

0

48

Cub Cadet TC-631027

Welch Plug, Atmospheric Vent

Note: Included In Repair Kit, P/N TC-632347

$1.99

$

In Stock, Qty 10

0

60

Cub Cadet TC-632347

Repair Kit

Note: Includes Ref Nos 20, 23, 27, 29, 30, 40, 41, 44, 47 & 48

$20.99

$

In Stock, Qty 10

0

Cub Cadet TC-632334A

Carburetor Comp.

$136.99

$

In Stock, only 1 left!

0
