826 4x4 (31AH4G3F100) - Cub Cadet 26" Snow Thrower (2000) Chain Case & Wheels Parts Diagram

26" Snow Thrower

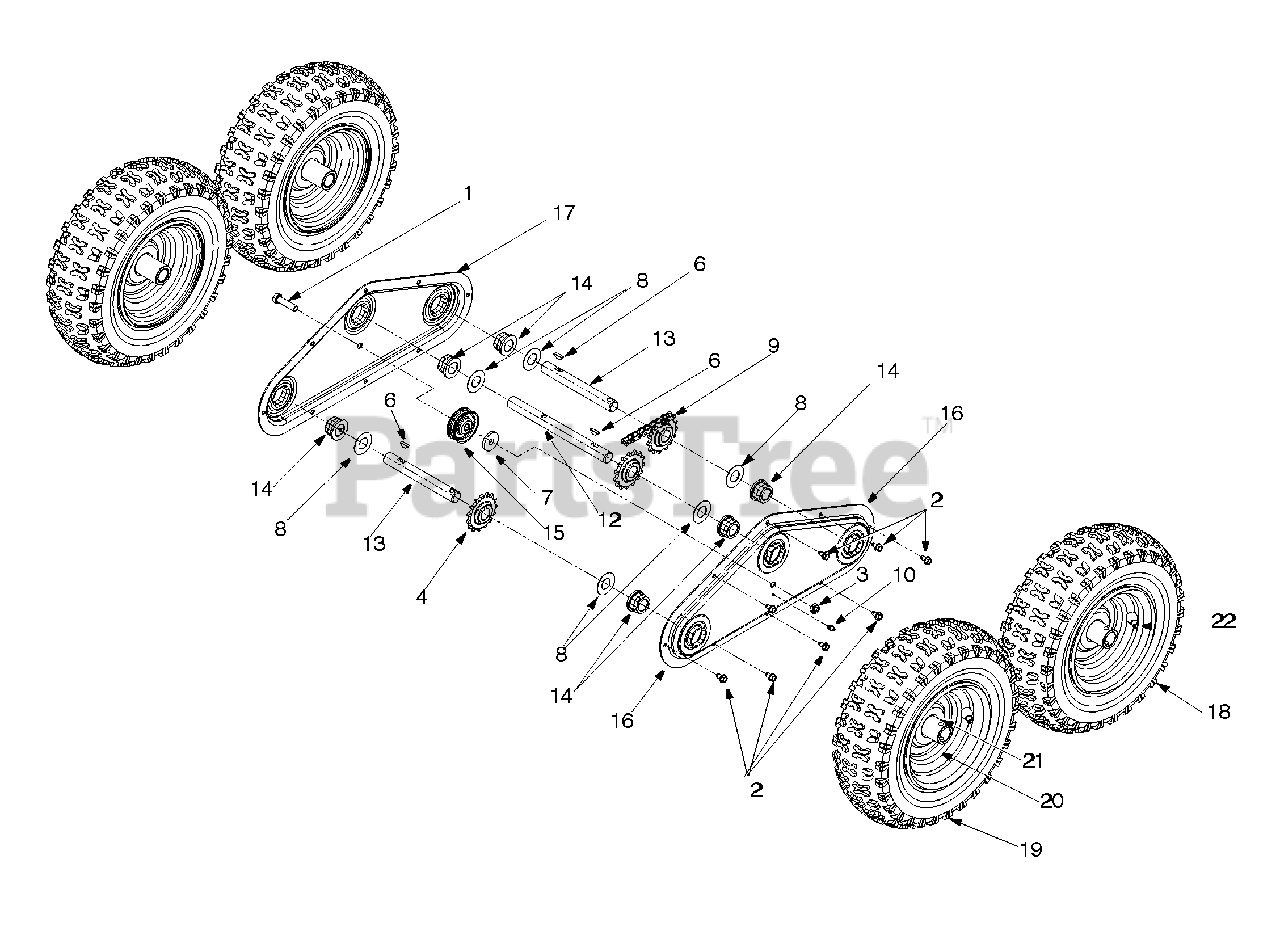

Chain Case & Wheels Parts Diagram

  • Title

1

Cub Cadet 710-0459A

Special Hex Screw: 3/8-24 x 1.5"

$6.99

$

In Stock, Qty 10

0

2

Cub Cadet 710-0599

TT Screw: 1/4-20 x 0.5"

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-0116

Jam Nut

$4.49

$

In Stock, Qty 7

0

4

Cub Cadet 713-0491

Sprocket

$

$

Not available

?5

Cub Cadet 713-0492

Chain

$

$

Not available

6

Cub Cadet 714-0161

Key
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 11

0

7

Cub Cadet 736-0235

Flat Washer
(Superseded to 736-0247)

$8.99

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0351

Flat Washer

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 737-0170

Lubricant: 6in 1

$

$

Currently unavailable

10

Cub Cadet 737-3000

Lube Fitting
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

?11

Cub Cadet 737-3007

Grease

Note: (Not shown)

$

$

Currently unavailable

12

Cub Cadet 738-1135

Drive Axle

$

$

Not available

13

Cub Cadet 738-1136

Wheel Axle

$

$

Not available

14

Cub Cadet 741-0598

Hex Flange Bearing
(Superseded to 941-0598)

$11.99

$

In Stock, Qty 20+

0

15

Cub Cadet 756-0313

Flat Idler

$24.99

$

In Stock, Qty 7

0

16

Cub Cadet 784-0400

Chain Case: Outer

Variations

Cub Cadet 784-0400-0637

CHAIN CASE: OUTER - POWDER BLACK (0637)

$

$

Not available

$

$

17

Cub Cadet 784-0401

Chain Case: Inner

Variations

Cub Cadet 784-0401-0637

CASE-INNER - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 634-0195

Complete Wheel Assembly:

Note: (Includes items 19-22)

Variations

Cub Cadet 634-0195-0911

WHEEL ASSEMBLY (13 x 4 x 6) (OYSTER/CARLISLE) - Carlisle Gray (0911)

$

$

Not available

Cub Cadet 634-0195-0931

WHEEL ASSEMBLY (13 x 4 x 6) (BEIGE/CARLISLE) - Carlisle Beige (0931)

$

$

Not available

$

$

19

Cub Cadet 734-1732

Tire Assembly

Variations

Cub Cadet 734-1732-0901

TIRE:SNOW HOG 13X4 - Carlisle (0901)

$139.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1732-0904

USE 734-1732-0901 TIRE:SNOW H - Cheng (0904)

$139.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1732-0905

USE 734-1732-0901 TIRE:SNOW H - Duro (0905)

$139.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 734-1735

Rim Assembly

Variations

Cub Cadet 734-1735-0499

RIM ASSEMBLY 6X3.25 .8 - CUB BEIGE (0499)

$

$

Not available

$

$

21

Cub Cadet 741-0401

Bearing
(Superseded to 941-0401)

$6.99

$

In Stock, Qty 14

0

22

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0
